UHF On-Metal RFID LED Tag IDTS-8020-LED (80 × 20 mm)
An 80 × 20 mm on-metal UHF PCB tag with a green LED in the centre that lights when the tag is read, for finding the right rack location, tool or cabinet at a glance.
₹89
per piece + 18% GST
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 176 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request
Key features
- Centre green LED lights when read, visible from approx. 2 m
- Anti-metal PCB design, approx. 6 m read range on metal
- 80 × 20 × 2.5 mm bar with a 4 mm hole at each end, 74 mm apart
- KX2005X-BL chip with 1312-bit user memory
- Operating temperature −20 °C to +150 °C
- Frequency
- 860–960 MHz (covers India's 865–868 MHz band)
- Protocol
- ISO 18000-6C
- Chip
- KX2005X-BL
- Read range
- Approx. 6 m on metal (depends on reader)
Overview
What the IDTS-8020-LED on-metal LED RFID tag adds

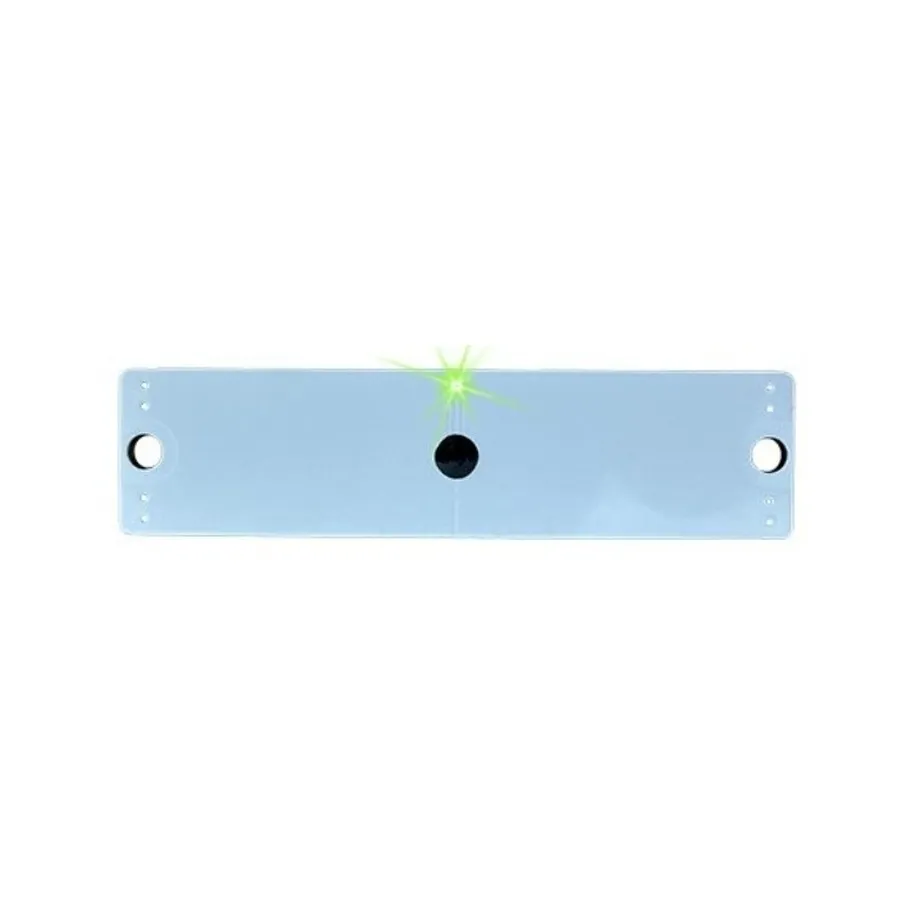

A long aisle of steel racking has dozens of near-identical bin locations. Fixed to a beam or upright, the IDTS-8020-LED shows a picker or auditor which location the reader has found: the green LED in the centre of the board lights when the tag is read and can be seen from about 2 m.
An 80 mm bar made for metal
The tag is an anti-metal PCB design, so it goes directly onto racking, tool boards, cylinder cages and cabinet frames, and reads at approx. 6 m on metal. The 80 × 20 mm footprint suits a beam face or upright, and at 2.5 mm overall it adds little depth. A 4 mm hole at each end, 74 mm apart, takes a screw or rivet so the tag stays with its location.
Memory and range notes
The KX2005X-BL chip has a 96–240-bit EPC, a 96-bit TID and 1312 bits of user memory for a location code, zone or last-audit date. The 2 m figure is how far the LED can be seen, not the read distance. Rated −20 °C to +150 °C. For warehouse workflows, see RFID in logistics and supply chain, or browse PCB and ceramic RFID tags.
Typical applications
- Racking bin locations
- Pick and put-away checks
- Metal tool boards
- Cylinder cages
- Server rack frames
- Control panels
Specifications

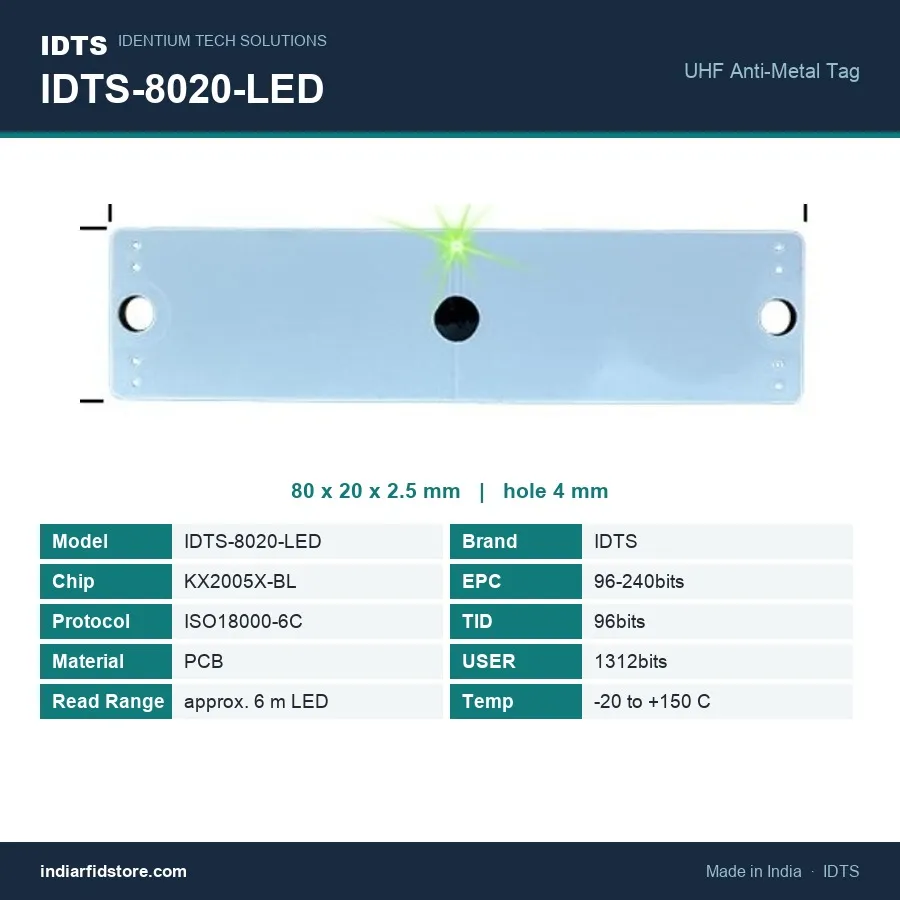

Datasheet (PDF)| Frequency | 860–960 MHz (covers India's 865–868 MHz band) |
|---|---|
| Protocol | ISO 18000-6C |
| Chip | KX2005X-BL |
| Memory | EPC 96–240 bits; TID 96 bits; user 1312 bits |
| Read range | Approx. 6 m on metal (depends on reader) |
| LED indicator | Green, centre of board; lights when read, visible from approx. 2 m |
| Dimensions | 80 × 20 × 2.5 mm (2.5 mm at the highest point; board 1.6 mm) |
| Material | PCB |
| Mounting | Two 4 mm holes, one at each end, 74 mm apart |
| Mounting surface | Metal (anti-metal design) |
| Shape | Rectangular bar with a central LED |
| Colour | Light blue PCB |
| Operating temperature | −20 °C to +150 °C |
Frequently asked questions
Why does the IDTS-8020-LED have a green LED?
Does it work on metal surfaces?
How is it mounted?
How do I light the LED on one specific tag?
What is the difference from the IDTS-8020?
