UHF On-Metal RFID PCB Tag IDTS-1907 (19 × 7 × 4 mm, Two-Hole Mount)
A 19 × 7 × 4 mm UHF on-metal PCB bar with rounded ends and two 2.3 mm fixing holes at a 15 mm pitch, reading approx. 2.5 m on metal, for jigs, fixtures, tools and equipment parts.
₹89
per piece + 18% GST
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 180 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request
Key features
- Approx. 2.5 m read range on metal
- Two 2.3 mm holes at 15 mm centres, plus four small corner holes
- 19 × 7 × 4 mm bar with rounded ends
- U8 chip on ISO 18000-6C, 128-bit EPC, 96-bit TID
- Rated −20 °C to +150 °C
- Frequency
- 860–960 MHz (covers India's 865–868 MHz band)
- Protocol
- ISO 18000-6C
- Chip
- U8
- Read range
- Approx. 2.5 m on metal
Overview
A two-hole on-metal UHF RFID tag with a known drilling pattern

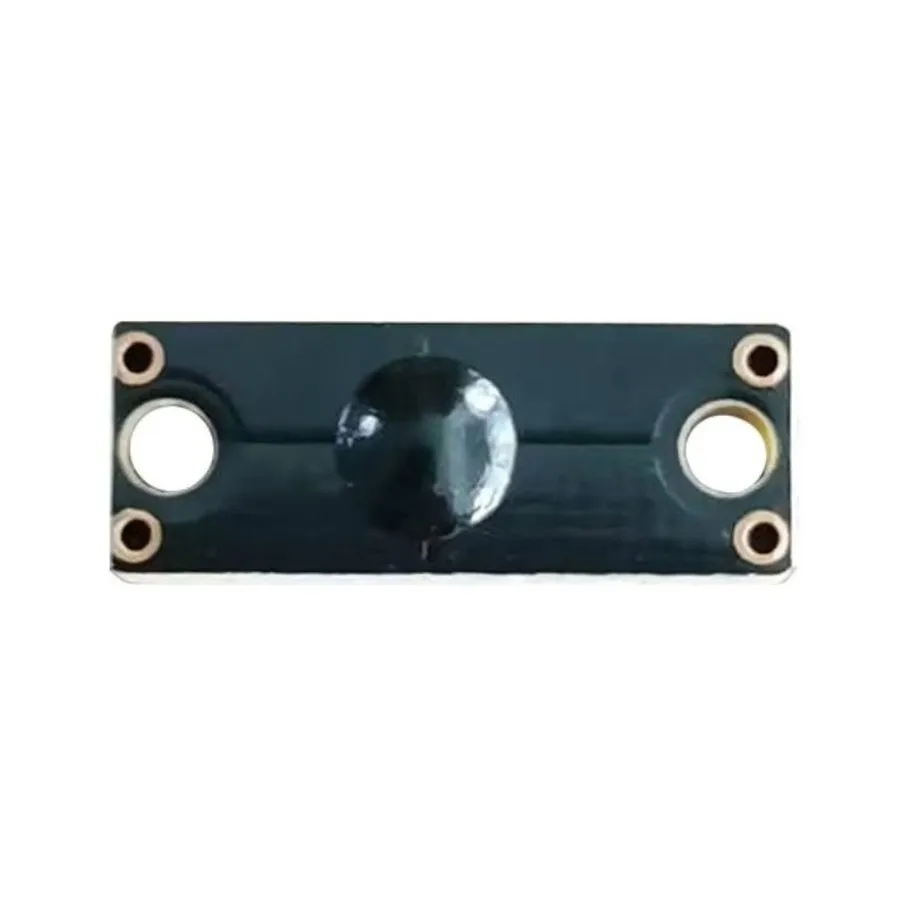

The IDTS-1907 is a 19 × 7 mm PCB bar with rounded ends, 4 mm at its highest point, with an epoxy dome over the chip. Its two main holes are 2.3 mm in diameter and 15 mm apart, centre to centre. With those two figures a toolroom can mark out and drill a matching pattern on a jig, die or fixture before the tags arrive, so fitting is a two-screw job.
Read range for fixed and handheld reading
The quoted read distance is approx. 2.5 m on metal, the same as the smaller 13 × 7 mm IDTS-1307. Choose the IDTS-1907 when you want the documented hole pitch and a longer body; choose the IDTS-1307 when the mounting face is shorter than 19 mm. At 2.5 m, a fixed antenna at a machine changeover point, or a handheld pass along a fixture rack, can confirm which tool is in place.
Extra fixing points
Four small copper-ringed holes at the corners give extra options, such as locking wire or small pins on a tool that sees vibration. The U8 chip carries a 128-bit EPC for your tool number and a 96-bit factory TID. Read and encode it with any ISO 18000-6C UHF handheld, and see how to choose on-metal tags if your assets need a larger tag.
Typical applications
- Jigs and fixtures
- Moulds and dies
- Torque wrenches and air tools
- Valve bodies and fittings
- Switchgear components
- Assembly carriers

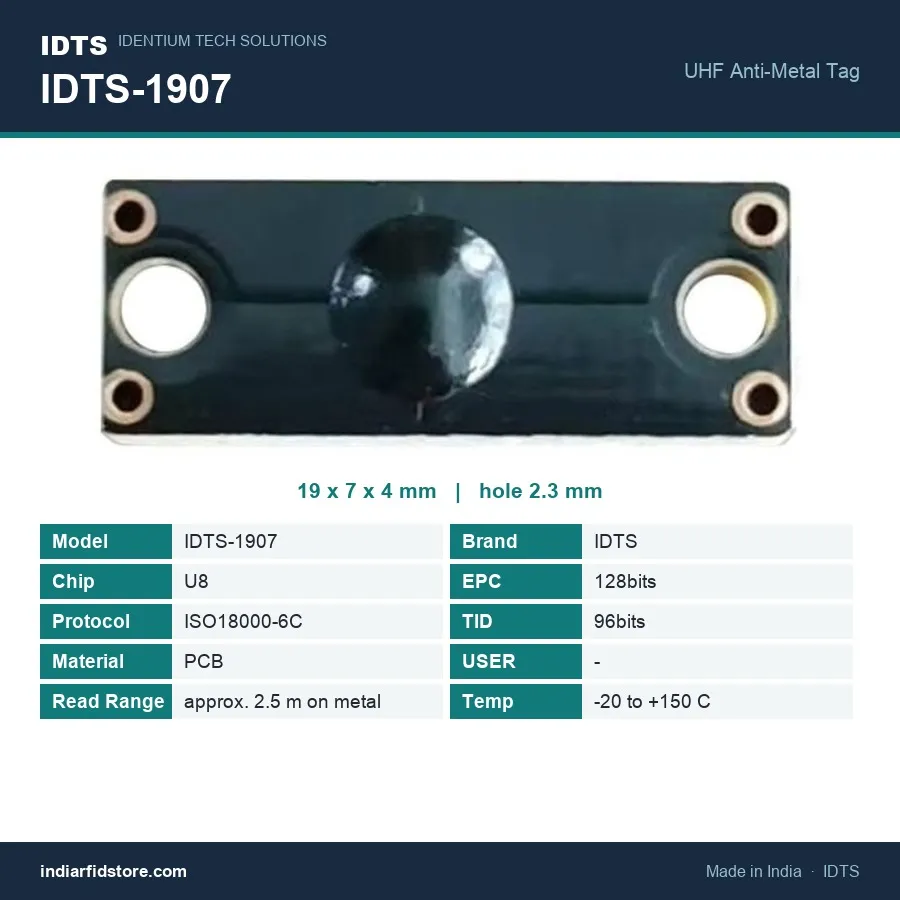

Specifications
Datasheet (PDF)| Frequency | 860–960 MHz (covers India's 865–868 MHz band) |
|---|---|
| Protocol | ISO 18000-6C |
| Chip | U8 |
| Memory | EPC 128 bits; TID 96 bits |
| Read range | Approx. 2.5 m on metal |
| Dimensions | 19 × 7 × 4 mm (4 mm at the highest point) |
| Material | PCB with epoxy-encapsulated chip |
| Mounting | Two 2.3 mm through-holes at 15 mm centre-to-centre; four small copper-ringed corner holes |
| Colour | Dark green/black PCB with black epoxy dome |
| Operating temperature | −20 °C to +150 °C |
Frequently asked questions
Does the IDTS-1907 work on metal tools and fixtures?
What hole size and spacing does it have?
Should I choose the IDTS-1907 or the IDTS-1307?
Can I order it pre-encoded?
