UHF On-Metal RFID PCB Tag IDTS-7020 (70 × 20 mm, Brass Grommets)

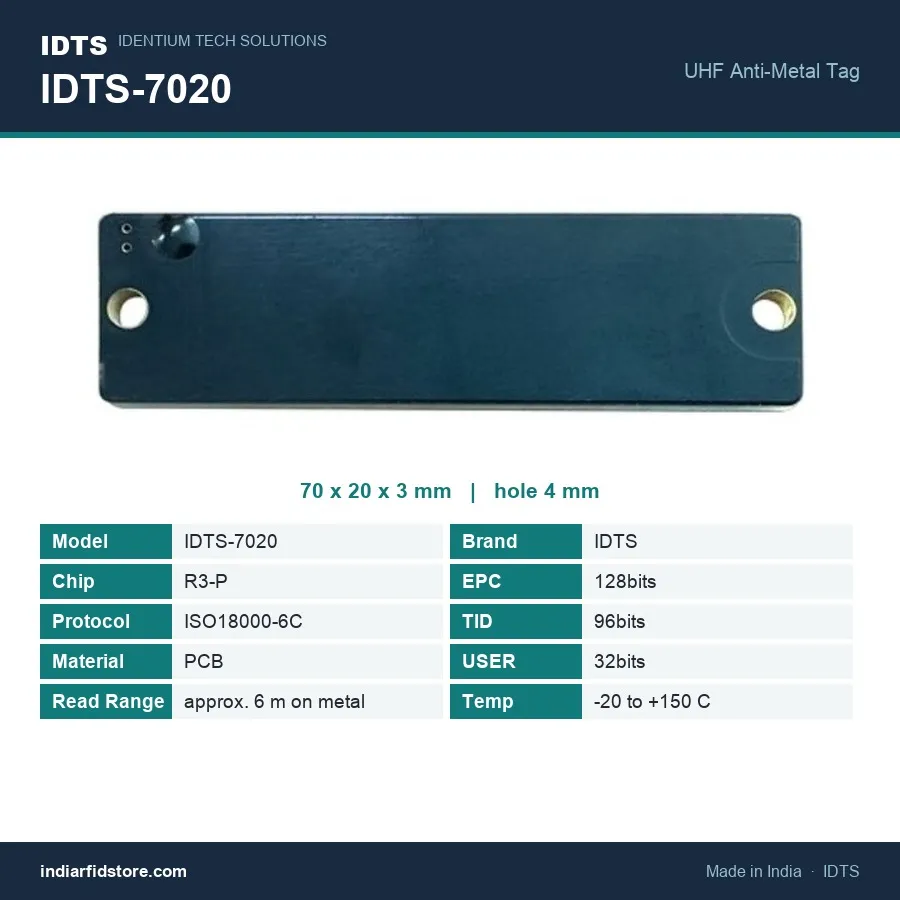

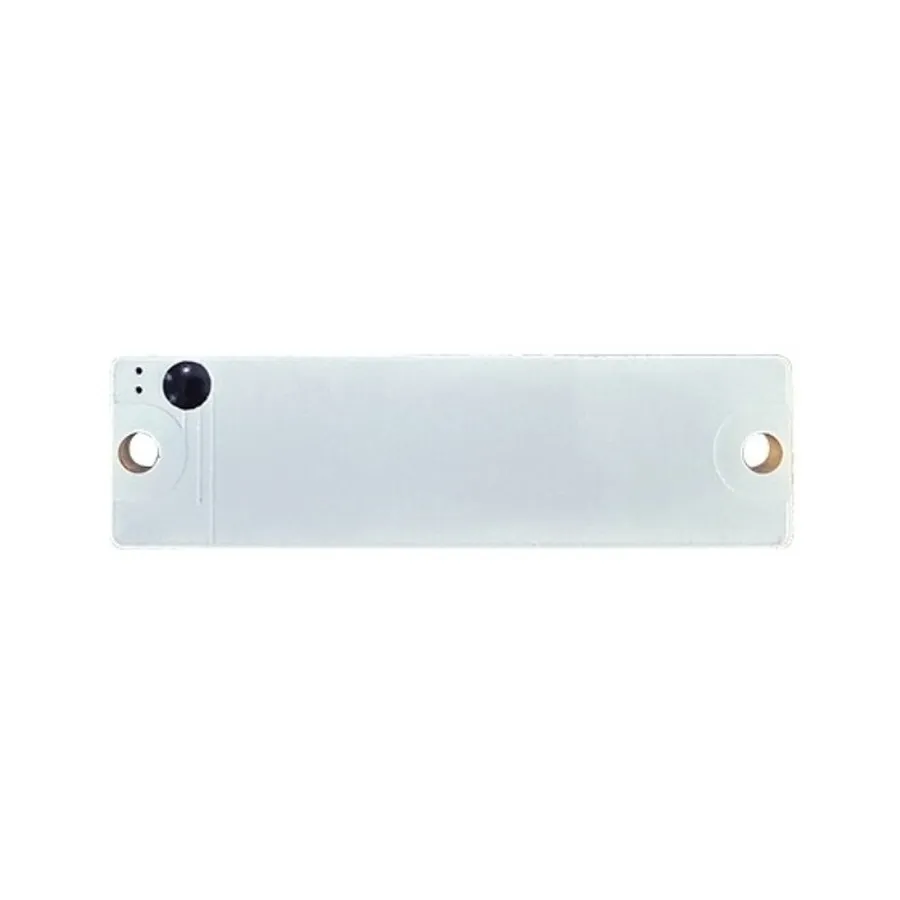

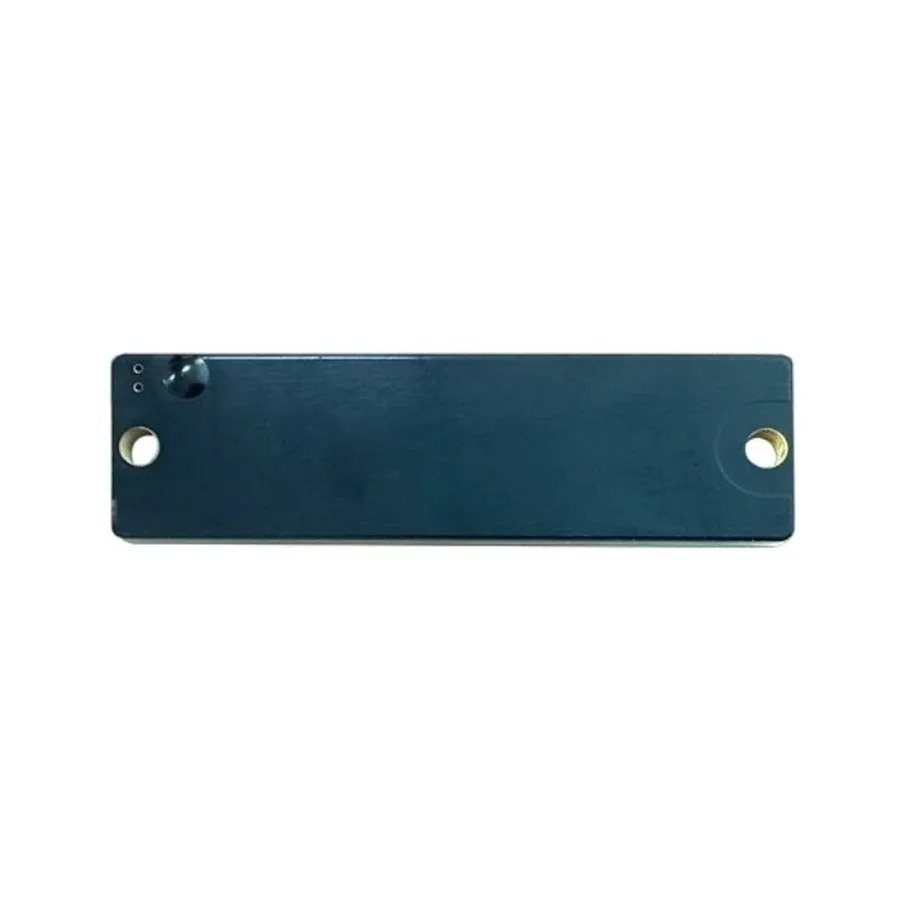

A 70 × 20 × 3 mm anti-metal UHF PCB bar with a brass-grommet hole at each end, made to bolt onto cylinders, racking and machinery and read at approx. 6 m on metal.
₹89
per piece + 18% GST
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 177 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request
Key features
- Brass-grommet 4 mm holes at each end, 64 mm centre to centre
- Anti-metal PCB design, approx. 6 m read range on metal
- 70 × 20 × 3 mm dark navy bar with rounded corners
- R3-P chip: 128-bit EPC, 96-bit TID, 32-bit user memory
- Operating temperature −20 °C to +150 °C
- Frequency
- 860–960 MHz (covers India's 865–868 MHz band)
- Protocol
- ISO 18000-6C
- Chip
- R3-P
- Read range
- Approx. 6 m on metal (depends on reader)
Overview
A bolt-on anti-metal RFID tag with brass-grommet holes
The IDTS-7020 is a 70 × 20 × 3 mm PCB bar for metal assets that get knocked, vibrated and handled every day. What sets it apart is the fixing: each end has a 4 mm hole lined with a brass grommet, so the bolt or rivet seats against a metal eyelet rather than bare board. The holes are 64 mm apart centre to centre.
Where a 70 mm bar fits
A 20 mm wide bar lies along a gas cylinder collar or foot ring, a pallet-racking beam, a valve body or a die block. On racking, one tag per bay or beam lets a handheld confirm put-away and pick locations. On cylinders, the tag stays fixed through filling, dispatch and return; our guide to RFID gas cylinder tracking covers the workflow.
Reading and encoding
Mounted on metal it reads at approx. 6 m. The R3-P chip on ISO 18000-6C provides a 128-bit EPC for your serial or location code, a 96-bit TID and 32 bits of user memory. The −20 °C to +150 °C operating range lets it stay on tooling that comes back warm from presses or ovens.
Compare other sizes in PCB and ceramic RFID tags.
Typical applications
- Gas cylinder collars
- Pallet racking beams
- Tools, dies and moulds
- Valves and flanges
- Meter boxes and panels
- Railway depot parts
Specifications
Datasheet (PDF)| Frequency | 860–960 MHz (covers India's 865–868 MHz band) |
|---|---|
| Protocol | ISO 18000-6C |
| Chip | R3-P |
| Memory | EPC 128 bits; TID 96 bits; user 32 bits |
| Read range | Approx. 6 m on metal (depends on reader) |
| Dimensions | 70 × 20 × 3 mm (3 mm board thickness) |
| Material | PCB |
| Mounting | Two brass-grommet holes, 4 mm diameter, 64 mm centre to centre |
| Mounting surface | Metal (anti-metal design) |
| Shape | Rectangular bar with rounded corners |
| Colour | Dark navy PCB with brass eyelets |
| Operating temperature | −20 °C to +150 °C |
Frequently asked questions
What surfaces is the IDTS-7020 designed for?
What read range can I expect on metal?
Why does it have brass grommets?
Can it stay on hot equipment?
Where should it go on a gas cylinder?
