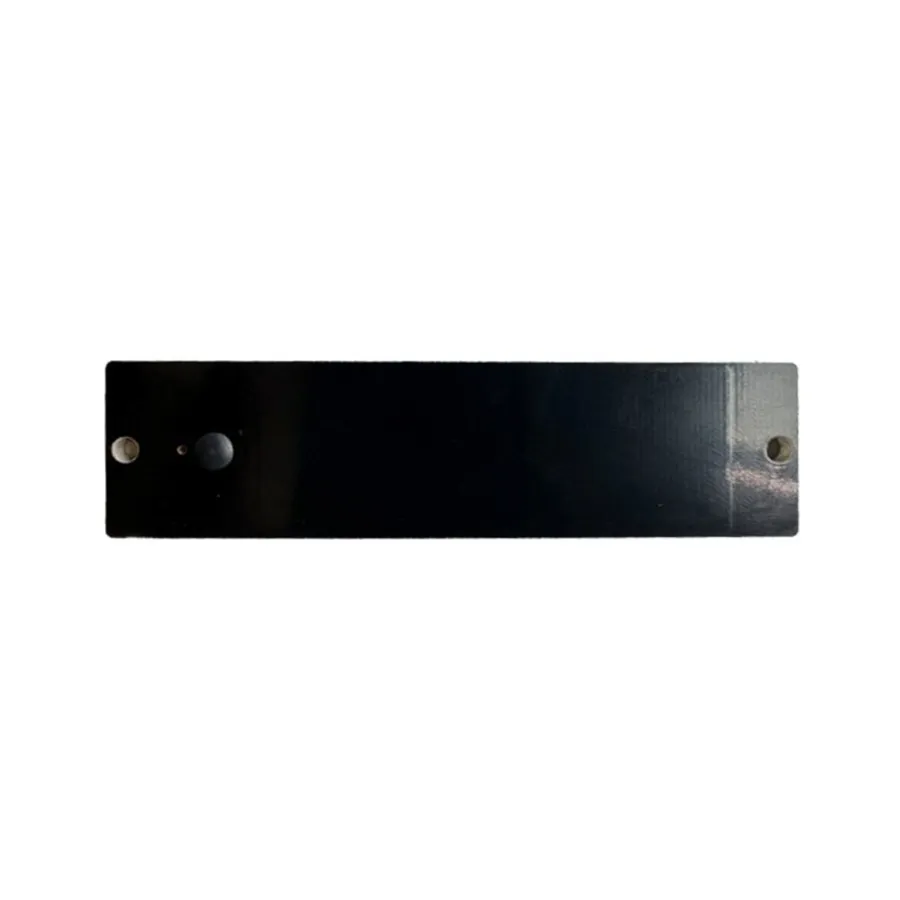

UHF On-Metal RFID Tag IDTS-9525 (95 × 25 × 4 mm PCB Bar)
A 95 × 25 × 4 mm black PCB on-metal UHF tag with a mounting hole at each end, listed at about 8 m on metal. For racking, gas cylinders and industrial equipment that need a permanent bolted-on ID.
₹89
per piece + 18% GST
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 174 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request
Key features
- Approx. 8 m read range on metal
- 95 × 25 × 4 mm bar with a 3.5 mm hole at each end, 89 mm apart
- U8 chip on ISO 18000-6C: 128-bit EPC, 96-bit TID, no user memory
- Rated for −20 °C to +150 °C
- Black PCB body for screw or rivet fixing
- Frequency
- 860–960 MHz (covers India’s 865–868 MHz band)
- Protocol
- ISO 18000-6C
- Chip
- U8
- Read range
- Approx. 8 m on metal (depends on reader and mounting)
Overview
A wide-face UHF on-metal RFID tag for heavy equipment
The IDTS-9525 gives you a little more body than the 90 mm bars: 95 mm long, 25 mm wide and 4 mm at the highest point. It is an anti-metal PCB tag made to sit directly on steel and is listed at approximately 8 m on metal. That suits assets read from a distance, such as racking uprights, cylinder collars and large machine frames.
Plan the brackets before the tags arrive
Each end has a 3.5 mm hole, and the hole centres are 89 mm apart. This pitch is different from the 84 mm used on the IDTS-9010 and IDTS-9020 bars, so check any existing drilling or bracket design before switching between models. Use screws or rivets sized for a 3.5 mm hole.
ID on the tag, data in your software
The U8 chip has a 128-bit EPC bank for your asset or location number and a 96-bit TID set at the factory. There is no user memory, so inspection dates, owners and history live in your WMS or asset register, keyed to the EPC. That is how most RFID fixed-asset audits are run anyway. Compare other sizes across the PCB and ceramic tag range.
Typical applications
- Warehouse racking
- Gas and LPG cylinders
- Server and UPS cabinets
- Dies and moulds
- Distribution boards
- Trolleys and stillages

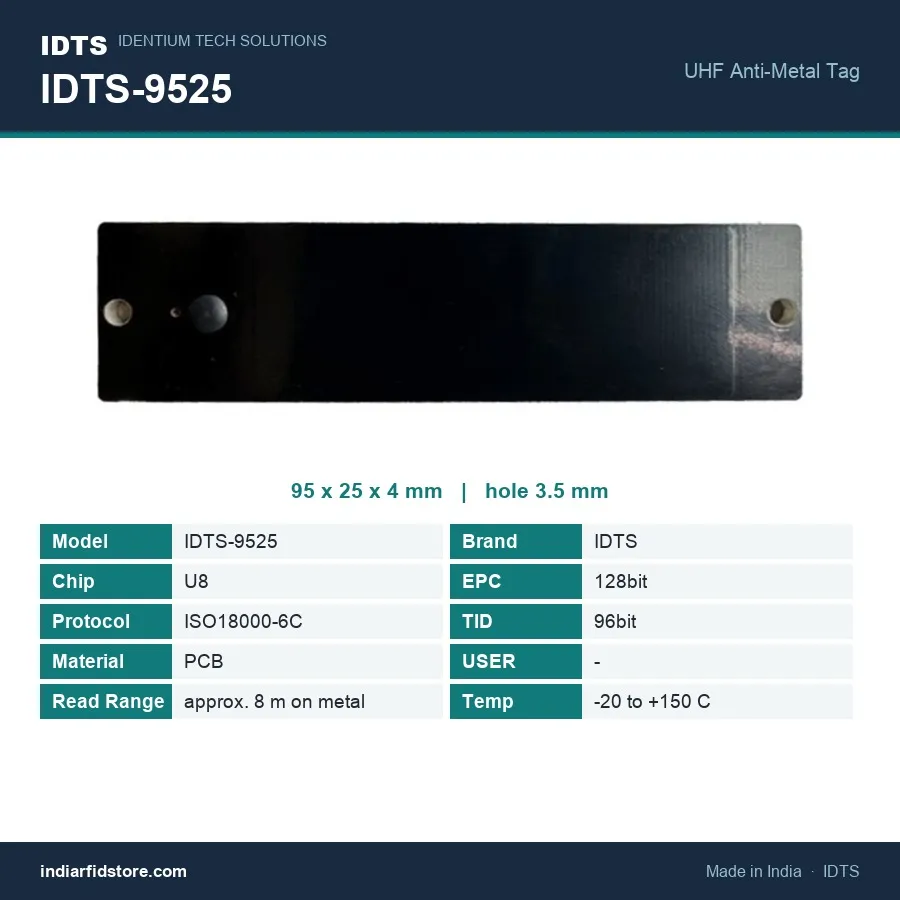

Specifications
Datasheet (PDF)| Frequency | 860–960 MHz (covers India’s 865–868 MHz band) |
|---|---|
| Protocol | ISO 18000-6C |
| Chip | U8 |
| Memory | EPC 128 bits; TID 96 bits; no user memory |
| Read range | Approx. 8 m on metal (depends on reader and mounting) |
| Dimensions | 95 × 25 × 4 mm (thickness at highest point) |
| Material | PCB |
| Mounting | Two 3.5 mm holes, one at each end, 89 mm apart |
| Colour | Black |
| Operating temperature | −20 °C to +150 °C |
Frequently asked questions
What read range does the IDTS-9525 give?
Can I store inspection data on the tag?
What are the hole size and spacing?
Will it survive hot plant areas?
Which reader works with the IDTS-9525?
