UHF RFID Stud-Mount Tag IDTS-7024 (70 × 24 mm, M3 Thread)
A 70 × 24 mm UHF RFID tag in a metal alloy, PCB and epoxy body that fixes with an M3 screw into its underside stud. Rated −40 °C to +200 °C and specified for burial in the ground.
₹89
per piece + 18% GST
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 179 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request
Key features
- Central underside stud with M3 internal thread; no through-holes
- Metal alloy housing, PCB inlay and epoxy resin potting
- Specified as designed for burial in the ground
- Operating temperature −40 °C to +200 °C
- NXP UCODE 8, ISO 18000-6C, 128-bit EPC, 96-bit TID
- Approx. 4 m read range, depending on the reader
- Frequency
- 860–960 MHz (covers India's 865–868 MHz band)
- Protocol
- ISO 18000-6C
- Chip
- NXP UCODE 8
- Read range
- Approx. 4 m (depends on reader)
Overview
What the IDTS-7024 stud-mount RFID tag is built for

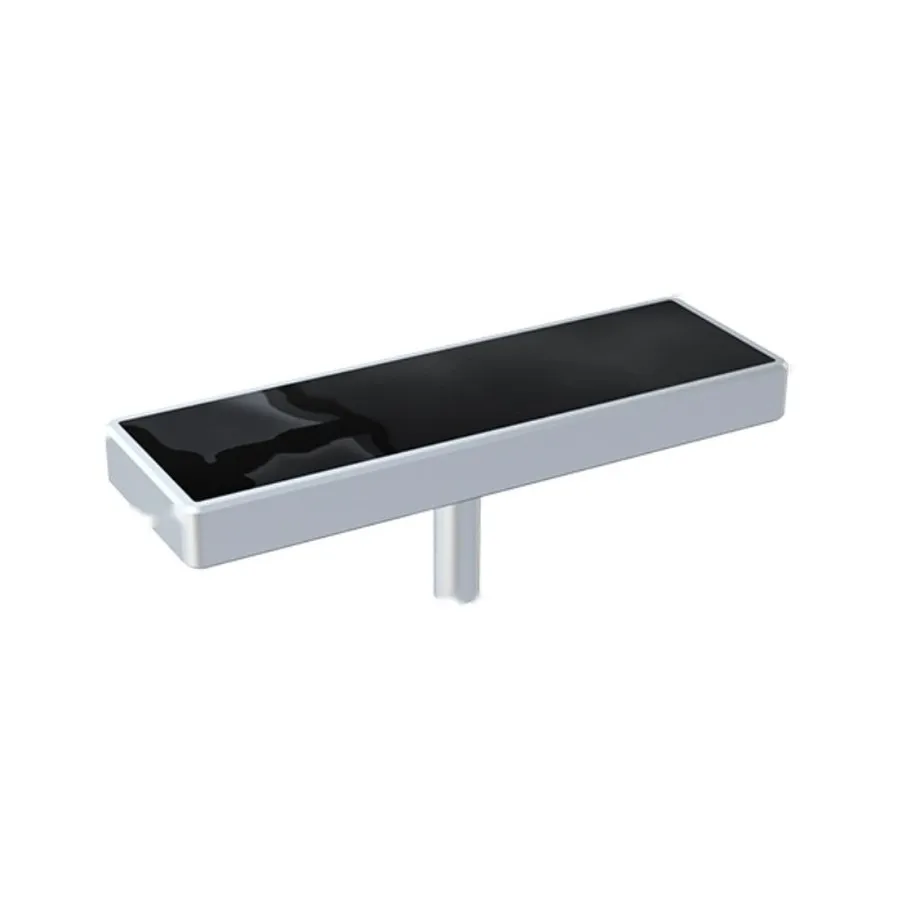

Most hard tags bolt through holes in their face. The IDTS-7024 fixes from underneath: a central stud on the base carries an M3 internal thread, so a single M3 screw secures it and nothing protrudes from the top face. The 70 × 24 × 7 mm body is a metal alloy housing with a PCB inlay potted in epoxy resin, finished with a glossy black epoxy top. Total height with the stud is 18 mm.
Underground and high-temperature use
The construction is specified as designed for burial in the ground, which makes it a candidate for marking buried valves, duct routes, cable joints and chamber positions that maintenance crews scan from the surface. No IP rating is stated, so trial it in your own soil and moisture conditions. The −40 °C to +200 °C operating range also covers outdoor plant and hot process fixtures.
Reading the tag
Read range is approx. 4 m, depending on the reader. Soil, water and burial depth weaken UHF signals, so confirm the working distance on site. The NXP UCODE 8 chip on ISO 18000-6C gives a 128-bit EPC and a 96-bit factory TID. The tag is not specified as anti-metal, so test it first if it will sit on a large steel surface. For field rounds, pair it with a UHF handheld reader.
Typical applications
- Buried utility markers
- Valve pits and chambers
- Cable joint marking
- Machine frames
- Hot process fixtures
- Trackside equipment

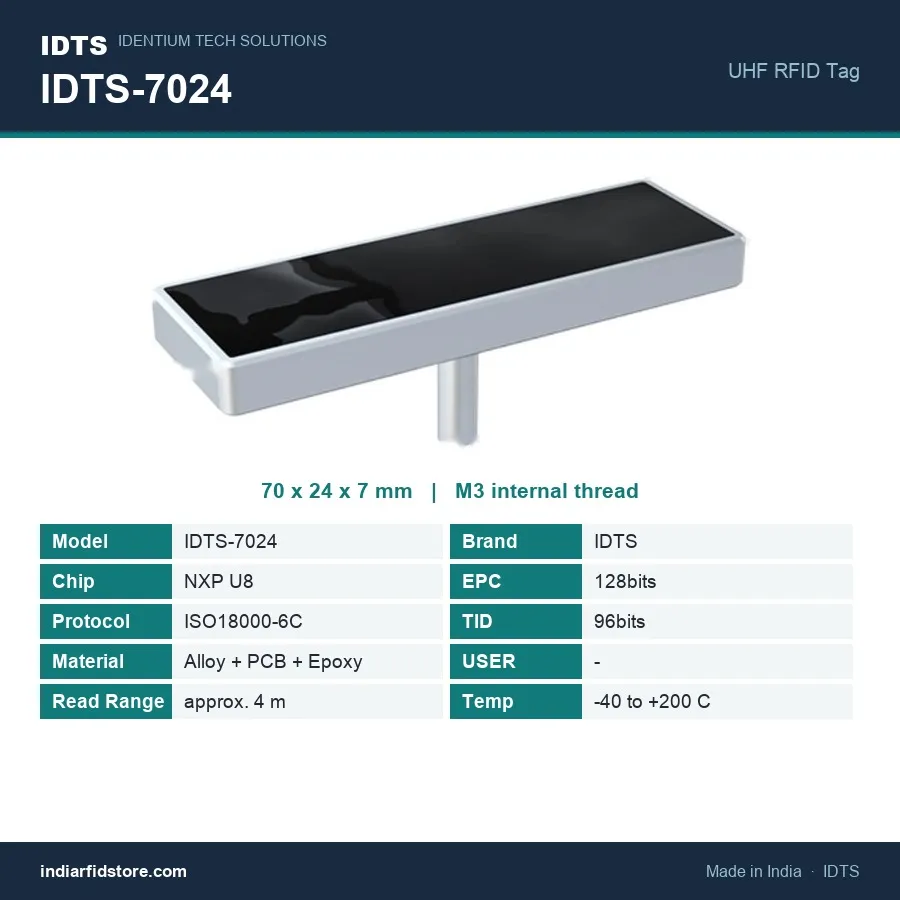

Specifications
Datasheet (PDF)| Frequency | 860–960 MHz (covers India's 865–868 MHz band) |
|---|---|
| Protocol | ISO 18000-6C |
| Chip | NXP UCODE 8 |
| Memory | EPC 128 bits; TID 96 bits |
| Read range | Approx. 4 m (depends on reader) |
| Dimensions | 70 × 24 × 7 mm body; 18 mm total height including stud |
| Material | Metal alloy, PCB and epoxy resin |
| Mounting | Central underside stud with M3 internal thread |
| Mounting surface | Not specified as anti-metal; test before fixing to large metal bodies |
| Shape | Rectangular bar with a central threaded stud underneath |
| Environment | Specified for burial in the ground; no IP rating stated |
| Colour | Silver metallic body, glossy black epoxy top |
| Operating temperature | −40 °C to +200 °C |
Frequently asked questions
How does the IDTS-7024 mount to an asset?
Can this tag be buried in the ground?
What temperature range does it handle?
Can it be fixed directly onto metal?
