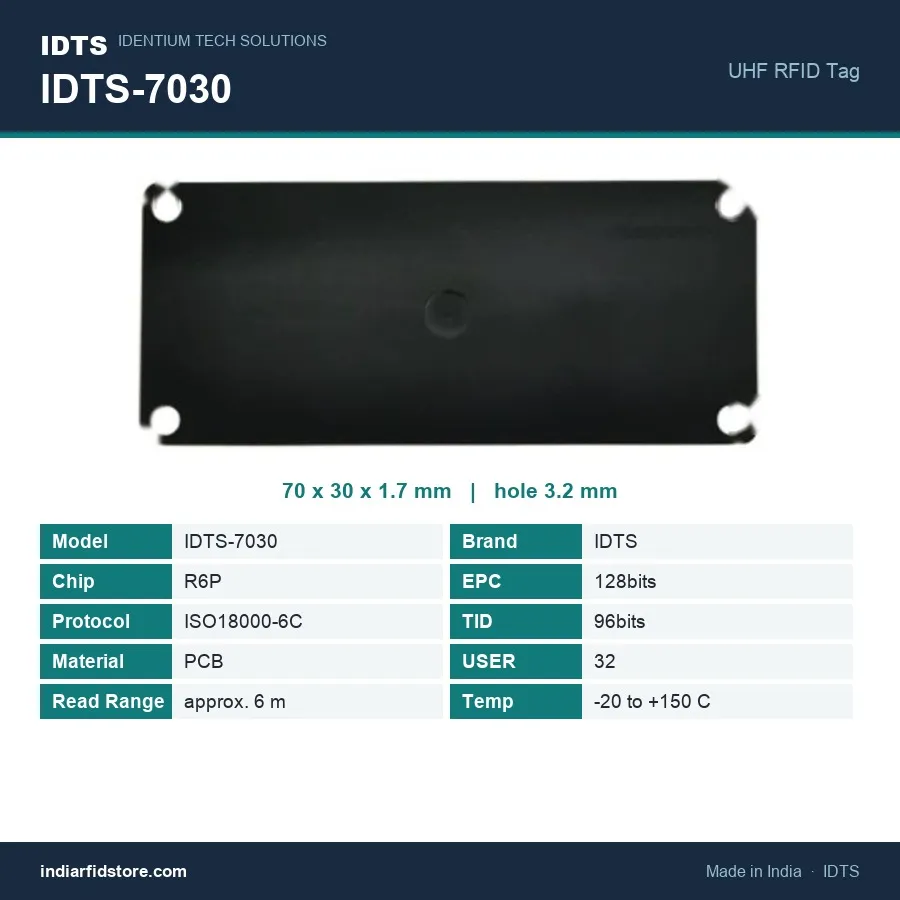

UHF RFID PCB Tag IDTS-7030 (70 × 30 mm, Four-Hole Mount)
A thin 70 × 30 mm UHF PCB tag with four corner holes for bolting or riveting to plastic crates, pallets, carriers and other non-metal assets. It reads at approx. 6 m.
₹89
per piece + 18% GST
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 175 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request
Key features
- Four 3.2 mm corner holes on 64 × 24 mm centres
- Thin 1.7 mm PCB plate, 70 × 30 mm with rounded corners
- Approx. 6 m read range on non-metal surfaces
- Impinj Monza R6-P: 128-bit EPC, 96-bit TID, 32-bit user memory
- Operating temperature −20 °C to +150 °C
- Not an anti-metal tag: for plastic, wood and composites
- Frequency
- 860–960 MHz (covers India's 865–868 MHz band)
- Protocol
- ISO 18000-6C
- Chip
- Impinj Monza R6-P
- Read range
- Approx. 6 m (depends on reader)
Overview
A four-hole UHF RFID PCB tag for non-metal assets

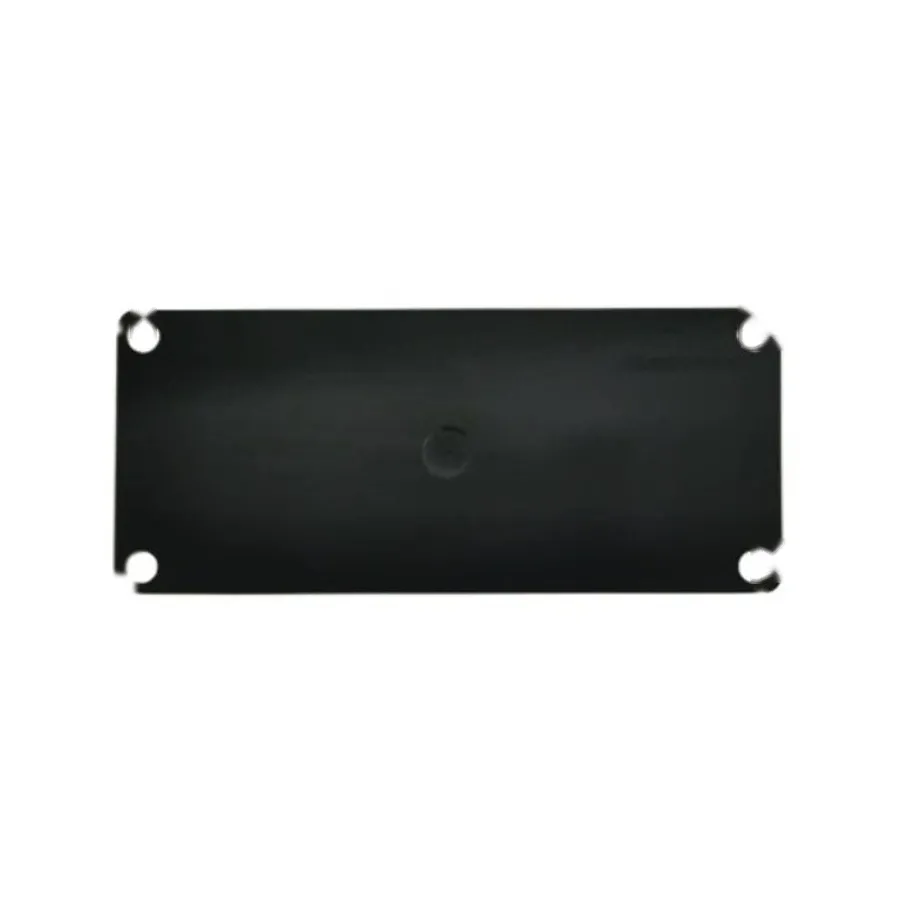

The IDTS-7030 is a 70 × 30 mm PCB plate only 1.7 mm thick, with a 3.2 mm hole in each corner on 64 × 24 mm centres. Four fixing points hold the plate flat against the surface, which helps on returnable crates, plastic pallets and carriers that are stacked, dropped and washed every cycle.
Plastic, wood and composites, not metal
This is not an anti-metal tag. It is meant for moulded plastic, timber, GRP and composite panels and polycarbonate enclosures. On those surfaces it reads at approx. 6 m, enough for dock-door portals and conveyor readers as well as handheld counts. If the asset is steel or aluminium, choose from the on-metal RFID tags instead.
Heat rating and data
The −20 °C to +150 °C rating lets the tag stay on jigs and carriers in warm process areas, provided temperatures stay within +150 °C. The Impinj Monza R6-P chip on ISO 18000-6C provides a 128-bit EPC, a 96-bit TID and 32 bits of user memory. For crate and pallet tracking, see RFID in logistics and supply chain.
Typical applications
- Plastic crates and totes
- Plastic pallets
- Warm process carriers
- Composite panels
- Polycarbonate enclosures
- Plastic drums
Specifications
Datasheet (PDF)| Frequency | 860–960 MHz (covers India's 865–868 MHz band) |
|---|---|
| Protocol | ISO 18000-6C |
| Chip | Impinj Monza R6-P |
| Memory | EPC 128 bits; TID 96 bits; user 32 bits |
| Read range | Approx. 6 m (depends on reader) |
| Dimensions | 70 × 30 × 1.7 mm |
| Material | PCB |
| Mounting | Four corner holes, 3.2 mm diameter, on 64 × 24 mm centres |
| Mounting surface | Non-metal surfaces only (not an anti-metal tag) |
| Shape | Rectangular plate with rounded corners |

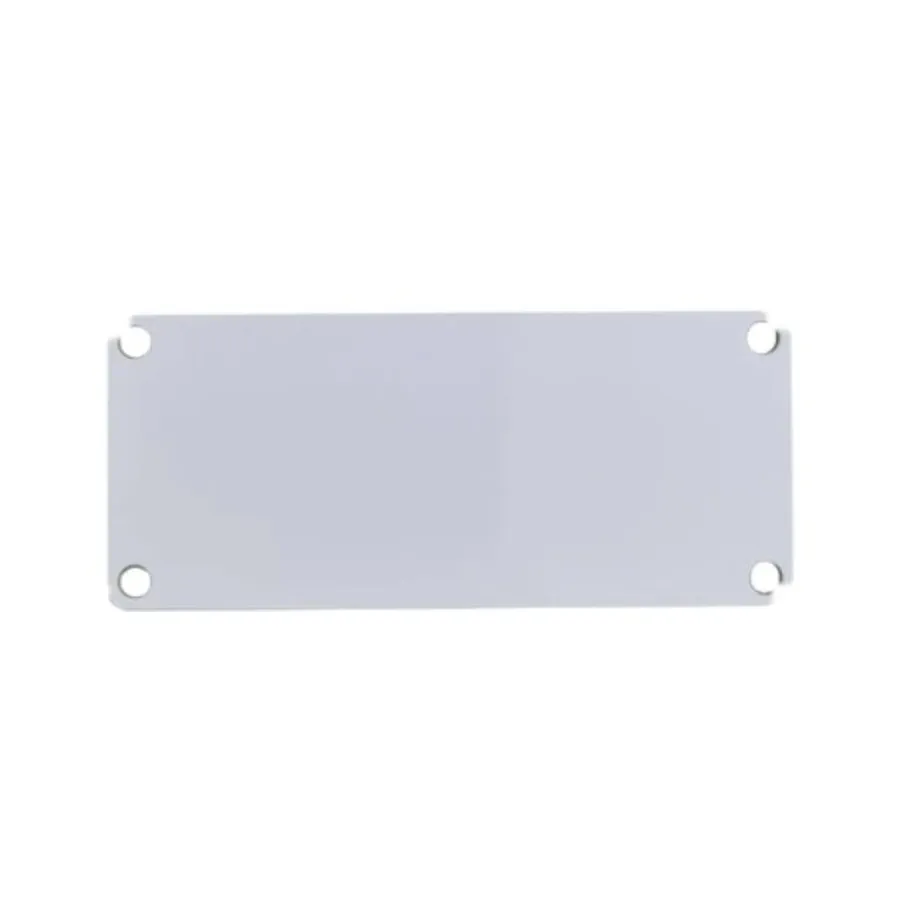

| Colour | Black front; white / light grey back |
| Operating temperature | −20 °C to +150 °C |
Frequently asked questions
Can the IDTS-7030 be mounted on metal?
How is the tag attached to an asset?
What temperatures can it handle?
Which frequency and chip does it use?
