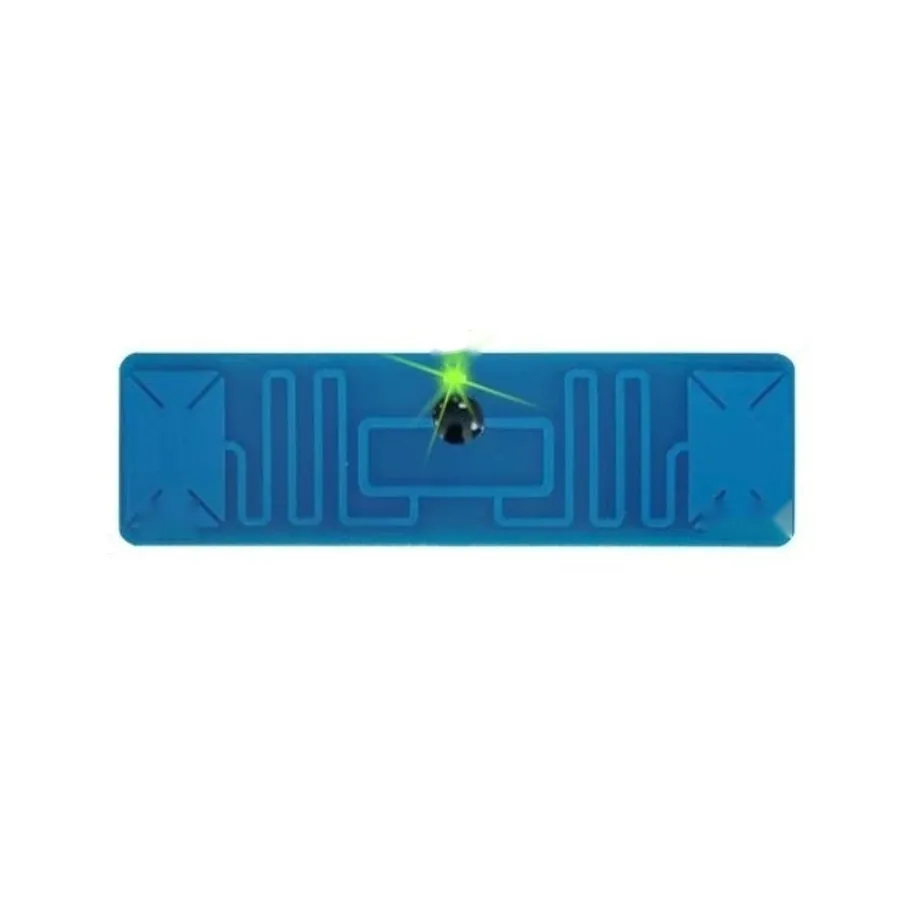

UHF RFID LED Indicator PCB Tag IDTS-7020-LED (70 × 20 mm)
A slim 70 × 20 mm blue PCB UHF tag with a green LED that lights when the tag is read. Use it on non-metal items and for checking read zones when setting up readers.
₹89
per piece + 18% GST
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 181 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request
Key features
- Green LED lights when read, visible from approx. 2 m
- Approx. 6 m read range on non-metal surfaces
- Slim 70 × 20 × 2 mm bar; 2 mm only at the LED dome
- KX2005X-BL chip with 1312-bit user memory
- Operating temperature −20 °C to +150 °C
- Not an anti-metal tag: for plastic, wood and cardboard
- Frequency
- 860–960 MHz (covers India's 865–868 MHz band)
- Protocol
- ISO 18000-6C
- Chip
- KX2005X-BL
- Read range
- Approx. 6 m (depends on reader)
Overview
What the IDTS-7020-LED UHF RFID LED tag is for
RF reads are invisible. The IDTS-7020-LED makes them visible: a green LED on the tag lights whenever a reader interrogates it, and the light can be seen from about 2 m. That makes it a practical tool for anyone setting up a dock-door portal, positioning antennas over a conveyor, or showing a warehouse team where reads actually happen.
For non-metal items only
Unlike the on-metal tags in this range, the IDTS-7020-LED is a standard PCB tag. Use it on plastic crates and totes, timber, cardboard or plastic-bodied equipment; a tag of this type loses range when placed directly on metal or liquid. No mounting holes or adhesive backing are specified, so plan a fixing that suits your surface, such as an industrial double-sided tape or a moulded label pocket.
Specifications in practice
The 70 × 20 mm blue PCB is only 2 mm thick at the LED dome, so it lies flat. Read range is approx. 6 m; the 2 m LED figure is a visibility distance, not a read limit. The KX2005X-BL chip has a 96–240-bit EPC, a 96-bit TID and 1312 bits of user memory, and the tag is rated for −20 °C to +150 °C.
Commissioning a portal? Our gate and portal reader guide covers antenna placement and read zones.
Typical applications
- Read-zone testing
- Portal commissioning
- RFID demos and training
- Plastic crates and totes
- Non-metal tool cases
- Plastic-bodied IT equipment

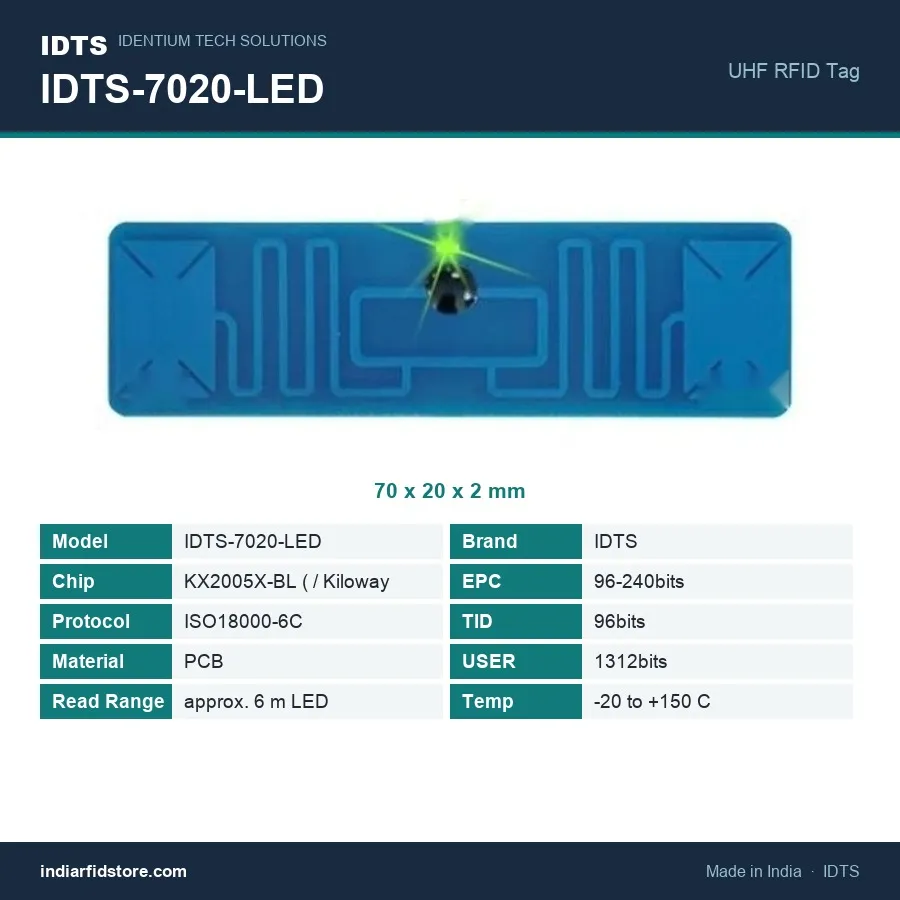

Specifications
Datasheet (PDF)| Frequency | 860–960 MHz (covers India's 865–868 MHz band) |
|---|---|
| Protocol | ISO 18000-6C |
| Chip | KX2005X-BL |
| Memory | EPC 96–240 bits; TID 96 bits; user 1312 bits |
| Read range | Approx. 6 m (depends on reader) |
| LED indicator | Green; lights when read, visible from approx. 2 m |
| Dimensions | 70 × 20 × 2 mm (2 mm at the LED dome) |
| Material | PCB |
| Mounting | No mounting holes or adhesive backing specified |
| Mounting surface | Non-metal surfaces only (not an anti-metal tag) |
| Shape | Rectangular bar with rounded corners |
| Colour | Blue PCB |
| Operating temperature | −20 °C to +150 °C |
Frequently asked questions
What does the LED on the IDTS-7020-LED do?
Can I use this tag on metal assets?
Is this the same as the IDTS-7020?
How do I attach it?
Which frequency does it use in India?
