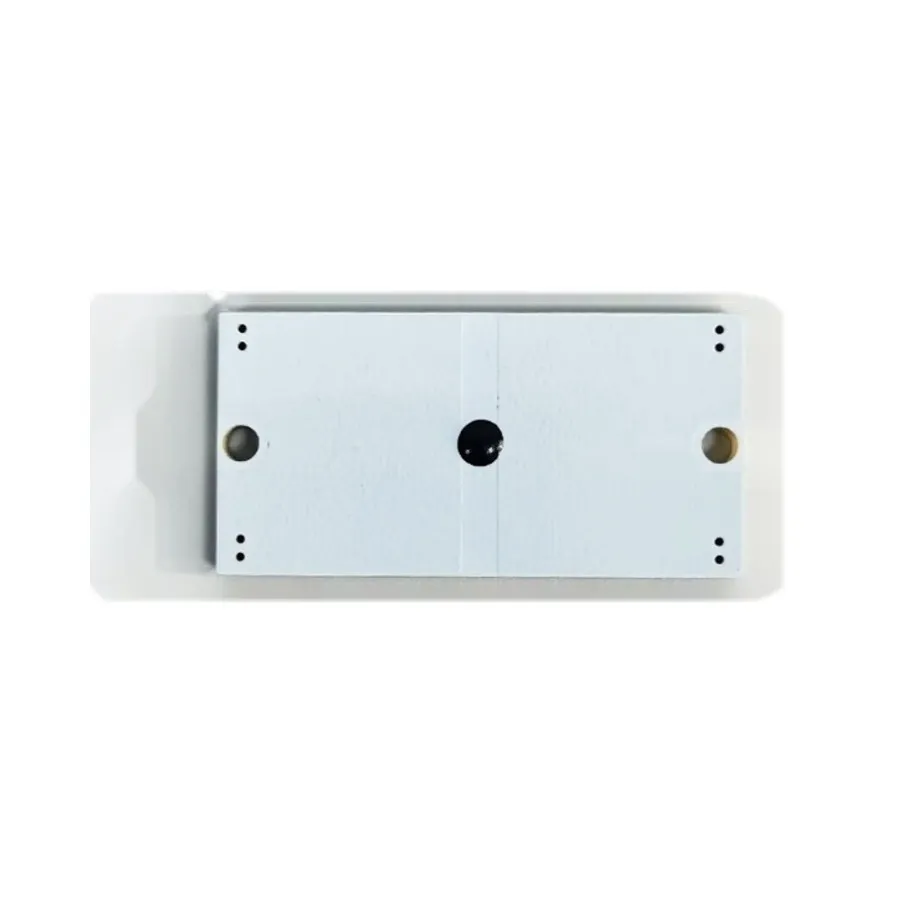

UHF On-Metal RFID PCB Tag IDTS-6030 (60 × 30 mm)
A 60 × 30 mm white PCB plate tag for metal assets, screwed or riveted in place and read at approx. 6 m on metal. It suits chassis faces, cabinet doors and equipment frames.
₹89
per piece + 18% GST
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 177 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request
Key features
- 60 × 30 × 4 mm rounded-corner plate sits flat on panels and frames
- Anti-metal design, approx. 6 m read range on metal
- Two 4 mm end holes 54 mm apart, plus a central hole
- Operating temperature −20 °C to +150 °C
- U8 chip, ISO 18000-6C, 128-bit EPC, 96-bit TID
- Frequency
- 860–960 MHz (covers India's 865–868 MHz band)
- Protocol
- ISO 18000-6C
- Chip
- U8
- Read range
- Approx. 6 m on metal (depends on reader)
Overview
A 60 × 30 mm on-metal RFID tag for broad, flat surfaces
The IDTS-6030 is a plate-format hard tag: 60 × 30 mm, 4 mm at its highest point, in white PCB with rounded corners. Its 30 mm width suits a broad flat face such as a cabinet door, a UPS chassis, a vessel frame or a cylinder cage, where it can lie fully flat without hanging over an edge.
Screw or rivet it in place
Fix the plate through the 4 mm holes at each end, which are 54 mm apart; a central hole is also provided. Because it is fastened rather than glued, the tag stays in the same spot for the life of the asset, which keeps repeat audits consistent from one year to the next.
Performance on metal
As an anti-metal design it is meant to sit directly on steel or aluminium, and it reads at approx. 6 m on metal. That is enough to sweep a row of cabinets or racking with a handheld instead of touching each item. The U8 chip on ISO 18000-6C gives a 128-bit EPC for your asset number and a 96-bit factory TID. The −20 °C to +150 °C rating covers air-conditioned server rooms, open yards and hot process areas.
Compare formats in our on-metal tag selection guide or browse all on-metal RFID tags.
Typical applications
- Server and UPS chassis
- Electrical cabinets
- Cylinder cages
- Steel racking bays
- Stainless vessels
- Depot equipment

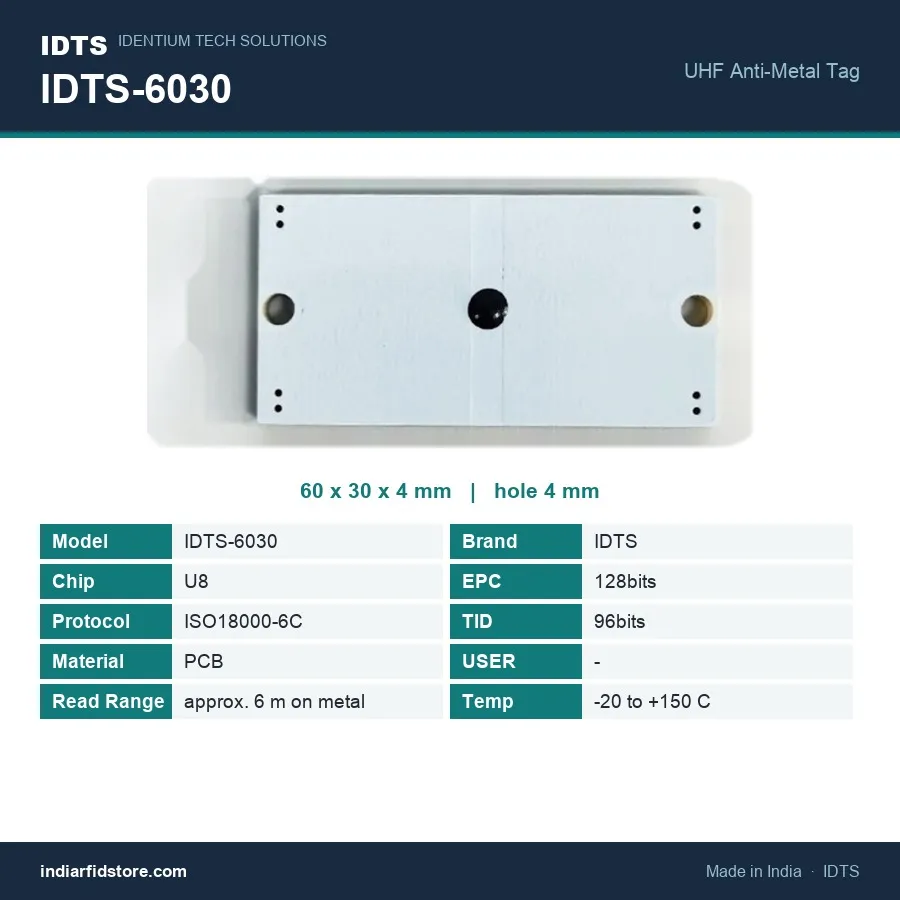

Specifications
Datasheet (PDF)| Frequency | 860–960 MHz (covers India's 865–868 MHz band) |
|---|---|
| Protocol | ISO 18000-6C |
| Chip | U8 |
| Memory | EPC 128 bits; TID 96 bits |
| Read range | Approx. 6 m on metal (depends on reader) |
| Dimensions | 60 × 30 × 4 mm (4 mm at the highest point) |
| Material | PCB |
| Mounting | Two 4 mm holes at the ends, 54 mm apart, plus a central hole |
| Mounting surface | Metal (anti-metal design) |
| Shape | Rectangular plate with rounded corners |
| Colour | White |
| Operating temperature | −20 °C to +150 °C |
Frequently asked questions
How far does the IDTS-6030 read on metal?
How is it fixed to equipment?
Which readers and frequency does it work with?
Should I choose this plate or a narrower bar tag?
