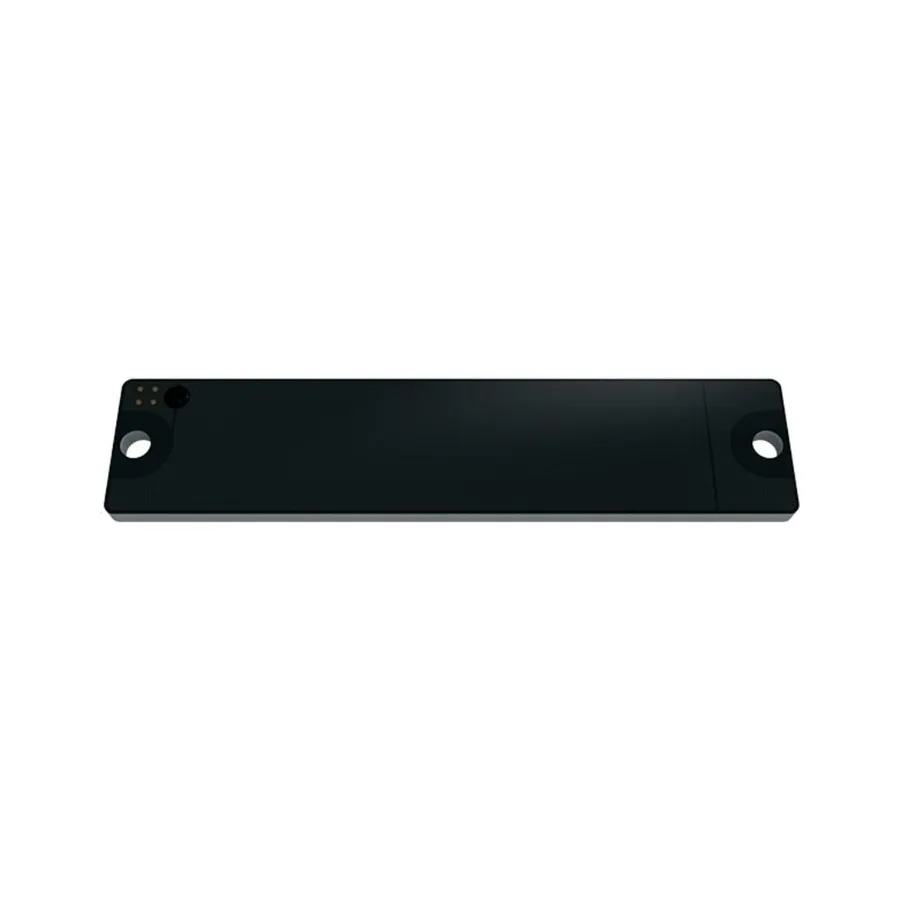

UHF On-Metal RFID Tag IDTS-9020 (90 × 20 mm PCB Bar, Screw Mount)

Long-range on-metal RFID tag in a 90 × 20 mm bar

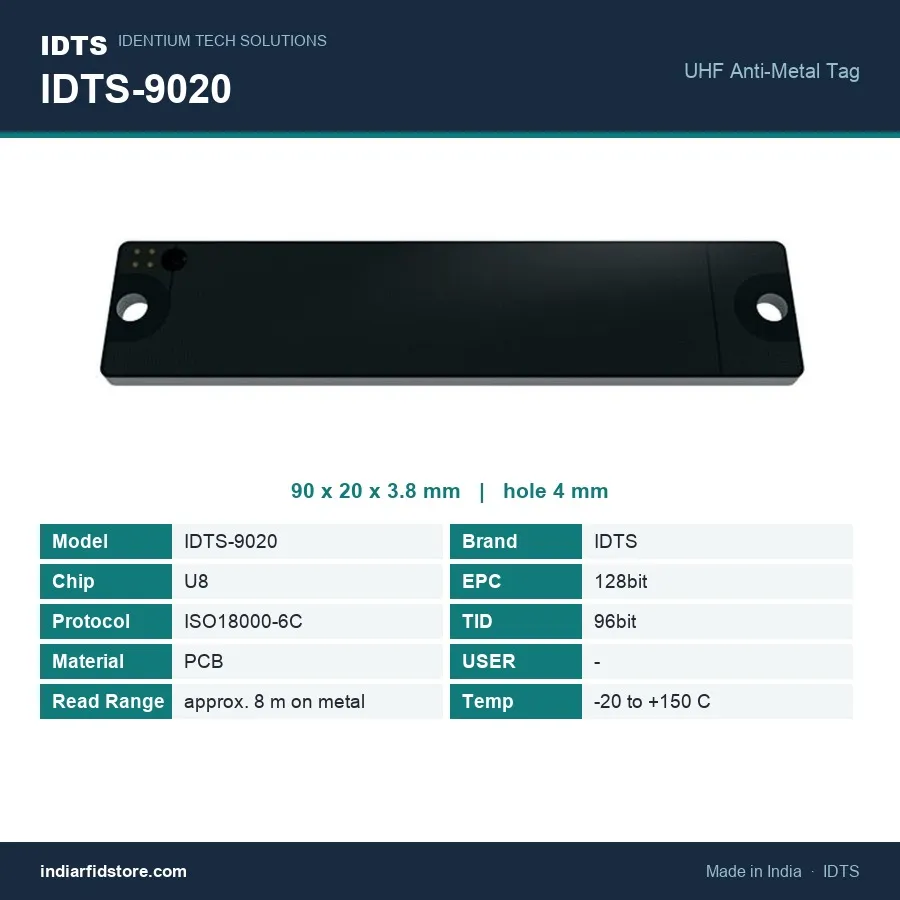

The IDTS-9020 is for metal assets you want to read from a distance rather than at arm’s length. Its 20 mm-wide PCB bar is listed at approximately 8 m when mounted on metal, which opens up fixed-reader set-ups at doorways and aisle ends as well as handheld counts. The bar is 90 mm long and 3.8 mm at its thickest point.

Where the extra range helps

• Racking: one tag per bay or beam gives every metal location an address that can be confirmed from the aisle.
• Gas cylinders: bolted to a collar, guard or bracket, it identifies cylinders through filling, dispatch and return.
• Plant and IT assets: motors, compressors, server racks and switchgear frames checked on maintenance or audit rounds.

Mounting and sizing

Two 4 mm holes, 84 mm apart, take standard screws or rivets. The narrower IDTS-9010 shares that hole pitch, so both can use one drilling pattern, with the 20 mm bar going wherever you need the extra range. For fill-cycle tracking, see our gas cylinder RFID guide; other shapes are listed under PCB and ceramic RFID tags.
