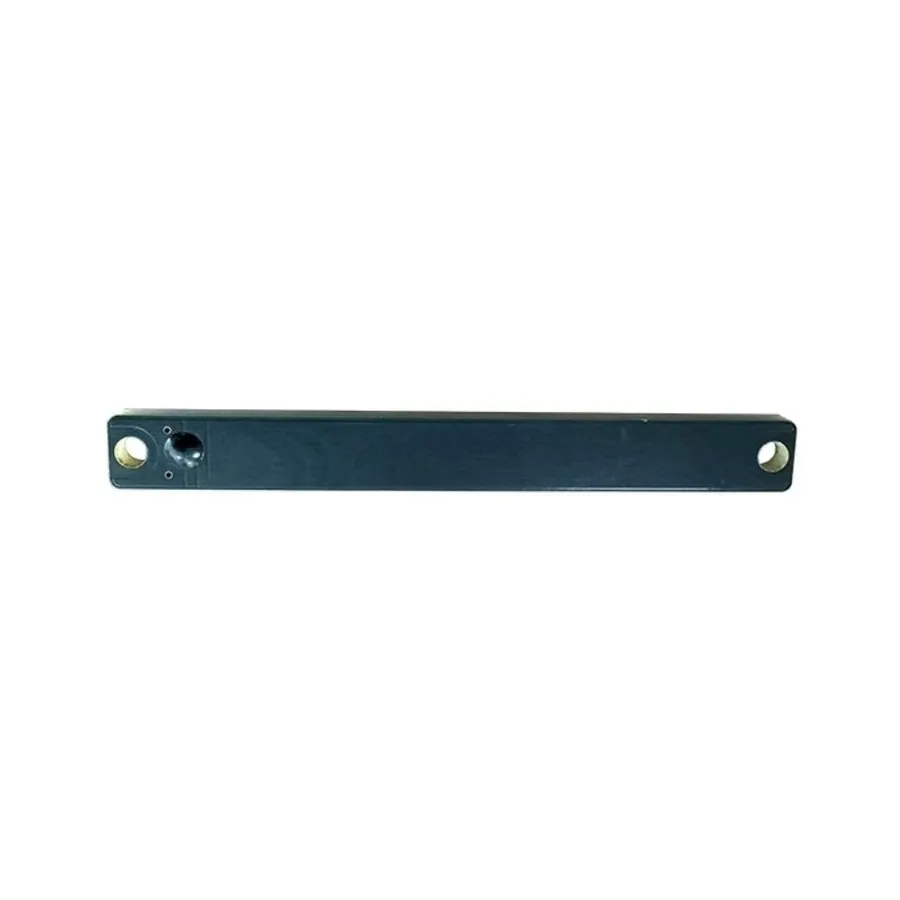

IDTS-9010 UHF On-Metal RFID PCB Bar Tag 90 x 10 x 3 mm, Screw-Mount for Racks & Machinery

The IDTS-9010 is a passive UHF on-metal (anti-metal) RFID tag built on a PCB substrate and shaped as a long, narrow rectangular bar measuring 90 x 10 x 3 mm. A through-hole at each end takes a screw, so the tag bolts down permanently on the metal assets that dominate Indian warehouses, workshops and utility yards - rack beams, machine frames, panel doors, pipe clamps and equipment brackets - where a stick-on label would peel, fade or be scraped off. Because it is designed to work while mounted on metal, it delivers a read of approximately 4 m on metal instead of the dead reading you get from an ordinary label on a steel surface.

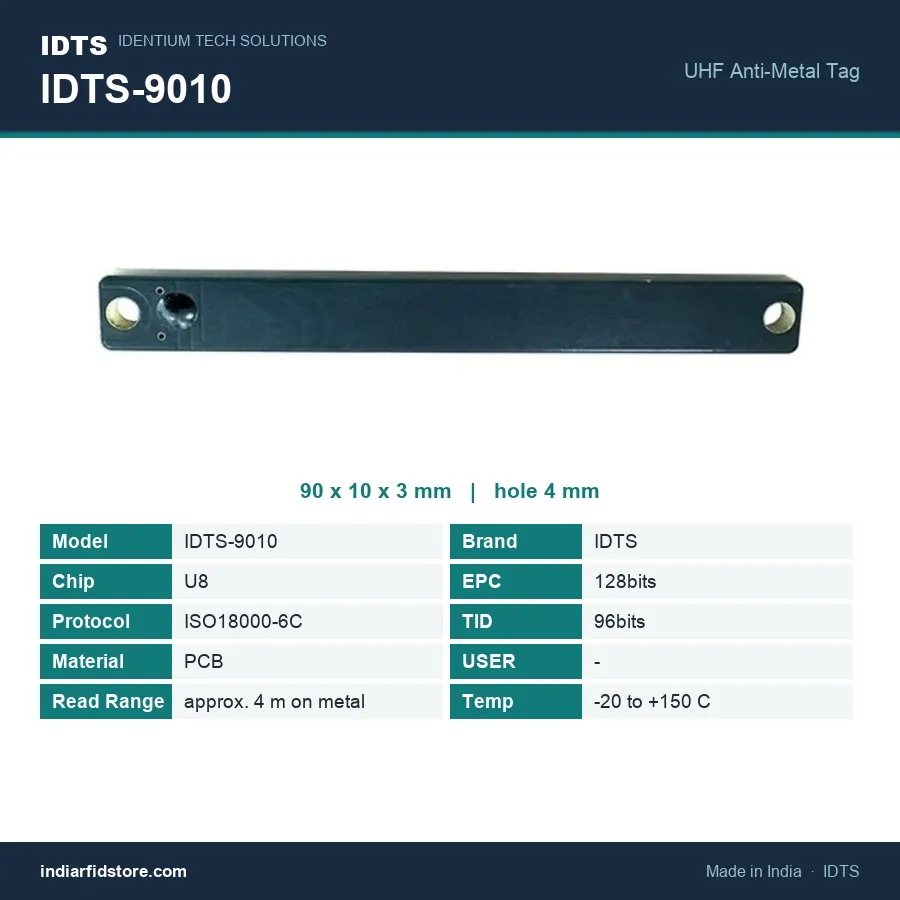

Key Specifications

• SKU: IDTS-9010
• Product type: UHF on-metal (anti-metal) RFID tag
• Frequency: 860-960 MHz (global UHF band); India operates in the 865-867 MHz de-licensed band
• Air-interface protocol: ISO18000-6C
• Chip: U8
• EPC memory: 128 bits
• TID memory: 96 bits
• Read distance: approx. 4 m on metal
• Material: PCB
• Substrate class: PCB
• Length: 90 mm
• Width: 10 mm
• Thickness: 3 mm (PCB board thickness)
• Mounting holes: two through-holes, one at each end, for screw mounting
• Hole diameter: 4 mm
• Hole centre-to-centre spacing: 84 mm
• Shape: long narrow rectangular bar with a mounting hole at each end
• Colour: black
• Operating temperature: -20 C to +150 C
• Anti-metal: yes

Applications

• Warehouse rack and location tagging - the 90 mm bar form suits the flat face of pallet-rack beams and uprights, giving each bay a fixed, screwed-down identity for put-away and cycle counting.
• Manufacturing machinery and jig identification - bolts onto machine frames, fixture plates, die racks and press guards for maintenance schedules and shop-floor traceability.
• Tool crib and heavy tool control - suited to larger tools, tool trolleys, die blocks and equipment cases that have enough flat metal to accept two screws 84 mm apart.
• IT asset audits - fits the narrow rails, frames and cabinet doors of server racks, UPS units and network enclosures for annual hardware verification.
• Utilities and electrical infrastructure - identification of switchgear cubicles, distribution panels, cable trays, valve bodies and pipe clamps during inspection rounds.
• Railways and rolling stock support equipment - depot fixtures, metal brackets, trolleys and maintenance stands that need a permanent, screw-fixed identifier.
• Gas cylinder cages, cradles and pharma equipment frames - cylinder handling frames, trolley racks and stainless equipment stands where the tag can be bolted to a flat metal member.

Why Choose This Tag

• Built to read while sitting on steel. This is an anti-metal design, so mounting it directly on a metal asset is the intended use, not a compromise - it returns approximately 4 m on metal.
• Screw-fixed, not stuck on. Two 4 mm through-holes at an 84 mm centre-to-centre pitch let you fasten the tag mechanically, which suits assets that get knocked about or handled daily.
• A narrow 10 mm bar only 3 mm thick. The slim profile and long, thin footprint fit onto rack beams, frame members and panel edges where a square on-metal tag simply will not sit flat.
• Rated from -20 C to +150 C. A wide operating temperature range covers cold rooms through to hot plant areas near motors, ovens and process equipment.
• Standards-based and serialisable. ISO18000-6C with 128-bit EPC and 96-bit TID memory means it works with standard UHF readers and supports unique, factory-locked identification for audit trails.

Read range is a typical figure, not a guarantee: actual performance varies with the reader and antenna used, transmit power, tag orientation, the mounting surface and the surrounding environment. We recommend a short on-site trial in your own application before bulk deployment. Available from India RFID Store under the IDentium / IDTS brand.
