UHF On-Metal RFID LED Tag IDTS-6020-LED (60 × 20 mm)
A 60 × 20 mm on-metal UHF PCB tag with a built-in LED that lights when the tag is read, so staff can see which asset responded. It reads at approx. 5 m on metal.
₹89
per piece + 18% GST
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 177 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request
Key features
- On-tag LED lights when read, visible from approx. 2 m
- Anti-metal PCB design, approx. 5 m read range on metal
- Thin 60 × 20 × 2.5 mm bar on a 1.6 mm board
- Two 4 mm screw holes at 54 mm centres
- KX2005X-BL chip with 1312-bit user memory
- Operating temperature −20 °C to +150 °C
- Frequency
- 860–960 MHz (covers India's 865–868 MHz band)
- Protocol
- ISO 18000-6C
- Chip
- KX2005X-BL (LED-enabled)
- Read range
- Approx. 5 m on metal (depends on reader)
Overview
What the IDTS-6020-LED on-metal LED RFID tag does
In a crowded rack of switches or a drawer of tooling, a reader can tell you a tag is in range but not which item carries it. The IDTS-6020-LED answers that with a small LED on the tag itself. When the tag is read the LED lights, and it can be seen from about 2 m, so the operator confirms the right item by looking at the asset rather than at the handheld screen.
Built for metal, kept compact
This is an anti-metal PCB tag of 60 × 20 mm, only 2.5 mm at its highest point. Two 4 mm holes, 54 mm apart, take screws or rivets, so it stays on tool bodies, rack frames and panels. Read range is approx. 5 m on metal; the 2 m figure is how far the light is visible, not a read distance.
Memory for on-tag records
The KX2005X-BL chip offers a 96–240-bit EPC, a 96-bit TID and 1312 bits of user memory, room for a plant code, calibration date or department reference alongside the asset number. It is rated for −20 °C to +150 °C. For audit routines that use tags like this, read our fixed asset audit guide or compare other PCB and ceramic RFID tags.
Typical applications
- Tool crib tooling
- Dense IT racks
- Switches and patch panels
- Jigs and fixtures
- Stainless process trolleys
- Locating single assets

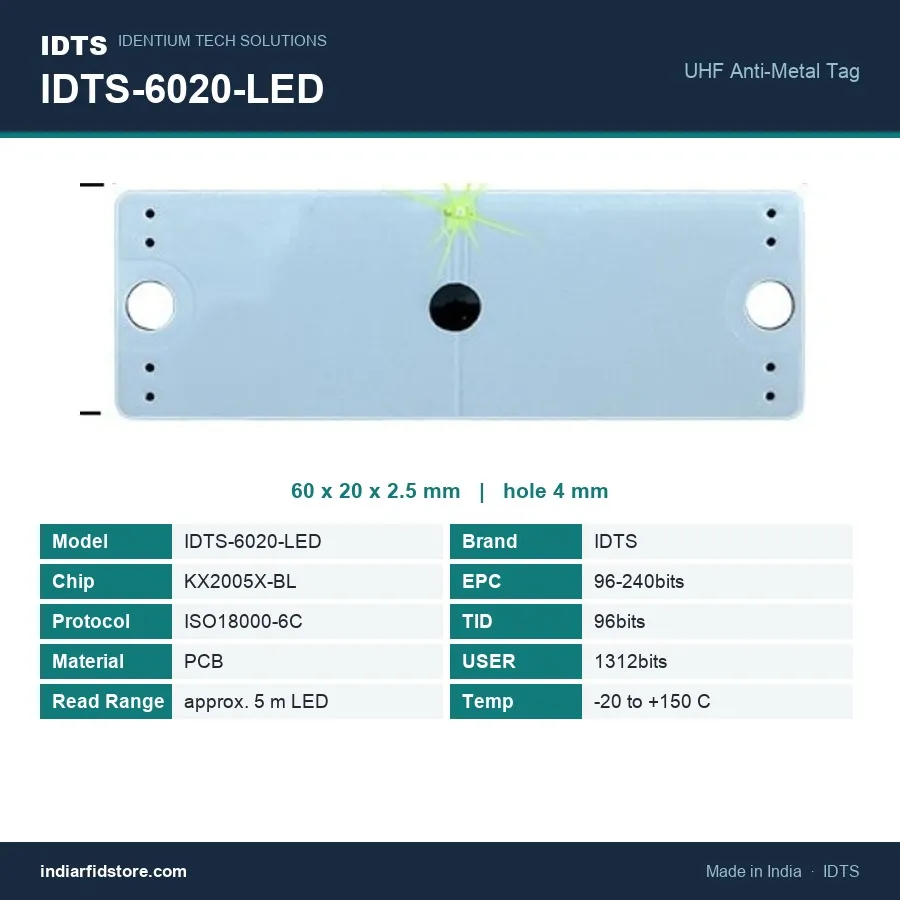

Specifications
Datasheet (PDF)| Frequency | 860–960 MHz (covers India's 865–868 MHz band) |
|---|---|
| Protocol | ISO 18000-6C |
| Chip | KX2005X-BL (LED-enabled) |
| Memory | EPC 96–240 bits; TID 96 bits; user 1312 bits |
| Read range | Approx. 5 m on metal (depends on reader) |
| LED indicator | Lights when the tag is read; visible from approx. 2 m |
| Dimensions | 60 × 20 × 2.5 mm (2.5 mm at the highest point; board 1.6 mm) |
| Material | PCB |
| Mounting | Two 4 mm holes, 54 mm centre to centre |
| Mounting surface | Metal (anti-metal design) |
| Shape | Rectangular bar with rounded corners |
| Colour | White / pale blue PCB with a black centre component |
| Operating temperature | −20 °C to +150 °C |
Frequently asked questions
What is the LED on the IDTS-6020-LED for?
Is the 2 m LED distance the read range?
Will my reader light the LED?
Can it be mounted straight onto steel?
What can I store in the user memory?
