UHF On-Metal LED RFID Tag IDTS-6010-LED (60 × 10 mm)

A narrow LED on-metal tag for dense racks

In a full server rack, devices sit a few centimetres apart, and a list of EPC numbers on a handheld does not tell you which chassis is which. The IDTS-6010-LED is a 60 × 10 mm UHF anti-metal tag with a green LED that flashes when the tag is read, so the auditor can see the unit that answered. At 10 mm wide it fits along a chassis edge, a rack rail or a patch-panel frame.

Reading and the LED

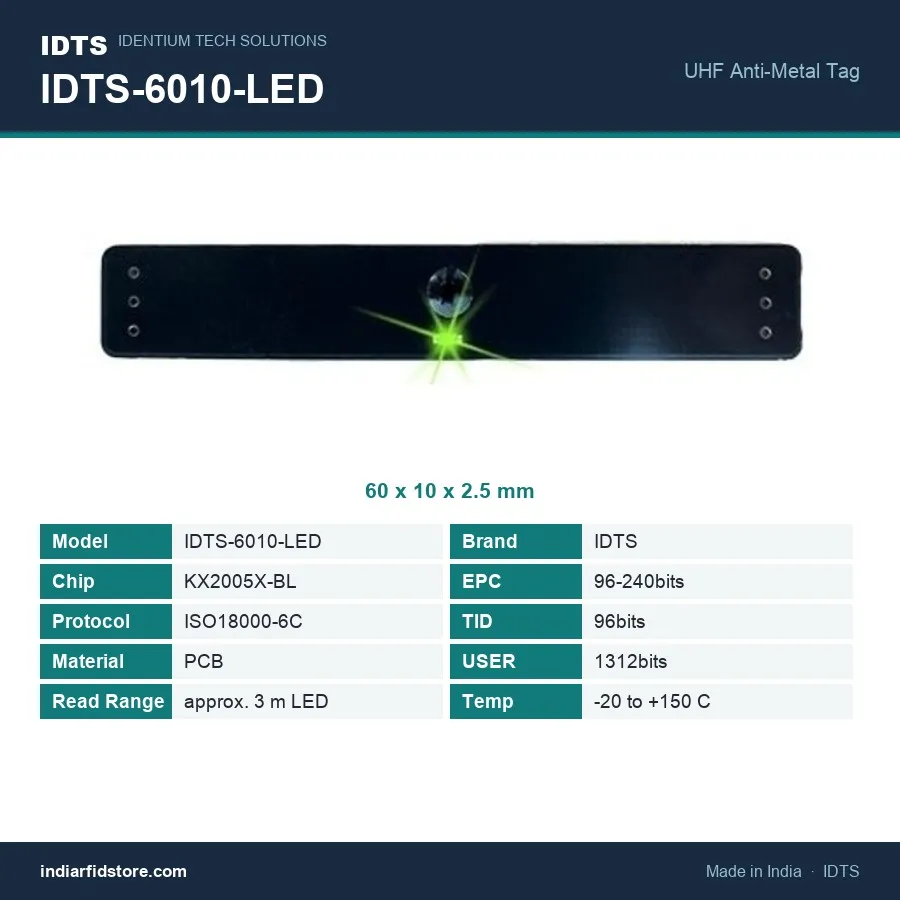

Data reads at about 3 m on metal; the LED flash is visible from around 2 m. The reader can pick up the tag from a little further away, and the light confirms the item once you are close to it. The KX2005X-BL chip on ISO 18000-6C provides a 96–240-bit EPC, a 96-bit TID and 1312 bits of user memory for plant codes or maintenance notes.

Build and fixing

The black PCB is 1.6 mm thick, rising to 2.5 mm at the LED dome. Three small holes sit at each end of the bar; their diameter is not specified, so check fasteners on a sample. The tag is rated −20 °C to +150 °C. If your assets have more width to spare, the IDTS-6020-LED (60 × 20 mm) is the wider LED option. For audit workflows, read the fixed asset audit guide.
