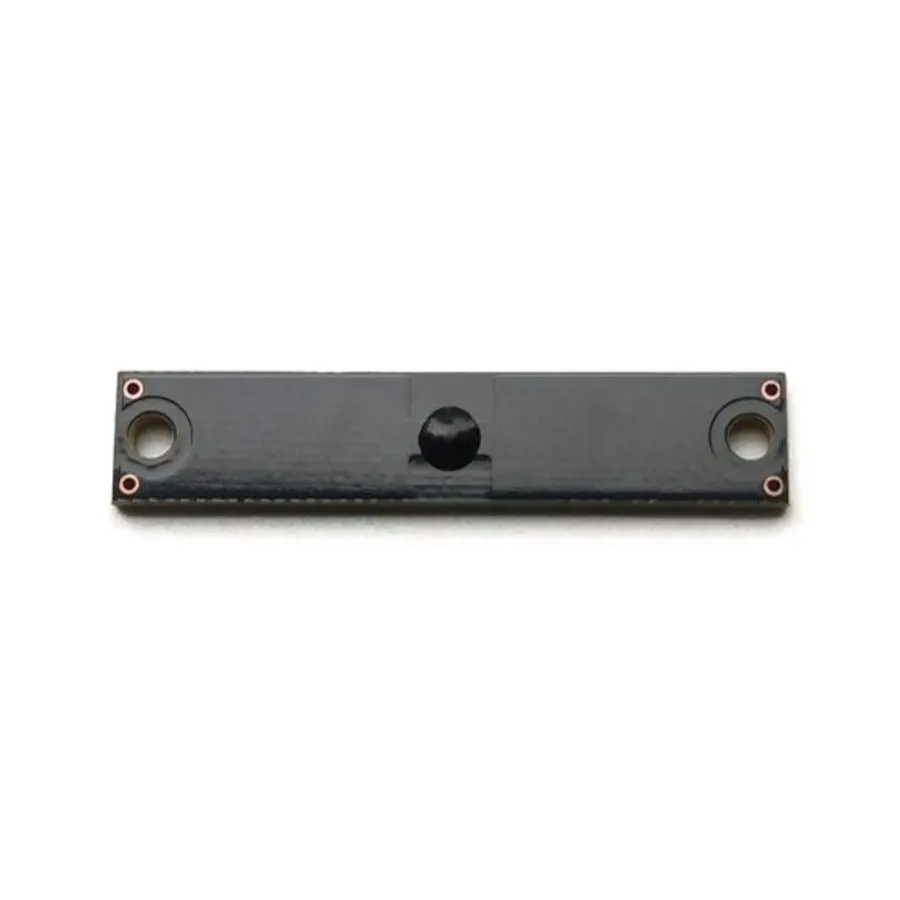

UHF On-Metal PCB Bar Tag IDTS-5010 (50 × 10 mm)
A long, narrow 50 × 10 mm UHF on-metal bar tag on black-coated PCB, made to screw along rack rails, tool shanks and panel edges and read approx. 3.5 m on metal.
₹89
per piece + 18% GST
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 175 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request
Key features
- Narrow 50 × 10 × 3.5 mm bar for slim metal surfaces
- Approx. 3.5 m read range on metal
- Two 3.2 mm holes, one at each end, 44 mm apart
- Black-coated PCB with raised chip encapsulation
- Operating temperature −20 °C to +150 °C
- U8 chip, ISO 18000-6C, 128-bit EPC, 96-bit TID
- Frequency
- 860–960 MHz (covers India’s 865–868 MHz band)
- Protocol
- ISO 18000-6C
- Chip
- U8
- Read range
- Approx. 3.5 m on metal (depends on reader)
Overview
A narrow on-metal RFID bar tag for rails and edges
Many metal assets offer a long, thin strip of flat surface and nothing more: a rack upright, a panel door edge, a tool shank, the lip of a cable tray. The IDTS-5010 is shaped for exactly that, a 50 × 10 mm UHF anti-metal bar, 3.5 mm at its highest point. A square on-metal tag would overhang these surfaces; this one lies along them.
Fixing and durability
A 3.2 mm hole at each end, 44 mm centre to centre, lets you screw or rivet the bar down at both ends, so it stays put on assets that are handled or moved all day. The board is black-coated, with a raised encapsulation dot protecting the chip at the centre. The rated operating range of −20 °C to +150 °C covers warm process areas as well as cold storage.
Range and reading
Read range is about 3.5 m on metal, enough to sweep a row of racks or a line of panels with a handheld. The U8 chip on ISO 18000-6C carries a 128-bit EPC and 96-bit TID and reads on standard UHF equipment. For a longer bar of the same 10 mm width, see the IDTS-9010 (90 × 10 mm), or browse all PCB and ceramic RFID tags.
Typical applications
- Rack uprights and rails
- Tool shanks and handles
- Panel door edges
- Valve bodies
- Cable trays and pipework
- Roll cages and trolleys

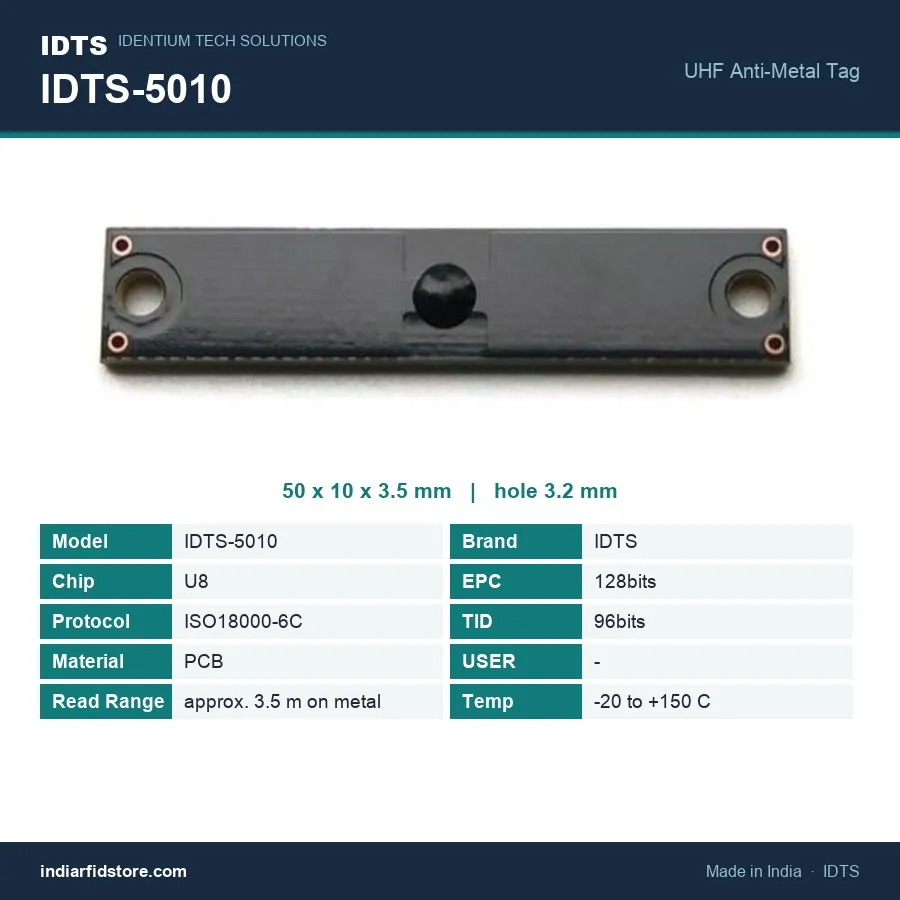

Specifications
Datasheet (PDF)| Frequency | 860–960 MHz (covers India’s 865–868 MHz band) |
|---|---|
| Protocol | ISO 18000-6C |
| Chip | U8 |
| Memory | EPC 128 bits; TID 96 bits |
| Read range | Approx. 3.5 m on metal (depends on reader) |
| Dimensions | 50 × 10 × 3.5 mm (3.5 mm at the highest point) |
| Material | Black-coated PCB with raised chip encapsulation |
| Mounting | Two holes, 3.2 mm diameter, 44 mm apart |
| Colour | Black |
| Mounting surface | Designed for direct mounting on metal |
| Operating temperature | −20 °C to +150 °C |
Frequently asked questions
How far can a handheld read the IDTS-5010 on metal?
Will it fit on a narrow rack rail or valve body?
How is it fixed?
Does it work in hot areas?
Can the EPC be encoded with our asset numbers?
