UHF On-Metal Miniature RFID PCB Tag IDTS-1004 (10 × 4 × 2.8 mm)
A 10 × 4 mm UHF on-metal PCB tag with four plated corner holes, so it can be soldered to a board or pinned to a part like any other component, reading approx. 1.2 m on metal.
₹89
per piece + 18% GST
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 188 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request
Key features
- 10 × 4 mm PCB, 2.8 mm at the epoxy dome
- Four plated corner through-holes for soldering or pinning
- Approx. 1.2 m read range on metal
- U8 or M781 chip: 0 or 512 bits of user memory
- 128-bit EPC and 96-bit TID on ISO 18000-6C
- Rated −20 °C to +150 °C
- Frequency
- 860–960 MHz (covers India's 865–868 MHz band)
- Protocol
- ISO 18000-6C
- Chip
- U8 / M781
- Read range
- Approx. 1.2 m on metal
Overview
A miniature on-metal RFID tag that mounts like a component

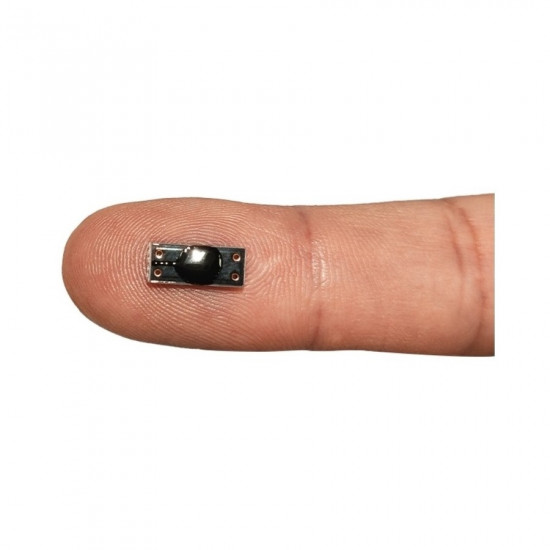

The IDTS-1004 is a black PCB strip 10 mm long and 4 mm wide, with its chip sealed under a black epoxy dome that sets the 2.8 mm height. Its distinguishing feature is the four copper-plated through-holes, one at each corner. On an electronics line the tag can be soldered down like any through-hole part; on a tool or fitting the same holes take pins or fine screws, so you are not relying on adhesive alone.
Read range for tray and rack scanning
The quoted range is approx. 1.2 m on metal. That lets an operator sweep a handheld along a tray of instruments or a rack of sockets and pick up each tag without lifting the items. For overhead or portal reading across a room, a larger bar from the PCB tag range is the safer choice.
Memory for production data
It is listed with a U8 or M781 chip. Both give a 128-bit EPC for your serial number and a 96-bit factory TID; the M781 adds 512 bits of user memory, enough to hold a board revision or a test-pass flag on the tag itself. Read more about tagging work-in-progress in RFID for manufacturing.
Typical applications
- PCB and control card tracking
- Electronics repair and RMA
- Sockets and torque tools
- Gauges and inspection tooling
- Brass fittings and valves
- Small network hardware

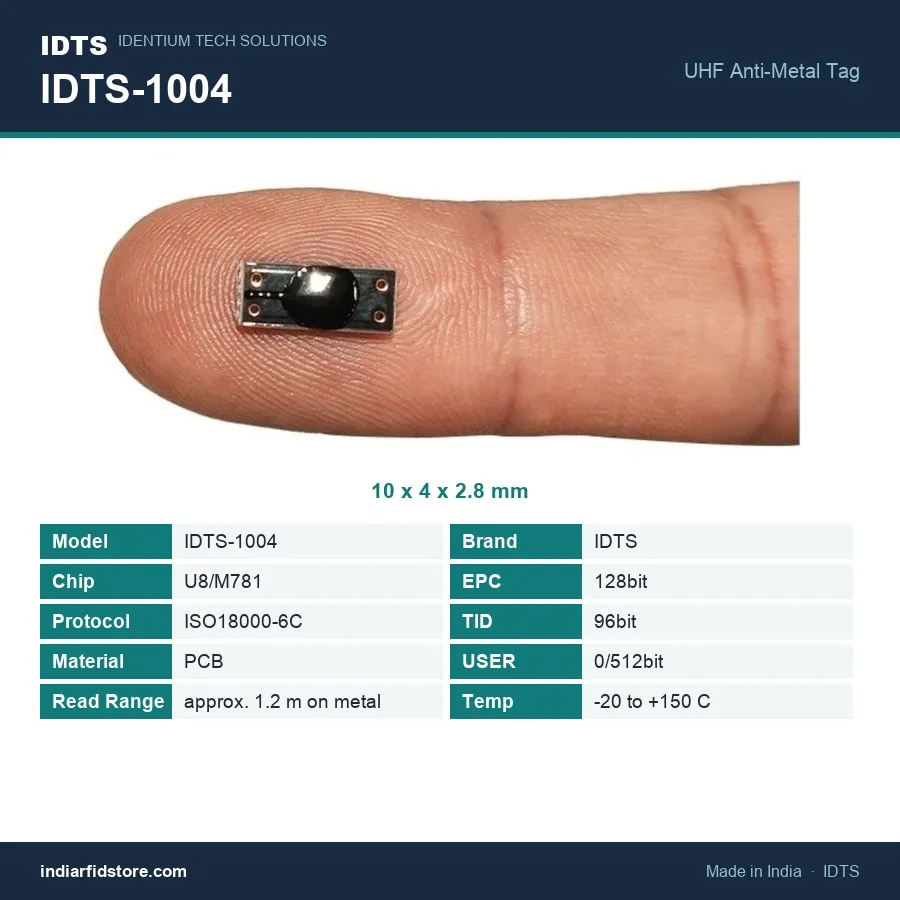

Specifications
Datasheet (PDF)| Frequency | 860–960 MHz (covers India's 865–868 MHz band) |
|---|---|
| Protocol | ISO 18000-6C |
| Chip | U8 / M781 |
| Memory | EPC 128 bits; TID 96 bits; User 0 / 512 bits (depends on chip) |
| Read range | Approx. 1.2 m on metal |
| Dimensions | 10 × 4 × 2.8 mm (2.8 mm at the epoxy dome) |
| Material | PCB with epoxy-encapsulated chip |
| Mounting | Four plated through-holes at the corners, for mounting or soldering (diameter not specified) |
| Colour | Black, with copper-plated holes |
| Operating temperature | −20 °C to +150 °C |
Frequently asked questions
Can the IDTS-1004 be soldered onto a circuit board?
How far does it read on metal?
Which chip version should I order?
Is the chip protected against knocks?
