UHF On-Metal PCB RFID Disc Tag IDTS-D40 (40 mm, Monza R6-P)
A 40 mm round, 3 mm thick UHF on-metal PCB tag on the Impinj Monza R6-P chip, with 32 bits of user memory and two fixing holes, for permanent IDs on machinery, cabinets and cylinders.
₹89
per piece + 18% GST
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 180 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request
Key features
- Impinj Monza R6-P chip with 32-bit user memory
- 40 mm round disc, 3 mm thick
- Two 3 mm holes at 34 mm centres for screw or rivet fixing
- Approx. 2 m read range on metal
- Rated −20 °C to +150 °C
- Frequency
- 860–960 MHz (covers India’s 865–868 MHz band)
- Protocol
- ISO 18000-6C
- Chip
- Impinj Monza R6-P
- Read range
- Approx. 2 m on metal (depends on reader and antenna)
Overview
40 mm on-metal RFID disc tag with Impinj Monza R6-P
Unlike the U8-based IDTS-D30, D33 and D38 discs, the IDTS-D40 is built on the Impinj Monza R6-P chip. Alongside the 128-bit EPC and 96-bit TID it carries 32 bits of user memory: 4 bytes, enough for a short code such as a location number or a last-service date written in the field.
Fitting and range

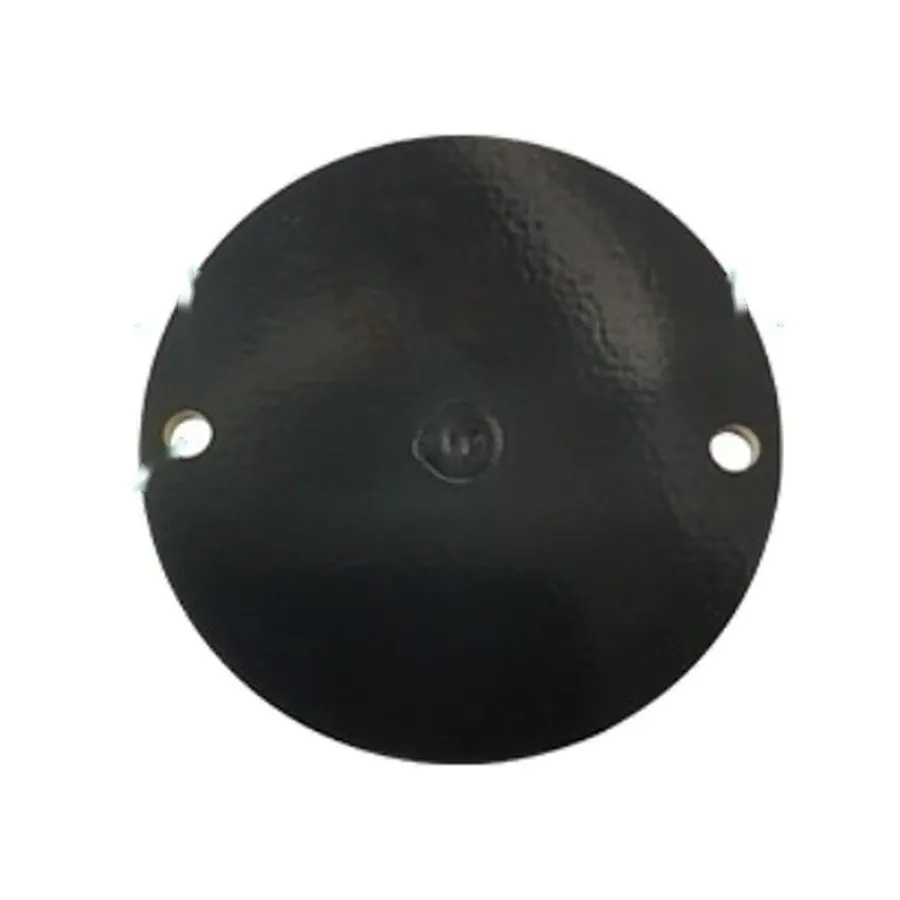

The black PCB disc is 40 mm across and 3 mm thick. Two 3 mm holes, 34 mm apart centre to centre, let you screw or rivet it to a cabinet door, machine frame or cylinder collar so it stays put through handling. Mounted on metal it reads at approx. 2 m, so plan for handheld scanning close to each asset rather than long-range fixed reading. It is rated −20 °C to +150 °C.
Where it fits
- Plant maintenance: motors, pumps, gearboxes and compressors
- Electrical: distribution panels, transformer enclosures and meter boxes
- Logistics: metal drums, roll cages and returnable metal totes
For audit planning, read the fixed asset audit guide, or compare other sizes in PCB and ceramic RFID tags.
Typical applications
- Machinery maintenance
- Electrical cabinets
- Industrial gas cylinders
- Metal drums
- Server racks
- Roll cages and totes

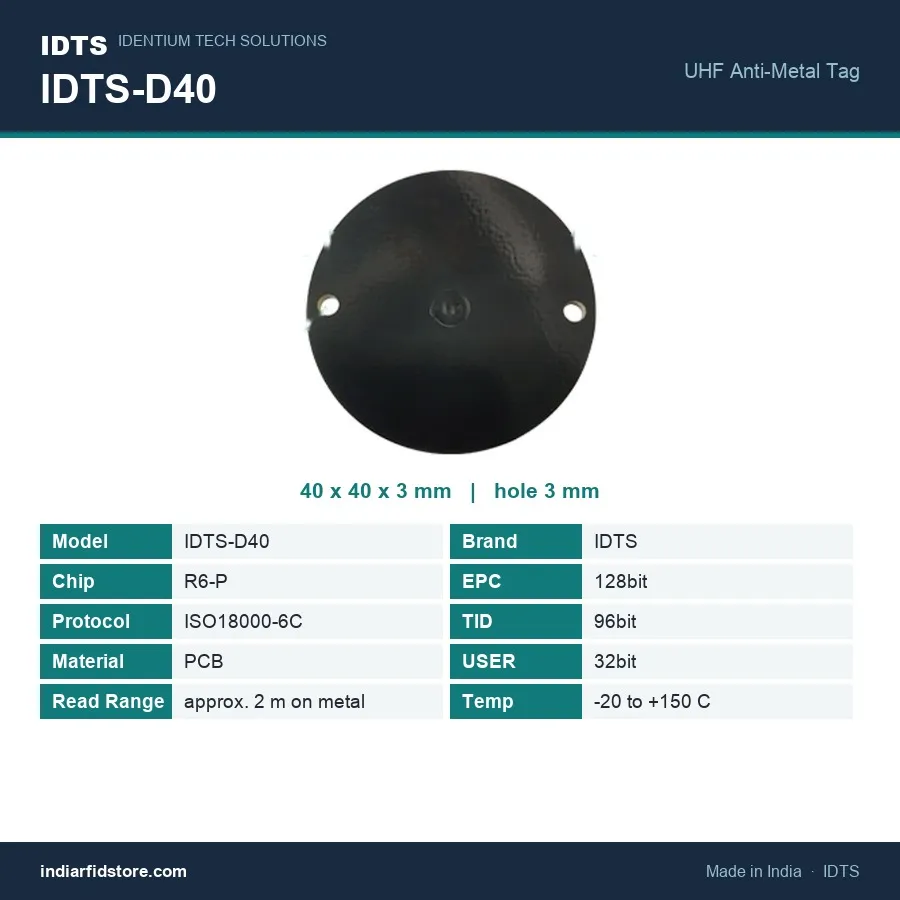

Specifications
Datasheet (PDF)| Frequency | 860–960 MHz (covers India’s 865–868 MHz band) |
|---|---|
| Protocol | ISO 18000-6C |
| Chip | Impinj Monza R6-P |
| Memory | EPC 128 bits; TID 96 bits; user 32 bits |
| Read range | Approx. 2 m on metal (depends on reader and antenna) |
| Dimensions | Ø 40 mm × 3 mm |
| Mounting | Two holes, 3 mm diameter, 34 mm apart centre to centre |
| Material | PCB |
| Mounting surface | Designed for direct mounting on metal |
| Colour | Black |
| Operating temperature | −20 °C to +150 °C |
Frequently asked questions
What read range does the IDTS-D40 give on metal?
What can I store in the 32-bit user memory?
Which chip and protocol does it use?
Can I get the tags pre-encoded?
