UHF On-Metal PCB RFID Tag IDTS-4216 (42 × 16 mm)
A thin 42 × 16 × 2.6 mm on-metal UHF tag on black PCB with six copper-ringed mounting holes, reading approx. 4 m on metal for IT hardware, tools and plant.
₹89
per piece + 18% GST
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 180 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request a sample of this tag
Key features
- Low 2.6 mm profile on a 42 × 16 mm footprint
- Six copper-ringed mounting holes, three at each end
- Approx. 4 m read range on metal
- Circular opening at the centre of the board
- Operating temperature −20 °C to +150 °C
- U8 chip, ISO 18000-6C, 128-bit EPC, 96-bit TID
- Frequency
- 860–960 MHz (covers India’s 865–868 MHz band)
- Protocol
- ISO 18000-6C
- Chip
- U8
- Read range
- Approx. 4 m on metal (depends on reader)
Overview
A low-profile on-metal PCB tag for flat metal faces
The IDTS-4216 is a UHF anti-metal tag on a 42 × 16 mm black PCB, only 2.6 mm at its highest point. That low profile matters where a tag has to sit close to the surface: on a server chassis that slides into a rack, on a cabinet door that closes against a frame, or on a motor housing where a thick block would get knocked. Fixed directly to metal, it reads at about 4 m.
Six holes, more fixing options
Instead of a single hole at each end, the IDTS-4216 has six copper-ringed holes, three at each end, plus a circular opening at the centre. Installers can pick the holes that line up with existing threads or rivet points on the asset, or fix through more of them for a firmer hold on parts that vibrate. The hole diameter is not specified, so check your screws against a sample.
Range, chip and environment
About 4 m on metal suits walk-past audits in IT rooms and maintenance rounds on the plant floor. The U8 chip on ISO 18000-6C stores a 128-bit EPC and 96-bit TID and reads on standard UHF equipment, and the tag is rated −20 °C to +150 °C. For audit workflows, see the fixed asset audit guide, or browse PCB and ceramic RFID tags.
Typical applications
- Server and UPS chassis
- Rack uprights
- Motors and gearboxes
- Control cabinets
- Meter enclosures
- Steel bins and stillages

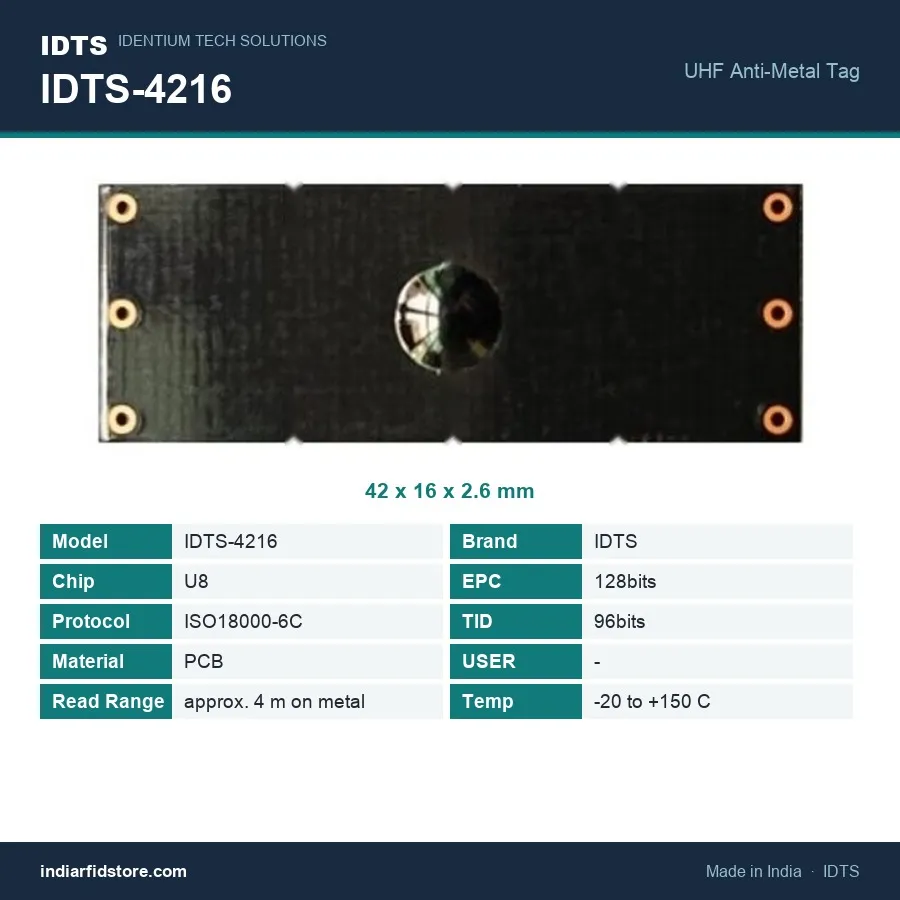

Specifications
Datasheet (PDF)| Frequency | 860–960 MHz (covers India’s 865–868 MHz band) |
|---|---|
| Protocol | ISO 18000-6C |
| Chip | U8 |
| Memory | EPC 128 bits; TID 96 bits |
| Read range | Approx. 4 m on metal (depends on reader) |
| Dimensions | 42 × 16 × 2.6 mm (2.6 mm at the highest point) |
| Material | PCB |
| Mounting | Six copper-ringed holes, three at each end (diameter not specified) |
| Colour | Black PCB with copper-ringed holes |
| Mounting surface | Designed for direct mounting on metal |
| Operating temperature | −20 °C to +150 °C |
