UHF On-Metal LED RFID Tag IDTS-5213-LED (52 × 13 mm)
A 52 × 13 mm UHF on-metal PCB tag with a built-in green LED that lights when the tag is read, so staff can see which tool or panel responded. Reads approx. 4 m on metal.
₹89
per piece + 18% GST
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 177 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request a sample of this tag
Key features
- Green LED lights on read, visible from approx. 2 m
- Approx. 4 m data read range on metal
- KX2005X-BL chip with 1312-bit user memory

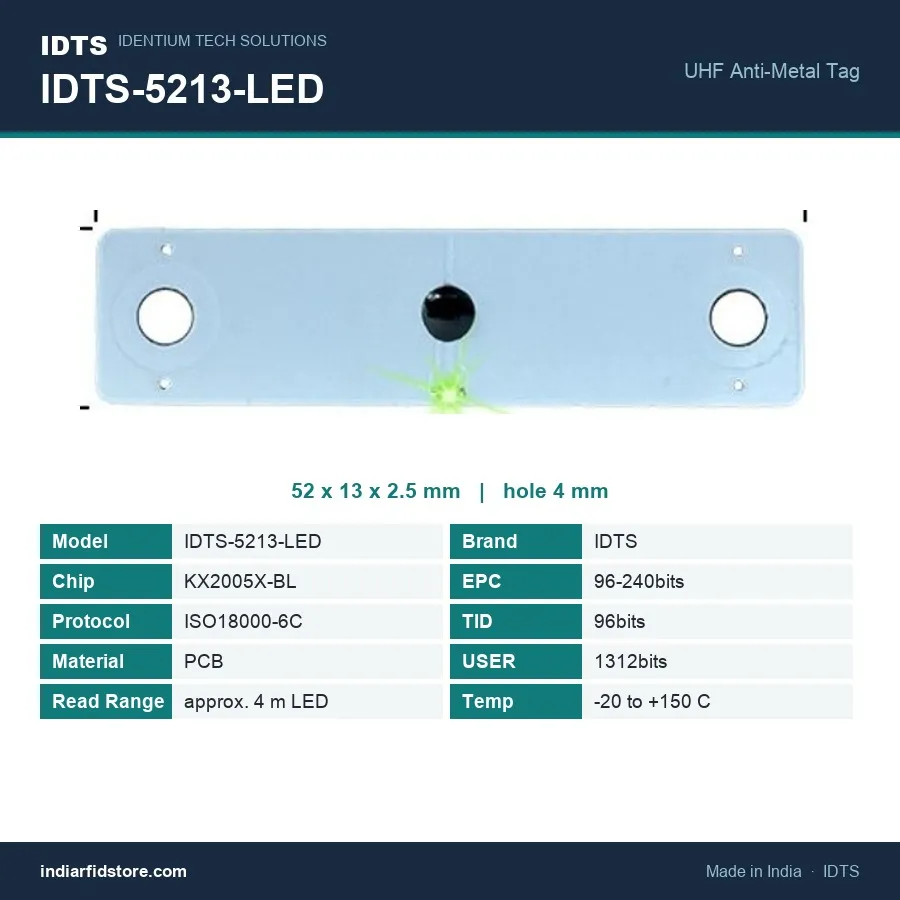

- 52 × 13 × 2.5 mm light blue PCB with rounded ends
- Two 4 mm screw holes at 41.5 mm pitch
- Operating temperature −20 °C to +150 °C
- Frequency
- 860–960 MHz (covers India’s 865–868 MHz band)
- Protocol
- ISO 18000-6C
- Chip
- KX2005X-BL
- Read range
- Approx. 4 m on metal (depends on reader)
Overview
An on-metal RFID tag that shows you when it is read
On a shelf of identical spanners or a wall of similar panels, a beep from the handheld does not tell you which item answered. The IDTS-5213-LED adds a green LED to a 52 × 13 mm on-metal PCB tag, and the LED lights up when the tag is read. The operator sees the confirmation on the asset itself, without checking a screen.
Two distances to plan around
The tag reads at about 4 m on metal, but the LED is visible from about 2 m. In practice the reader picks up data from further away, and the light confirms which item it was once the operator walks closer. Both figures vary with the reader, its power and the mounting surface.
Build and mounting
The light blue PCB bar has rounded ends; the board is 1.6 mm thick and 2.5 mm overall. A 4 mm screw hole at each end, 41.5 mm centre to centre, fixes it firmly to tools, fixtures and panels. The KX2005X-BL chip on ISO 18000-6C offers a 96–240-bit EPC, a 96-bit TID and 1312 bits of user memory, and the tag is rated −20 °C to +150 °C.
If you do not need the light, the IDTS-5213 has the same 52 × 13 mm footprint without an LED. For other options, browse PCB and ceramic RFID tags.
Typical applications
- Tool crib issue and return
- Patch panel and server audits
- Switchgear and metering panels
- Moulds and dies
- Cylinder valve guards
- Rail depot tools
Specifications
Datasheet (PDF)| Frequency | 860–960 MHz (covers India’s 865–868 MHz band) |
|---|---|
| Protocol | ISO 18000-6C |
| Chip | KX2005X-BL |
| Memory | EPC 96–240 bits; TID 96 bits; user 1312 bits |
| Read range | Approx. 4 m on metal (depends on reader) |
| LED indicator | Green LED, lights on read; visible from approx. 2 m |
| Dimensions | 52 × 13 × 2.5 mm overall (1.6 mm board) |
| Material | PCB |
| Mounting | Two screw holes, 4 mm diameter, 41.5 mm centre to centre |
| Colour | Light blue PCB, black LED dome |
| Mounting surface | Designed for direct mounting on metal |
| Operating temperature | −20 °C to +150 °C |
Frequently asked questions
What does the LED do?
Is the LED distance the same as the read range?
How is the tag mounted?
Does it read on metal?
Which reader should I use?
