UHF Anti-Metal Miniature RFID PCB Tag IDTS-0804 (8 × 4 × 2.8 mm)
An 8 × 4 × 2.8 mm UHF anti-metal PCB tag reading approx. 1 m on metal, for tool shanks, board edges and small fittings, with a chip option that adds 512 bits of user memory.
₹89
per piece + 18% GST
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 181 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request
Key features
- 8 × 4 mm footprint, 2.8 mm at the highest point
- Approx. 1 m read range on metal
- U8 or M781 chip: 0 or 512 bits of user memory
- 128-bit EPC and 96-bit factory TID on ISO 18000-6C
- Two small plated holes at one end, or bond it flat
- Rated −20 °C to +150 °C
- Frequency
- 860–960 MHz (covers India's 865–868 MHz band)
- Protocol
- ISO 18000-6C
- Chip
- U8 / M781
- Read range
- Approx. 1 m on metal
Overview
A miniature anti-metal UHF RFID tag that reads at 1 m

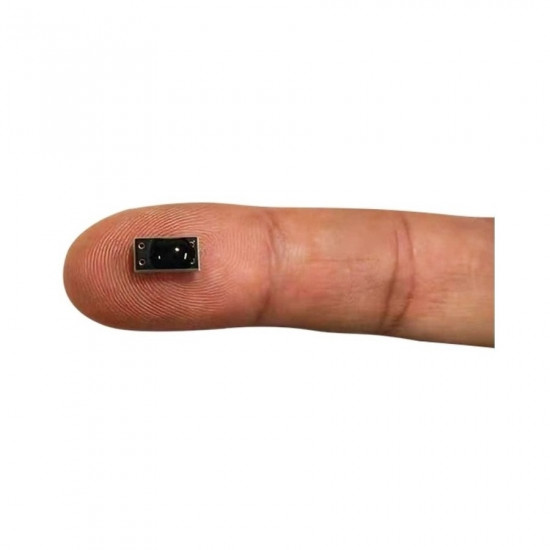

The IDTS-0804 is 8 mm long, 4 mm wide and 2.8 mm high, with a black potted top and a metallised rim. It is barely larger than the 8 × 3 mm IDTS-0803, yet its quoted read distance is twice as long: approx. 1 m on metal against 0.5 m. That is enough to read a tray of parts or a short tool rack with one pass of a handheld, rather than touching the reader to each item.
Choosing between the two chip versions
The chip is listed as U8 / M781, and the choice comes down to memory. The U8 version has no user memory and suits plain serial-number tracking. The M781 version adds 512 bits of user memory for data you want on the tag itself, such as a part revision or the last inspection code. Both carry a 128-bit EPC and a 96-bit TID. Say which you need when you request a quote.
Fixing it to the asset
Two small plated holes at one end take a pin, rivet or tie wire sized to suit, or you can bond the underside flat with an adhesive. Read and encode it with any ISO 18000-6C UHF handheld or desktop reader. For help sizing tags for metal parts, see how to choose on-metal RFID tags.
Typical applications
- Tool crib control
- PCB and module tracking
- Jigs, moulds and dies
- Metrology instruments
- Rack hardware audits
- Returnable machined spares

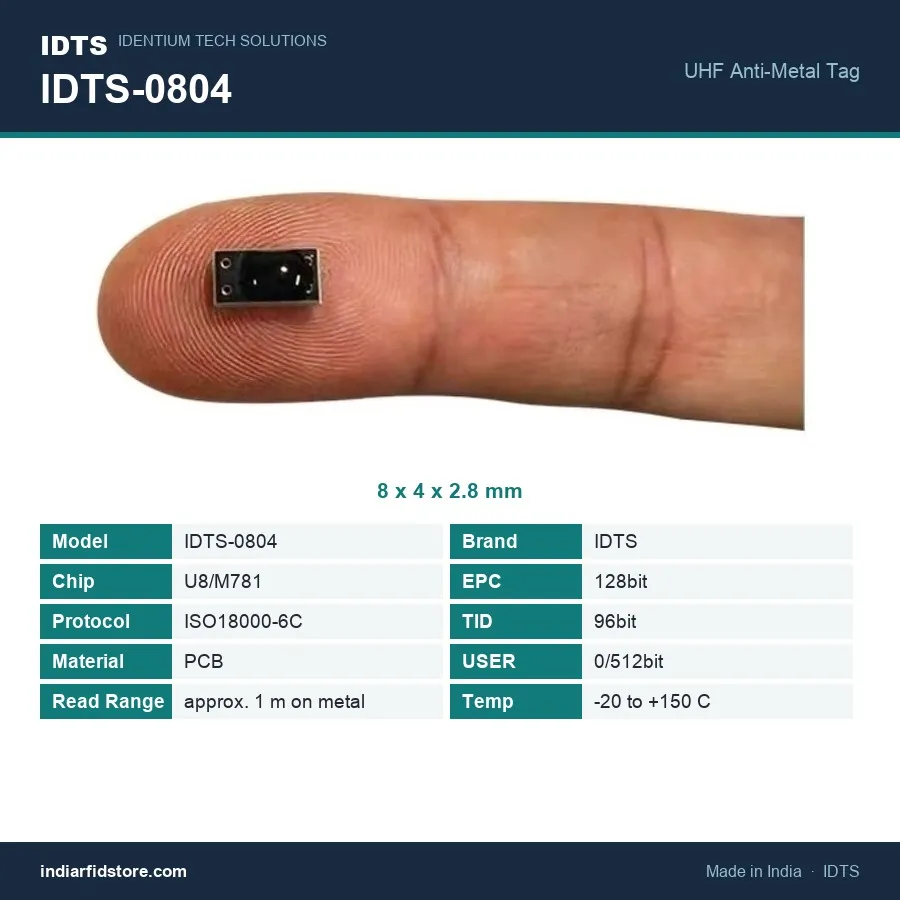

Specifications
Datasheet (PDF)| Frequency | 860–960 MHz (covers India's 865–868 MHz band) |
|---|---|
| Protocol | ISO 18000-6C |
| Chip | U8 / M781 |
| Memory | EPC 128 bits; TID 96 bits; User 0 / 512 bits (depends on chip) |
| Read range | Approx. 1 m on metal |
| Dimensions | 8 × 4 × 2.8 mm (2.8 mm at the highest point) |
| Material | PCB with black moulded top and metallised rim |
| Mounting | Two small plated holes at one end (diameter not specified) |
| Colour | Black |
| Operating temperature | −20 °C to +150 °C |
Frequently asked questions
What read range does the IDTS-0804 give on metal?
What is the difference between the U8 and M781 versions?
How is it mounted?
Is it small enough for a board edge or a tool shank?
