UHF Anti-Metal RFID PCB Tag IDTS-1504 (15 × 4 × 3.5 mm, Screw Mount)
A slim 15 × 4 mm UHF anti-metal PCB stick with a through-hole at each end, made to be screwed onto narrow metal parts such as tool shanks and brackets, reading approx. 1 m on metal.
₹89
per piece + 18% GST
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 181 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request
Key features
- 15 × 4 mm footprint; 3.5 mm at the raised dome
- Through-hole at each end for screw mounting
- Approx. 1 m read range on metal
- U8 chip on ISO 18000-6C, 128-bit EPC, 96-bit TID
- Rated −20 °C to +150 °C
- Frequency
- 860–960 MHz (covers India's 865–868 MHz band)
- Protocol
- ISO 18000-6C
- Chip
- U8
- Read range
- Approx. 1 m on metal
Overview
A screw-mount anti-metal RFID tag for narrow parts

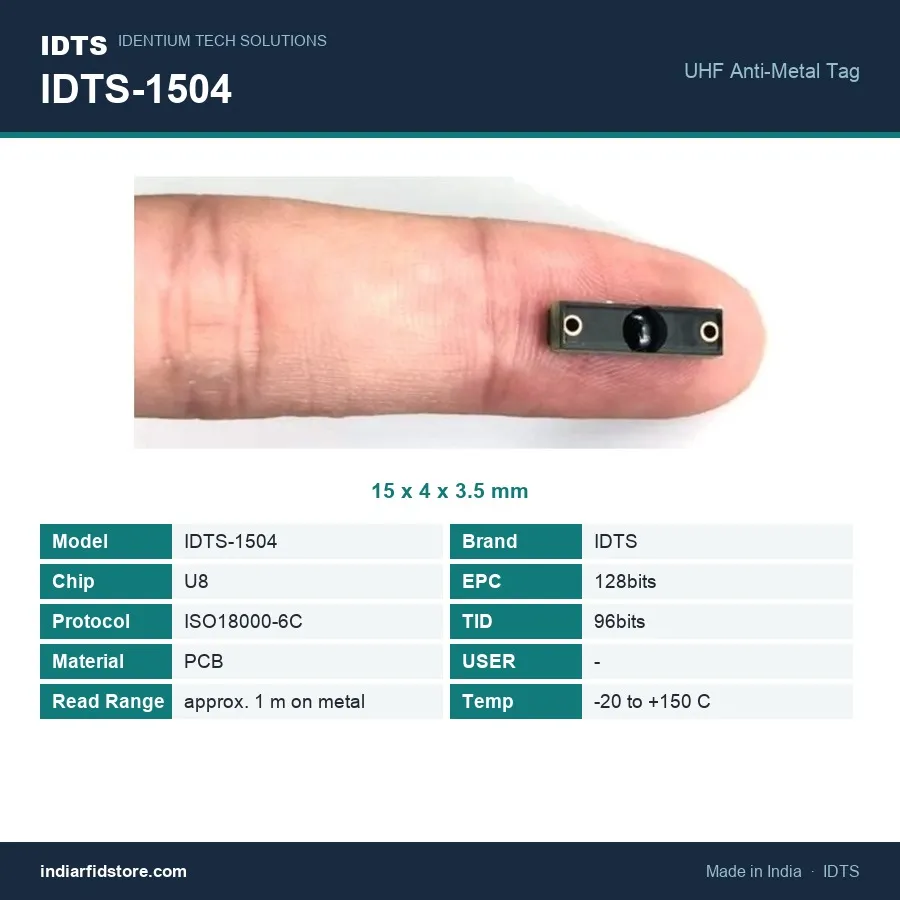

The IDTS-1504 is a 15 mm stick only 4 mm wide, with a raised black dome over the chip that brings it to 3.5 mm. A through-hole at each end lets you screw it down, and that is the main reason to choose it. On a spanner, a die block or a narrow bracket that is dropped, washed and handled every shift, a screwed tag stays put where an adhesive one can eventually lift.
Close-range reads at the issue counter
Quoted read distance is approx. 1 m on metal. That suits issue and return at a tool-crib window, where each item passes a reader at arm's length, and handheld checks along a tool board. If you need a screwed fixing with more reach, the 13 × 7 mm IDTS-1307 reads approx. 2.5 m but needs a face about 7 mm wide.
Before you drill
The hole diameter is not specified for this model, so measure a sample before drilling and tapping a batch of tools. The U8 chip's 128-bit EPC takes your asset number, and the 96-bit TID is a fixed factory serial. Any ISO 18000-6C UHF handheld reader will read it. Compare other shapes in the PCB and ceramic tag range.
Typical applications
- Spanners and torque tools
- Dies and gauges
- Narrow brackets
- Switchgear parts
- Railway small fittings
- Process plant valves
Specifications
Datasheet (PDF)| Frequency | 860–960 MHz (covers India's 865–868 MHz band) |
|---|---|
| Protocol | ISO 18000-6C |
| Chip | U8 |
| Memory | EPC 128 bits; TID 96 bits |
| Read range | Approx. 1 m on metal |
| Dimensions | 15 × 4 × 3.5 mm (3.5 mm at the raised dome) |
| Material | PCB |
| Mounting | Two through-holes for screws, one at each end (diameter not specified) |
| Colour | Black with green PCB edge |
| Operating temperature | −20 °C to +150 °C |
Frequently asked questions
How is the IDTS-1504 fixed to a tool or fixture?
Does it read when screwed straight onto metal?
Should I choose the IDTS-1504 or the IDTS-1204?
Which reader suits tool-crib issue and return?
