Model IDTS-D08IdentiumIn Stock
Mini UHF On-Metal RFID Tag IDTS-D08 (8 mm Round PCB Disc)
An 8 mm round on-metal UHF RFID tag, 4 mm thick, for hand tools, precision instruments and small metal hardware. Listed at about 1.5 m on metal, with a 1.4 mm hole for mechanical fixing.
₹89
per piece + 18% GST
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 177 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request a sample of this tag
Key features
- 8 mm diameter, 4 mm thick: fits tool shanks and instrument handles
- Approx. 1.5 m read range when mounted on metal
- 1.4 mm hole for pin, rivet or small-screw fixing
- U8 chip on ISO 18000-6C, 128-bit EPC, 96-bit TID
- Rated from −20 °C to +150 °C
- Frequency
- 860–960 MHz (covers India’s 865–868 MHz band)
- Protocol
- ISO 18000-6C
- Chip
- U8
- Read range
- Approx. 1.5 m on metal (depends on reader and mounting)
Overview
A mini on-metal RFID tag sized for tools and instruments

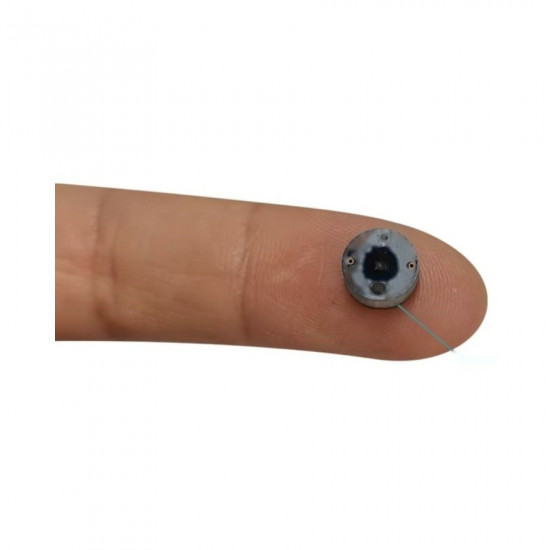

The IDTS-D08 is an 8 mm round PCB disc, 4 mm thick, with a dark body and a silver metallic rim. At that size it fits on a spanner shank, a gauge body or the corner of a network switch, places where a full asset plate has no room. It is an anti-metal design, so it is intended to be fixed straight onto the metal.
Range compared with the 5 mm and 12 mm discs
Listed at approximately 1.5 m on metal, the D08 reads about three times as far as the 5 mm IDTS-D05 (about 0.5 m) while staying under 1 cm across. That gives a handheld user more working distance at a tool crib or during an IT audit. If the item can take a 12 mm disc, the IDTS-D12 is listed at about 2 m and adds two screw holes.
Mechanical fixing
A 1.4 mm hole in the disc face takes a pin, rivet or very small screw, so the tag does not rely on adhesive alone. That matters for tools that are dropped, oiled and wiped many times a shift. More sizes are listed under PCB and ceramic RFID tags.
Typical applications
- Spanners and torque wrenches
- Precision instruments
- Network switches and routers
- Jigs and fixtures
- Small valves and fittings
- Metal enclosures

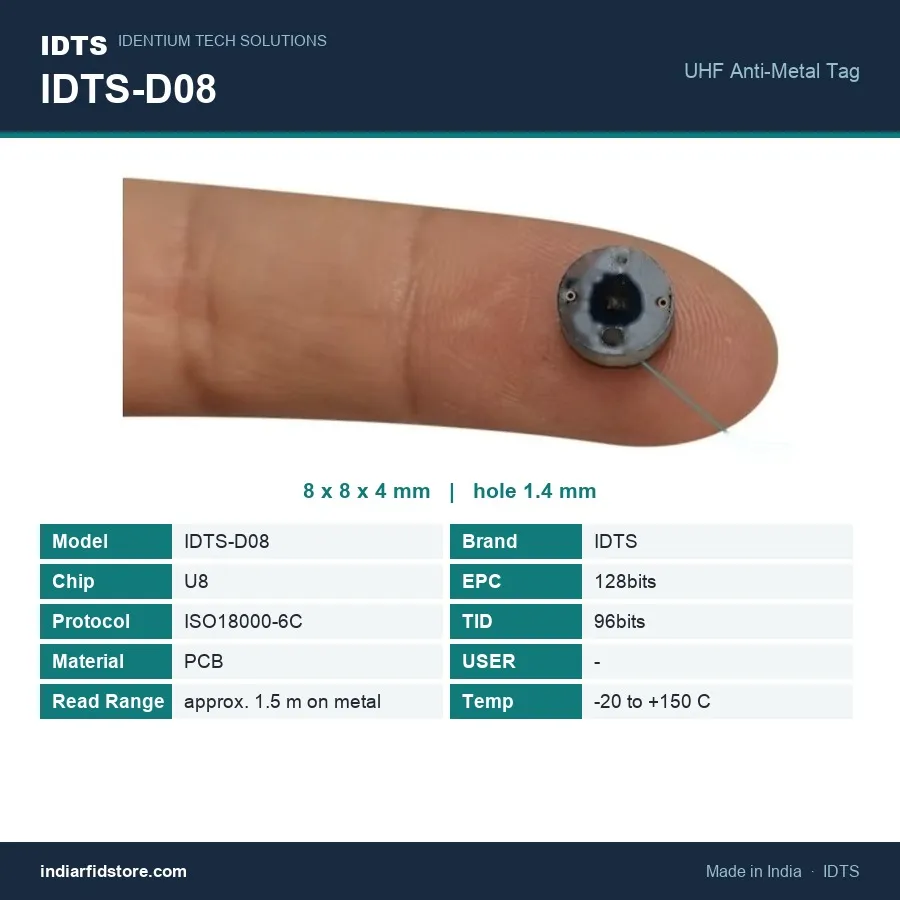

Specifications
Datasheet (PDF)| Frequency | 860–960 MHz (covers India’s 865–868 MHz band) |
|---|---|
| Protocol | ISO 18000-6C |
| Chip | U8 |
| Memory | EPC 128 bits; TID 96 bits |
| Read range | Approx. 1.5 m on metal (depends on reader and mounting) |
| Dimensions | Ø 8 mm × 4 mm |
| Material | PCB |
| Mounting | 1.4 mm hole diameter |
| Colour | Dark grey/black with a metallic silver rim |
| Operating temperature | −20 °C to +150 °C |
Frequently asked questions
Will the IDTS-D08 read on a steel tool?
Yes. It is an anti-metal tag built to be mounted directly on metal, where a standard UHF label would detune. It is listed at approximately 1.5 m on metal; reader power, antenna and the shape of the tool all affect the result.
How is the D08 fixed?
The disc has a 1.4 mm hole for a pin, rivet or suitably small screw. It can also be bonded, which adds a second hold on tools that are handled heavily.
D05, D08 or D12: which should I choose?
Pick the largest disc that sits flat on the item. Listed ranges on metal are about 0.5 m for the 5 mm D05, 1.5 m for the 8 mm D08 and 2 m for the 12 mm D12.
Which reader works with it?
Any ISO 18000-6C (EPC Gen2) UHF reader operating in India’s 865–868 MHz band. For tool cribs and audits, a UHF handheld reader is the usual choice.
