Model ID-BLE-T01Identium
BLE Asset Tag Beacon ID-BLE-T01 (CR2032, BLE 5.4)

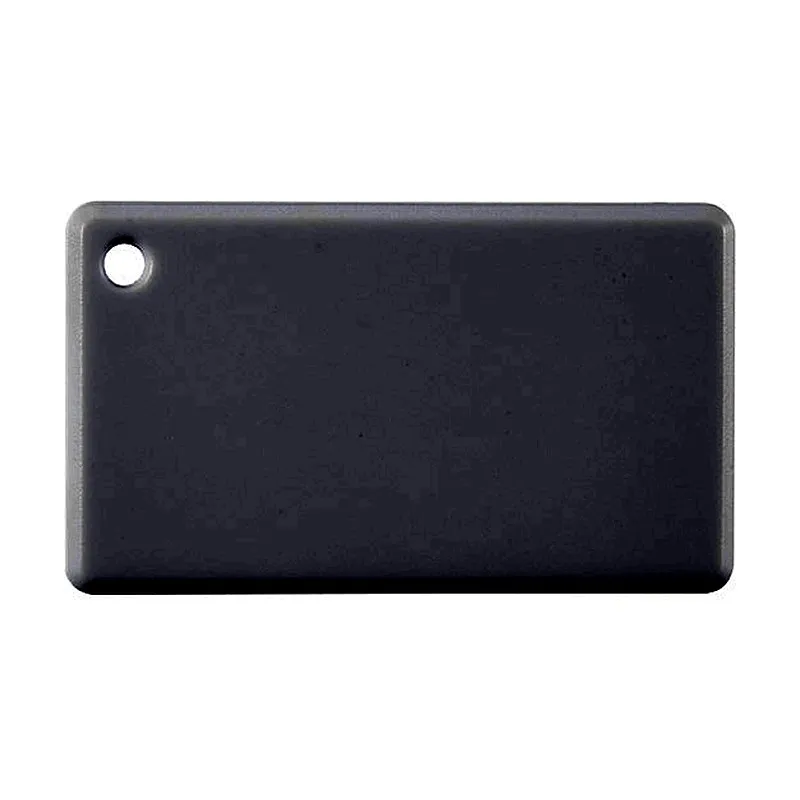

A slim BLE 5.4 asset tag, 25 × 44 mm and under 6 mm thick, on a replaceable CR2032 cell. It broadcasts iBeacon and Eddystone up to 70 m in open space for gateway or phone-based tracking of equipment, returnable items and patrol points.
₹1,250
per piece + 18% GST
Minimum order: 100 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 208 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
Key features
- BLE 5.4 beacon: iBeacon, Eddystone (UID / URL / EID / TLM) or custom data
- Up to 70 m in open space at 0 dBm; TX power −30 to +4 dBm
- Replaceable CR2032 (225 mAh), rated 3 years at 0 dBm / 10 s
- 25 × 44 mm, under 6 mm thick, black ABS, fixed with 3M double-sided adhesive
- Standard T01, anti-tamper T01-K, or anti-tamper + accelerometer T01-KA
- Configured from the Identium Connect app (connectable when interval < 1 s)
- Protocol
- Bluetooth Low Energy 5.4; iBeacon, Eddystone (UID / URL / EID / TLM) and custom data
- Frequency
- 2400–2483.5 MHz (licence-exempt 2.4 GHz band)
- Read range
- Up to 70 m in open space (0 dBm)
- Operating temperature
- −20 °C to +70 °C
Overview
What the ID-BLE-T01 BLE asset tag does
The ID-BLE-T01 is a thin Bluetooth Low Energy beacon for things you need to find, count or check in: laptops and IT equipment, instruments, returnable items and guard-tour checkpoints. It broadcasts an iBeacon, Eddystone or custom packet every 3 s by default (adjustable from 100 ms to 10 s) on the licence-exempt 2.4 GHz band, and reaches up to 70 m in open space at 0 dBm.
How the tag is read
- Gateways: ID-BGW-02 BLE gateways pick up the broadcasts and forward them over Wi-Fi, Ethernet or 4G to your server. Signal strength (RSSI) seen by nearby gateways places each tag in a zone, to roughly 10 m.
- Phones: apps on iOS 7.0+ and Android 4.3+ can detect the tag for attendance check-ins, patrol points and proximity messages.
The T01 is an RSSI tag and is not listed for AOA positioning. If you need sub-metre location from a tag with the same 25 × 44 mm footprint, look at the AOA-capable ID-BLE-A07.
Choosing a version
The standard T01 is a plain iBeacon tag. The T01-K adds an anti-tamper function for assets someone might strip the tag from, and the T01-KA adds an accelerometer sensor as well, for motion data.
Battery and installation
The 225 mAh CR2032 cell is rated for about 3 years at 0 dBm and a 10 s interval; a shorter interval or higher power uses it faster. The cell is replaceable in the field, and the tag sticks on with 3M double-sided adhesive. The Identium Connect app sets the broadcast interval and transmit power; it can connect to the tag while the interval is below 1 s. For larger, longer-life or AOA-capable tags, browse BLE beacons and asset tags.
Typical applications
- IT equipment tracking
- Instrument tracking
- Returnable item tracking
- Staff attendance check-in
- Guard tour checkpoints
- Mall and exhibition wayfinding
- Proximity marketing
Specifications
Datasheet (PDF)| Variants | ID-BLE-T01 standard iBeacon tag (no hole on the back), ID-BLE-T01-K anti-tamper, ID-BLE-T01-KA anti-tamper + accelerometer |
|---|---|
| Protocol | Bluetooth Low Energy 5.4; iBeacon, Eddystone (UID / URL / EID / TLM) and custom data |
| Frequency | 2400–2483.5 MHz (licence-exempt 2.4 GHz band) |
| Operating mode | Broadcasting |
| Transmit power | −30 to +4 dBm (default 0 dBm) |
| Broadcast interval | 100 ms – 10 s (default 3 s) |
| Read range | Up to 70 m in open space (0 dBm) |
| Positioning | RSSI (zone level) with ID-BGW-02 gateways; not an AOA tag |
| Connection | Password-protected connection when the broadcast interval is below 1 s; non-connectable mode; anti-malicious-connection function |
| Configuration | Identium Connect mobile app (app connection when the broadcast interval is below 1 s) or OTA tools |
| Compatible with | ID-BGW-02 BLE gateway; iOS 7.0+ and Android 4.3+ phones |
| Battery | CR2032 coin cell, 225 mAh, replaceable; DC 3 V |
| Battery life | Up to 3 years (0 dBm / 10 s) |
| Current | Quiescent ≤ 3 µA; peak 7 mA; average < 7 µA (0 dBm / 3 s), < 3 µA (0 dBm / 10 s) |
| Dimensions | 25 × 44 mm, under 6 mm thick including the 3M adhesive |
| Material | ABS |
| Colour | Black |
| Mounting | 3M double-sided adhesive |
| Water resistance | Life-waterproof (no IP rating specified) |
| Operating temperature | −20 °C to +70 °C |
| Storage temperature | −20 °C to +70 °C |
| Humidity | 10–90 % operating, 5–90 % storage (non-condensing) |
| Packaging | 36 per inner box (370 × 268 × 33 mm, 280 g); 432 per carton (382 × 280 × 360 mm, 3.8 kg) |
Frequently asked questions
How is the ID-BLE-T01 read?
By ID-BGW-02 BLE gateways, which forward its broadcasts to your server over Wi-Fi, Ethernet or 4G for zone-level (RSSI) location, or by an app on an iOS 7.0+ or Android 4.3+ phone. It sends standard iBeacon and Eddystone frames.
What range and battery life should I plan for?
Up to 70 m in open space at 0 dBm; walls, metal and people shorten this indoors. The 225 mAh CR2032 is rated about 3 years at 0 dBm / 10 s, and a faster interval or higher power reduces that. The cell is replaceable.
What is the difference between T01, T01-K and T01-KA?
T01 is the standard iBeacon tag. T01-K is the anti-tamper version, and T01-KA adds an accelerometer sensor to the anti-tamper version.
Can the T01 be used for sub-metre AOA positioning?
No, it is not listed as AOA-capable. For sub-metre positioning with ID-AOA-GW25 anchors, choose an AOA tag such as the ID-BLE-A07 (same 44 × 25 mm footprint) or the larger ID-BLE-A20.
How do I change its settings?
With the Identium Connect mobile app or OTA tools. The app connection is password-protected and is available when the broadcast interval is below 1 s; the tag can also be set to non-connectable.
