BLE Gateway ID-BGW-02 (Ethernet + Wi-Fi or 4G, PoE)
An industrial Bluetooth 4.2 / 5.0 gateway with a PA + LNA for long-range scanning. It picks up BLE beacons, tags and sensors and forwards their data to your server over Ethernet, Wi-Fi or 4G using UDP, TCP or MQTT. Indoor and outdoor versions.
₹28,000
per piece + 18% GST
Minimum order: 1 piece · the final price for your quantity is confirmed in the quote
View datasheet PDF · 202 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
Key features
- Bluetooth 4.2 / 5.0 with PA + LNA: rated scan distance >100 m, connection 30–50 m
- Scans 300+ Bluetooth devices per second; up to 20 simultaneous connections
- Wi-Fi backhaul (-P, -M) or 4G LTE (-PC, -MC); every version has an Ethernet / PoE port
- Sends data by UDP, TCP or MQTT in JSON or HEX; filters by name, RSSI or MAC
- PoE (IEEE 802.3at) or 6–28 V DC power; remote firmware upgrade

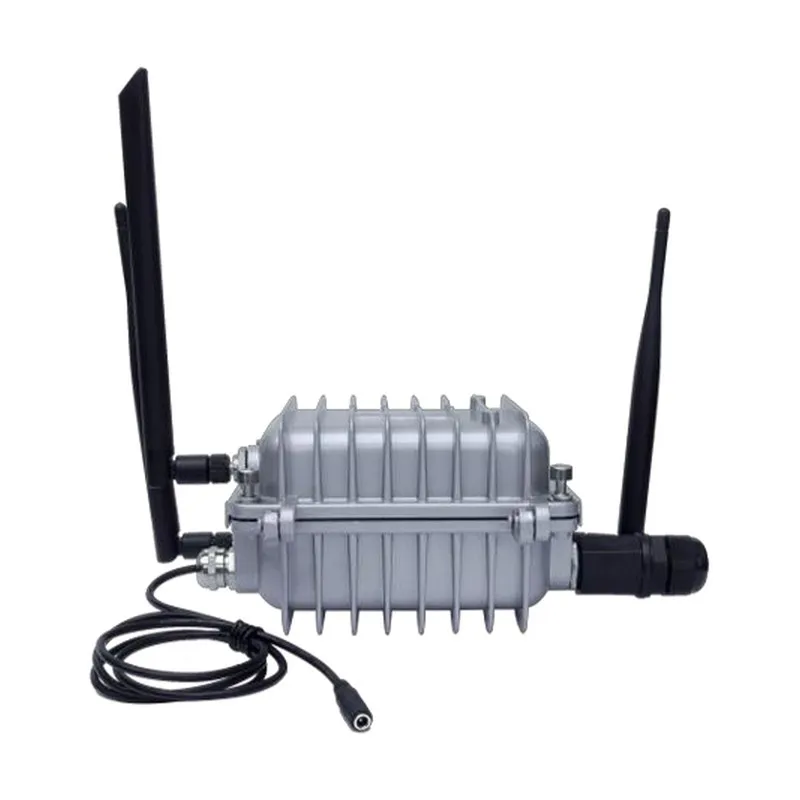

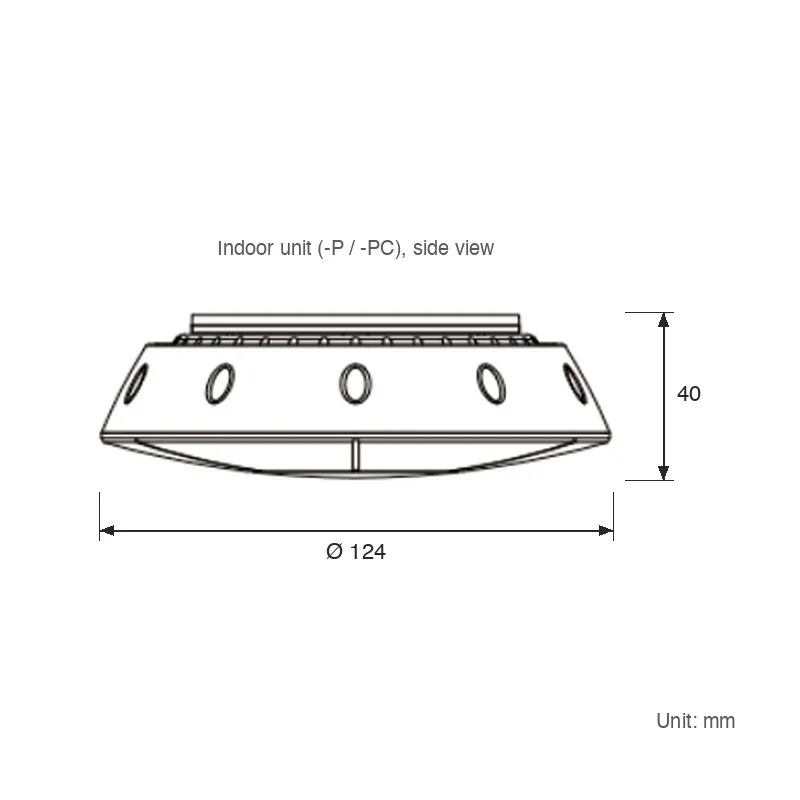

- Indoor ABS + PC (Ø 124 × 40 mm) and outdoor metal (153 × 137 × 97 mm) housings
- Frequency
- Licence-exempt 2.4 GHz band (Bluetooth and Wi-Fi)
- Scanning distance
- More than 100 m rated (actual distance is set by the beacon's own range and the site)
- Connection distance
- 30–50 m
- Data protocols
- UDP, TCP, MQTT; JSON or HEX data formats
Overview
What the ID-BGW-02 BLE gateway does
The ID-BGW-02 is the receiver in a Bluetooth tracking system. It listens for BLE beacons, work cards, wristbands and sensors around it and forwards what it hears to your server. A built-in power amplifier (PA) and low-noise amplifier (LNA) extend coverage, so a site needs fewer gateways, and one gateway can scan more than 300 devices per second. The rated scanning distance is more than 100 m, but the actual read distance is set by the beacon's own rating (70 m or 100 m in open space for Identium tags) and is shorter through walls and racking.
How a BLE gateway system works
- Install the gateway. Mount it to suit the site and power it by PoE or a DC adapter.
- Tag what you track. Fix a BLE beacon to each asset or tool, or give staff a wearable or work card.
- Collect. Broadcasts the gateway picks up (after any name, RSSI or MAC filters) are uploaded by UDP, TCP or MQTT, in JSON or HEX.
- Act. Your platform parses the data for location, alerts and asset records, and can send commands back to connected devices.
Location comes from signal strength: comparing the RSSI of one tag at several gateways lets the server estimate distance and triangulate it to zone level, roughly 10 m. Where you need sub-metre positions, add ID-AOA-GW25 AOA anchors; the AOA-capable tags work with both.
Indoor or outdoor, Wi-Fi or 4G
| Version | Housing | Backhaul |
|---|---|---|
| ID-BGW-02-P | Indoor, ABS + PC, Ø 124 × 40 mm | Wi-Fi |
| ID-BGW-02-PC | Indoor, ABS + PC, Ø 124 × 40 mm | 4G |
| ID-BGW-02-M | Outdoor, metal, 153 × 137 × 97 mm | Wi-Fi |
| ID-BGW-02-MC | Outdoor, metal, 153 × 137 × 97 mm | 4G |
Every version also has a WAN / LAN network port that takes PoE. Choose a 4G version where there is no wired network or Wi-Fi, such as yards, sheds or temporary sites.
Integration and management
Because the gateway speaks UDP, TCP and MQTT, it can report to your own server, a cloud MQTT broker or Identium's RTLS and asset-management platform. Filters by device name, RSSI or MAC address keep unwanted Bluetooth traffic off the network, and firmware and settings can be upgraded remotely. An SDK, demo software and a debugging and packet-analysis tool are available for integrators.
What it reads
The gateway reads Identium BLE beacons and asset tags and wearables and work cards, as well as other Bluetooth devices such as wristbands, door locks and sensors. Up to 20 devices can be connected at once for two-way data and remote control.
Bluetooth and Wi-Fi on the ID-BGW-02 work in the licence-exempt 2.4 GHz band (2400–2483.5 MHz).
Typical applications
- Hospital asset tracking
- Elderly care monitoring
- Warehouse asset tracking
- Factory tool management
- Staff attendance check-in
- Sensor data collection
- Indoor zone positioning
- Retail indoor positioning
Specifications
Datasheet (PDF)| Variants | ID-BGW-02-P (indoor, Wi-Fi), ID-BGW-02-PC (indoor, 4G), ID-BGW-02-M (outdoor, Wi-Fi), ID-BGW-02-MC (outdoor, 4G) |
|---|---|
| Bluetooth | Bluetooth 4.2 / 5.0, integrated PA + LNA, nRF52832 Bluetooth chip |
| Frequency | Licence-exempt 2.4 GHz band (Bluetooth and Wi-Fi) |
| Scanning distance | More than 100 m rated (actual distance is set by the beacon's own range and the site) |
| Connection distance | 30–50 m |
| Capacity | Scans 300+ Bluetooth devices per second; caches up to 5000 devices per cycle; 20 concurrent connections |
| Bluetooth transmit power | 0 to +18 dBm |
| Bluetooth receiver sensitivity | -104 dBm |
| Bluetooth data rate | 1 Mbps / 2 Mbps (uncoded) |
| Bluetooth security | AES hardware encryption |
| Filtering | By device name, signal strength (RSSI) or MAC address |
| Wi-Fi | -P and -M versions (Wi-Fi backhaul): IEEE 802.11 b/g/n, up to 150 Mbps (HT40); WPA / WPA2, WEP, TKIP, AES; bridge, gateway or AP-client mode |
| 4G LTE | -PC and -MC versions: LTE-TDD / LTE-FDD / TD-SCDMA / UMTS / EVDO / EDGE / GPRS / GSM / CDMA |
| Ports | 1 × WAN / LAN adaptive network port (PoE input), power port, reset button; indoor -P / -PC: hold reset 5 s for factory settings |
| Data protocols | UDP, TCP, MQTT; JSON or HEX data formats |
| Processor and memory | 580 MHz MIPS24KEc, 64 MB DDR2 DRAM, 16 MB flash |
| Power | PoE 48 V (IEEE 802.3at) or DC 6–28 V; adapter DC 12 V / 1 A (indoor), DC 12 V / 2 A (outdoor) |
| Working current | 180 mA @ 12 V without 4G module; 280 mA @ 12 V with 4G module |
| Dimensions | Indoor: Ø 124 × 40 mm; outdoor: 153 × 137 × 97 mm |
| Material | Indoor: ABS + PC case; outdoor: metal case |
| Mounting | Outdoor versions supplied with mounting / holder accessories |
| Operating temperature | -20 °C to +70 °C |
| Indicators | Indoor -P / -PC: power, network, Wi-Fi and Bluetooth status LEDs |
| Management | Remote (OTA) firmware upgrade and settings, auto-reset, hardware reset |
| Software | Visual demo, SDK, debugging assistant and data-packet analysis tool |
| Packaging | Indoor: 10 per inner box, 20 per outer carton; outdoor: 1 per inner box, 6 per outer carton |
| Compatible with | Identium BLE beacons, asset tags, work cards and wristbands; other Bluetooth beacons, wristbands, door locks and sensors |
Frequently asked questions
How many beacons can one gateway handle?
It scans more than 300 Bluetooth devices per second, caches up to 5000 devices per cycle and holds up to 20 simultaneous connections. How many gateways a site needs depends on its layout and on the beacons: the gateway's rated scanning distance is more than 100 m, but the actual read distance is set by each beacon's own rating (70 m or 100 m in open space for Identium tags) and is shorter through walls and racking.
Which version should I order?
ID-BGW-02-P (indoor) or ID-BGW-02-M (outdoor metal case) for Wi-Fi backhaul; ID-BGW-02-PC (indoor) or ID-BGW-02-MC (outdoor) where you need 4G. All versions have a network port that also takes PoE.
Can the gateway give the exact position of a tag?
With several ID-BGW-02 gateways, the server estimates a tag's position from signal strength (RSSI): zone-level, around 10 m. A single gateway only tells you a tag is in range. For sub-metre positions, add ID-AOA-GW25 AOA anchors and use AOA-capable tags: ID-BLE-L01, B22, A07, A20, S25, C08 or X11.
How does the data reach my software?
The gateway sends what it receives by UDP, TCP or MQTT, in JSON or HEX format, to your server, a cloud broker or Identium's RTLS platform. You can filter by device name, RSSI or MAC address, and an SDK and demo software are available.
How is it powered?
By PoE (48 V, IEEE 802.3at) or a DC supply from 6 to 28 V. The adapter is 12 V / 1 A for indoor versions and 12 V / 2 A for outdoor versions. Current draw is 180 mA at 12 V, or 280 mA with the 4G module.
