Model ID-AOA-GW25Identium

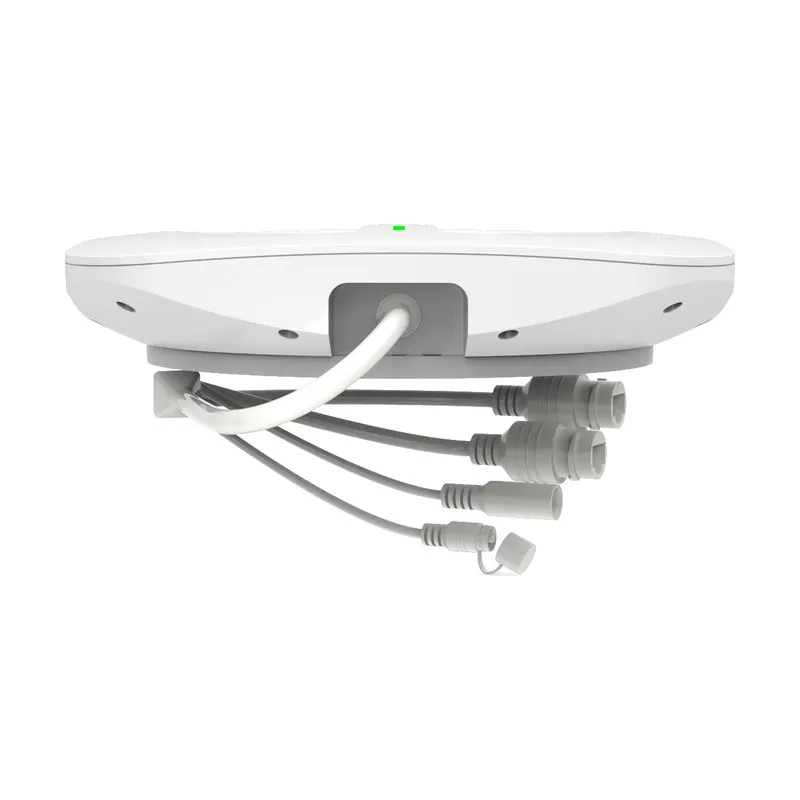

Bluetooth AOA Positioning Anchor ID-AOA-GW25 (Sub-Metre, IP66)
A ceiling- or side-mounted Bluetooth AOA anchor that measures the angle of arrival of signals from AOA-capable beacons and fixes their positions to 0.1–1 m. Use it with Identium's AOA-capable BLE tags and work cards for real-time indoor location of people and assets.
₹55,000
per piece + 18% GST
Minimum order: 1 piece · the final price for your quantity is confirmed in the quote
View datasheet PDF · 182 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
Key features
- Bluetooth angle-of-arrival positioning, 0.1–1 m with AOA-capable Identium tags
- Phased-array direction finding in an 18 × 18 × 4 cm housing
- Covers a radius of up to about twice its mounting height (3 m ceiling: up to ~6 m)
- Locates AOA-capable ID-BLE-L01, B22, A07, A20, S25, C08 and X11 tags
- Standard PoE or DC power; ceiling or side mounting
- IP66 housing, operates from -20 °C to +60 °C
- Frequency
- Bluetooth, licence-exempt 2.4 GHz band
- Operating temperature
- -20 °C to +60 °C
Overview
What the ID-AOA-GW25 Bluetooth AOA anchor does
The ID-AOA-GW25 is a Bluetooth Angle-of-Arrival (AOA) anchor for indoor real-time location. A phased antenna array in its 18 × 18 × 4 cm housing measures the angle at which each broadcast from an AOA-capable beacon arrives, and the system turns those angles into a position fix accurate to 0.1–1 m, depending on mounting height and layout. Tracking by signal strength (RSSI) with ordinary gateways only places a tag within about 10 m.
AOA compared with other indoor positioning
| Method | Accuracy | Relative cost | Infrastructure |
|---|---|---|---|
| Bluetooth AOA | Under 1 m | 1× | Dedicated anchors |
| Bluetooth RSSI | About 10 m | 1× | Can reuse Bluetooth mesh nodes |
| Wi-Fi RSSI | About 10 m | 2–4× | Can reuse Wi-Fi access points |
| UWB | About 10 cm | 5–10× | Dedicated anchors |
AOA is the practical middle ground: far better accuracy than RSSI zoning, while the tags keep beacon-class cost and battery life. Wi-Fi and UWB tags draw 10–25 times as much power. The trade-off is a new layer of anchor infrastructure.
Planning anchor coverage
The anchor is ceiling- or side-mounted. Its coverage radius is up to about twice the installation height, so an anchor on a 3 m ceiling covers a circle of up to about 6 m radius. Larger floors are covered by tiling several anchors. Each one runs on standard PoE or a DC supply, and the IP66 housing is rated for -20 °C to +60 °C.
Tags that work with it
Sub-metre fixes need an AOA-capable tag. In the Identium range these are the ID-BLE-L01 industrial beacon, the compact ID-BLE-B22, the ID-BLE-A07 and A20 anti-tamper asset tags, the ID-BLE-S25 and C08 work cards, and the ID-BLE-X11 buzzer beacon. The same tags also work in plain RSSI mode with ID-BGW-02 gateways, so you can pilot a site with RSSI zones and add anchors only where sub-metre position matters, without re-tagging.
From anchor to live map
Anchors report angle data to the positioning server or cloud. Identium's RTLS platform shows tags on a live map, manages anchors, tags, asset bindings, zones and alerts, and forwards events over MQTT, UDP or HTTP to MES, ERP and asset-management systems. In a hospital, for example, staff wearing work cards and equipment carrying AOA tags can be placed in the right room or bay rather than just the right wing.
The number of anchors depends on ceiling height and floor layout; plan coverage from a floor plan and the mounting height.
Typical applications
- Smart factories
- Logistics warehouses
- Hospital staff and equipment
- Elderly care homes
- Data centres
- Security facilities
- Exhibition halls
- Sports venues
Specifications
Datasheet (PDF)| Positioning method | Bluetooth Angle of Arrival (AOA), phased-array direction finding |
|---|---|
| Positioning accuracy | 0.1–1 m (with AOA-capable Identium tags; depends on mounting height and layout) |
| Coverage | Radius up to about twice the installation height (e.g. 3 m ceiling ≈ 6 m radius); multiple anchors tile larger areas |
| Dimensions | 18 × 18 × 4 cm |
| Mounting | Ceiling or side mount |
| Power | Standard PoE or DC power supply |
| Frequency | Bluetooth, licence-exempt 2.4 GHz band |
| Compatible with | AOA positioning: ID-BLE-L01, ID-BLE-B22, ID-BLE-A07, ID-BLE-A20, ID-BLE-S25, ID-BLE-C08, ID-BLE-X11. Data interface supports Bluetooth 4.0+ beacon terminals and mobile phones |
| Data output | Angle (IQ) data to the positioning server or cloud |
| IP rating | IP66 |
| Operating temperature | -20 °C to +60 °C |
| Platform | Works with the Identium RTLS / asset-management platform (the platform forwards events to MES / ERP over MQTT, UDP or HTTP) |
Frequently asked questions
How accurate is the ID-AOA-GW25?
It is specified for 0.1–1 m positioning accuracy with AOA-capable tags. Results on site depend on mounting height, anchor spacing and floor layout. For comparison, RSSI tracking with gateways alone is around 10 m.
How much area does one anchor cover?
The coverage radius is up to about twice the installation height: up to roughly 6 m for an anchor on a 3 m ceiling. Larger areas are covered by tiling several anchors.
Which tags can it locate to sub-metre accuracy?
The AOA-capable Identium tags: ID-BLE-L01, B22, A07, A20, S25, C08 and X11. The anchor's data interface also supports Bluetooth 4.0+ beacon terminals and mobile phones; check with us before planning sub-metre positioning around any other tag.
Do I still need ID-BGW-02 gateways?
Anchors report angle data to the positioning server themselves. ID-BGW-02 gateways are useful for zone-level RSSI tracking in the rest of a site; the AOA-capable tags work with both, so you can start with gateways and add anchors later without re-tagging.
How is it installed and powered?
It mounts on the ceiling or the side, and runs on standard PoE or a DC power supply. The housing is IP66 and operates from -20 °C to +60 °C.
