Large BLE Asset Tag ID-BLE-X62 (2700 mAh Battery)

A large-format BLE asset tag with a 2700 mAh battery

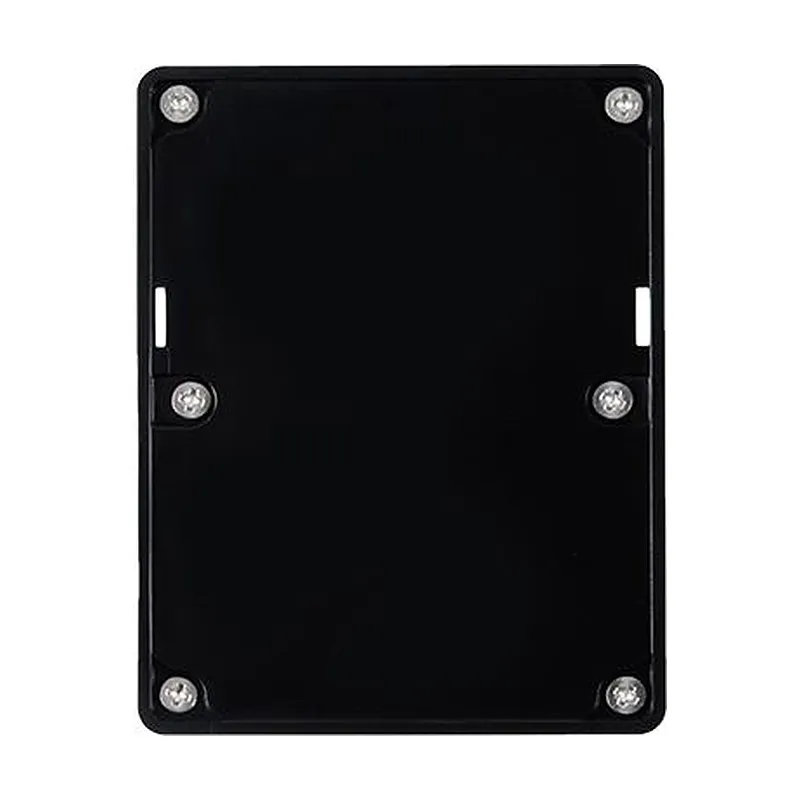

The ID-BLE-X62 is a large-format Bluetooth Low Energy asset tag: 66 × 50 × 27.9 mm and 50 g, in black or white ABS, built around a 2700 mAh, 3 V battery. It is meant for big items where a bulky tag is not a problem, such as production machines, trolleys, medical equipment and warehouse handling gear.

Tracking large equipment by zone

Install ID-BGW-02 gateways in the halls, wards or aisles where the equipment is used. Each one hears the X62's iBeacon and Eddystone frames, up to 70 m in open air on the licence-exempt 2.4 GHz band, and reports them over Ethernet, Wi-Fi or 4G, so your system knows which area each machine is in.

For stock-takes, staff can walk the floor with a BLE phone app and tick off tagged items as they are detected. Choose black or white to match the equipment or to stand out on it. Transmit power (−40 to +4 dBm) and the broadcast interval (default 10 s) are set in the Identium Connect app, and the operating temperature is −20 °C to +70 °C.

What the X62 is, and what it is not

Its battery rating is 5 years at 0 dBm and a 10 s interval, the same as the smaller ID-BLE-A20 with its 600 mAh CR2450. Battery life at other interval or power settings is not specified.

The X62 is an RSSI tag. It is not listed for AOA positioning with ID-AOA-GW25 anchors, and no tamper variant is listed. If you need AOA or a tamper-proof (A20-K) version, choose the A20; if you specifically need a mechanical tamper alarm, choose the ID-BLE-A07-K.
