Model ID-BLE-T08Identium
Pallet BLE Beacon ID-BLE-T08 (BLE 5.4, IP68, IK08)
A rugged Bluetooth 5.4 bar tag for pallets and crates, IP68 and IK08 in black ABS. Two replaceable CR2032 cells last up to 40 months, depending on interval, transmit power and temperature. It works from -40 °C to +85 °C, including frozen cold chain.
₹1,250
per piece + 18% GST
Minimum order: 100 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 201 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
Key features
- Slim 116 × 25.1 × 9.1 mm bar tag, about 25 g, with dual mounting ears
- IP68 waterproof and dustproof, IK08 shock-rated ABS housing
- Two replaceable CR2032 cells (440 mAh): up to 40 months, by interval and Tx power
- BLE 5.4, iBeacon or Eddystone format, 100 m range (open space)
- Operates from -40 °C to +85 °C, for refrigerated and frozen logistics
- Accidental-shutdown protection, OTA firmware updates, SDK available
- Frequency
- 2400–2483.5 MHz (licence-exempt 2.4 GHz band)
- Range
- 100 m (open space)
- Operating temperature
- -40 °C to +85 °C
Overview
A rugged pallet BLE beacon for warehouse and cold-chain tracking

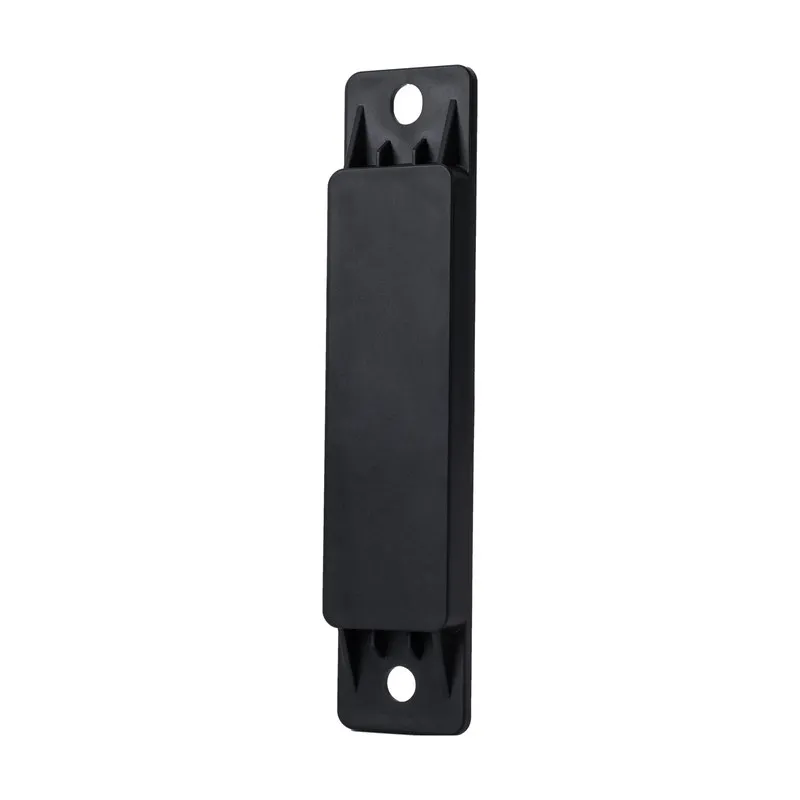

The ID-BLE-T08 is a Bluetooth 5.4 locator tag shaped as a slim bar, 116 × 25.1 × 9.1 mm and about 25 g, with a mounting ear at each end. Its black ABS housing is IP68 (waterproof and dustproof) and IK08 shock-rated, built for the knocks and moisture of everyday pallet and crate handling.
Two replaceable CR2032 coin cells (440 mAh) give up to 40 months of battery life, depending on advertising interval, transmit power and temperature. It operates from -40 °C to +85 °C, which covers refrigerated and frozen cold-chain work, and accidental-shutdown protection stops it being switched off by mistake.
Reading pallet locations
The T08 broadcasts in iBeacon or Eddystone format, up to 100 m in open space. ID-BGW-02 BLE gateways placed around the warehouse or yard scan these broadcasts and report them to your server over Ethernet, Wi-Fi or 4G, where signal strength (RSSI) shows which zone each pallet is in. Phone apps can also detect the tag for spot checks. AOA positioning is not supported.
Set-up and mounting
UUID, Major, Minor, device name, advertising interval and transmit power are set from the Identium Connect Android app, and an SDK is available for your own software. Fix the tag with screws through the ears (102.55 mm hole pitch) and/or the 3M adhesive base; the tape bonds best to clean, dry surfaces between 21 °C and 38 °C.
If pallets only need to be counted as they pass a dock door, a passive UHF RFID pallet tag and a gate reader may be enough. The T08 suits sites that want to see each pallet's zone at any time, not only at read points.
For other shapes and battery sizes, see BLE beacons and asset tags.
Typical applications
- Pallet tracking
- Crate tracking
- Cold-chain logistics
- Warehouse inventory
- Machinery identification
- Outdoor asset tracking
Specifications

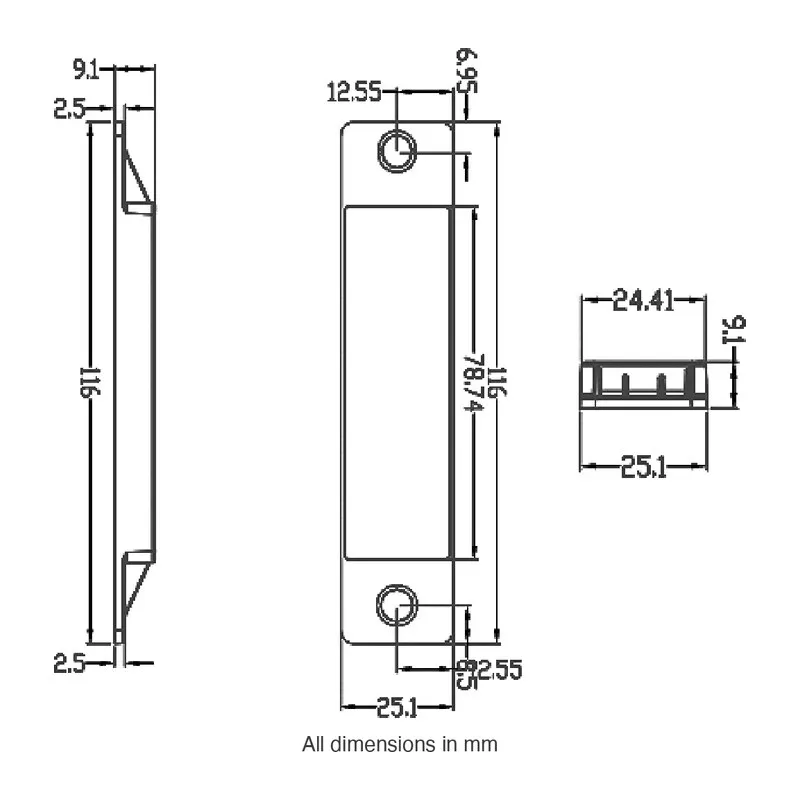

Datasheet (PDF)| Dimensions | 116 × 25.1 × 9.1 mm (mounting-hole pitch 102.55 mm) |
|---|---|
| Weight | About 25 g (with 3M adhesive and screws) |
| Material | ABS |
| Colour | Black |
| Battery | 2 × CR2032 lithium-manganese coin cells, 440 mAh, 3.0 V (replaceable) |
| Battery life | Up to 40 months (depends on advertising interval, transmit power and ambient temperature) |
| Bluetooth | BLE 5.4 |
| Broadcast format | iBeacon or Eddystone (customisable) |
| Frequency | 2400–2483.5 MHz (licence-exempt 2.4 GHz band) |
| Transmit power | -19.5 to +2.5 dBm (default 0 dBm) |
| Range | 100 m (open space) |
| AOA positioning | Not supported (RSSI tracking) |
| IP rating | IP68 |
| Shock rating | IK08 |
| Operating temperature | -40 °C to +85 °C |
| Mounting | Screws through the dual mounting ears and/or the 3M adhesive base |
| Protection | Accidental-shutdown protection |
| Firmware | OTA update supported (connectable firmware type) |
| Configuration | Identium Connect Android app (UUID, Major, Minor, device name, interval, transmit power); SDK available |
| Compatible with | ID-BGW-02 BLE gateway, smartphone apps (iBeacon / Eddystone) |
Frequently asked questions
How long do the batteries last?
Up to 40 months on two CR2032 cells (440 mAh). Life depends on the advertising interval, transmit power and ambient temperature, and both cells are replaceable.
Can it be used in cold storage and freezers?
Yes. It is rated to operate from -40 °C to +85 °C and is IP68, so it suits refrigerated and frozen logistics. In the cold, warm the surface before applying the 3M tape and rely on the screw ears.
What do I need to track pallets with it?
ID-BGW-02 BLE gateways to receive the broadcasts and forward them over Ethernet, Wi-Fi or 4G to your server or tracking platform. The tags are configured with the Identium Connect Android app.
Does the T08 support AOA sub-metre positioning?
No, it is used for RSSI zone tracking. For sub-metre positioning, choose an AOA-capable beacon such as the ID-BLE-B22 or ID-BLE-L01 together with ID-AOA-GW25 anchors.
How is it different from a UHF RFID pallet tag?
A passive UHF tag has no battery and is read only when it passes a reader, typically at a dock door. The T08 broadcasts at its set interval, so gateways can see which zone a pallet is in at any time, in exchange for a battery to replace.
