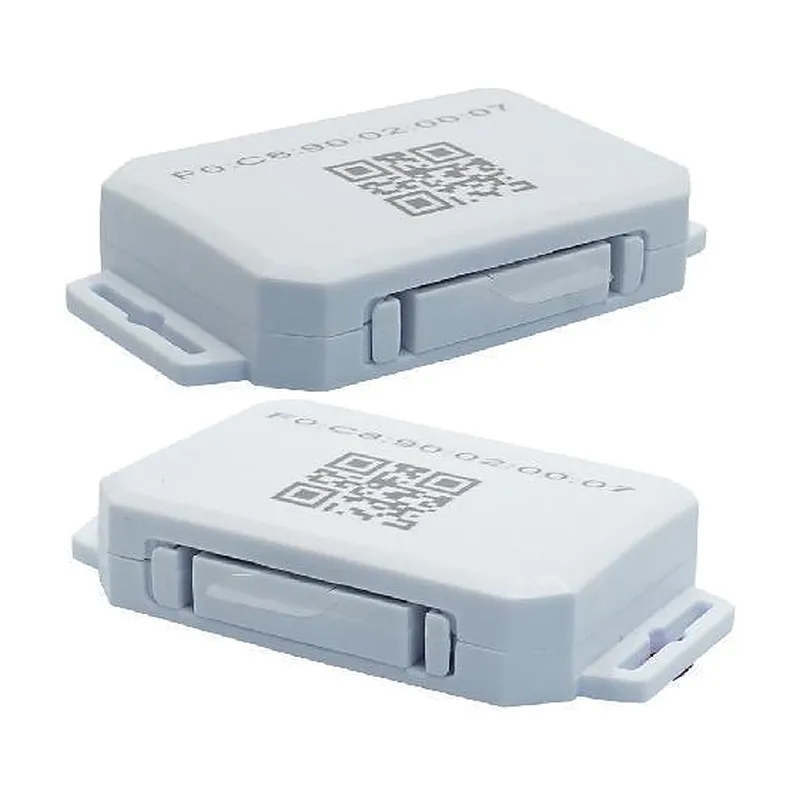

Large Anti-Tamper BLE Asset Tag ID-BLE-A20 (AOA, CR2450)

A large anti-tamper BLE tag with AOA support

The ID-BLE-A20 is the larger of the two AOA-capable anti-tamper tags (A07 and A20). Its 59 × 34 × 11 mm housing (20 g) holds a replaceable 600 mAh CR2450, against the 225 mAh CR2032 in the compact ID-BLE-A07, and its battery rating is 5 years instead of 3, both at 0 dBm / 10 s. Fit it once to hospital devices, factory machines, server racks or warehouse assets and leave it there, wherever a slightly bigger tag has room.

Zone tracking now, sub-metre later

As an RSSI beacon, the A20 is picked up by ID-BGW-02 gateways, which pass its iBeacon and Eddystone broadcasts on over Wi-Fi, Ethernet or 4G for zone-level location (roughly 10 m), and by BLE phone apps. Because it supports Angle-of-Arrival, the same tag can be positioned to 0.1–1 m by ceiling- or side-mounted ID-AOA-GW25 anchors. A site can run on gateways first and bring individual zones up to AOA later while the tags stay on the assets.

Tamper-proof and motion options

• A20: the standard tag.
• A20-K: tamper-proof version.
• A20-KA: tamper-proof + accelerometer.

Installation and radio

The tag fixes with 3M adhesive and works from −20 °C to +70 °C. It transmits on the licence-exempt 2.4 GHz band, with power adjustable from −40 to +4 dBm in the Identium Connect app and a default interval of 10 s; range is up to 70 m in open air.
