RFID Tree & Timber Tag IDTS-TND1 (Nail-In Disc, HF or UHF)
A nail-in RFID tree and timber tag for forest, plantation, timber-yard and tree-census teams: a round ABS disc whose centre spike is driven into wood. It has an HF 13.56 MHz chip as standard, or UHF EPC Gen2 on request for UHF handhelds.
Price on request
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 180 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request
Key features

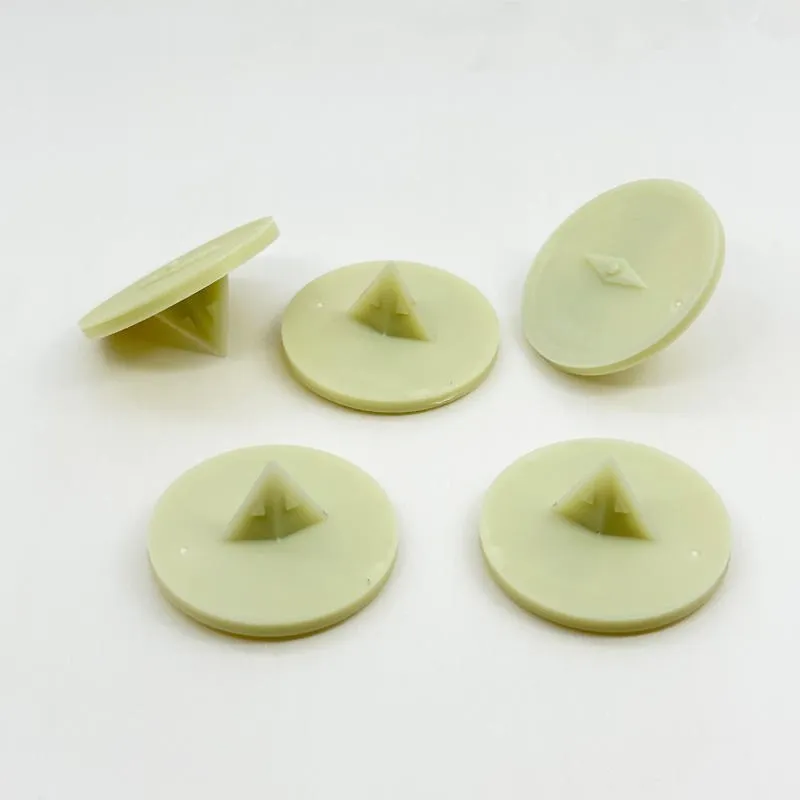

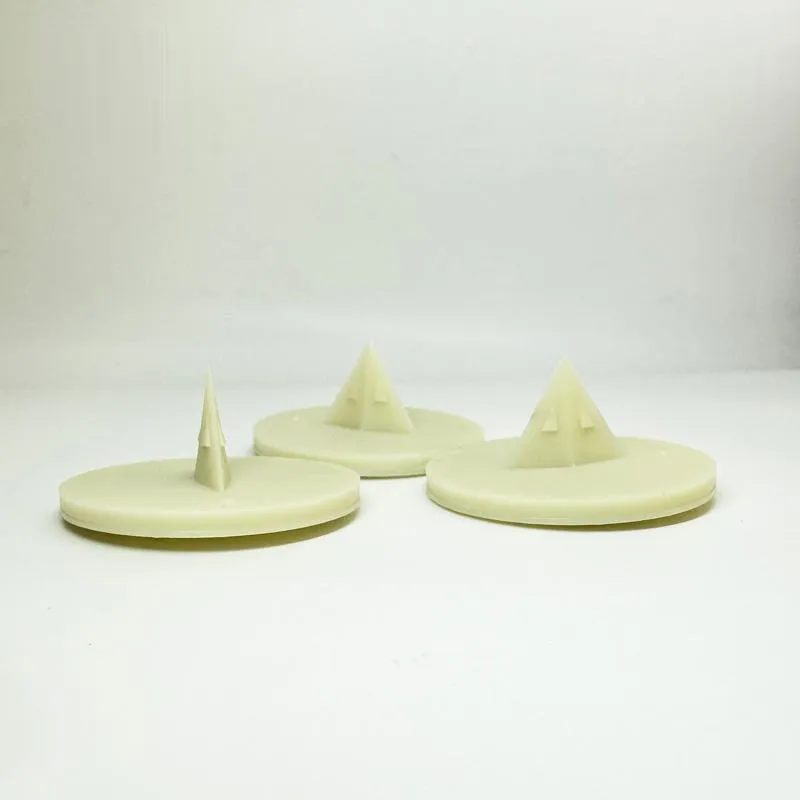

- Round ABS disc with a centre spike, driven into wood like a nail
- HF 13.56 MHz chip with 1 KB memory as standard; UHF EPC Gen2 chip on request
- HF version reads at 1–10 cm; UHF range confirmed with a sample on your reader
- Face can carry a printed number or barcode as a visual backup
- Pale yellow ABS, listed as waterproof and weatherproof
- Size made to order for the logs, trunks, posts or pallets you tag
- Frequency
- HF 13.56 MHz as standard; UHF (EPC Gen2, India 865–868 MHz) on request
- Chip
- Chosen when ordering and confirmed in the quotation
- Read range
- HF version 1–10 cm, depending on the reader; UHF version confirmed with a sample on your reader
Overview
Where the IDTS-TND1 RFID tree and timber tag fits
The IDTS-TND1 tags the wood itself: log ends and sawn timber in a timber yard, trunks in a forestry, plantation or municipal tree inventory, and wooden poles, posts and pallets. Drive its spike into the wood to fix the disc to that item.
HF or UHF: choosing the chip
- HF (standard): one disc at a time. Listed read distance is 1–10 cm, so staff hold a reader up to each disc, which suits checks such as a tree census.
- UHF (on request): for teams using UHF handhelds. UHF is generally read from further away than HF, and UHF handhelds can read several tags in one pass, which can help with log tracking in a yard if a trial confirms it. Water affects UHF signals, so wet or freshly cut wood can shorten the range: test a few discs on fresh-cut logs in your yard before a large order.
Our UHF vs HF tag guide explains the trade-off.
Linking each disc to your log or tree record
Read each new disc and store its chip ID, plus any printed number, against the item in your software or spreadsheet: species, girth or log size, compartment or yard location, and date. Later reads bring up that record; without a reader, staff can use the number.
Tagging saplings, plants or tree guards instead
For saplings, thin stems and potted plants, where a spike-in disc is not practical, use the IDTS-PTH165 HF tie tag, which wraps around a stem, branch or tree guard, or the IDTS-PSU8 UHF plant stake, pushed into the soil beside the plant.
Typical applications
- Tree inventory and census
- Timber yard log tracking
- Sawn timber stacks
- Wooden poles and posts
- Wooden pallets
- Plantation and forestry records
Specifications
Datasheet (PDF)| Form | Round disc with a pointed spike in the centre of the underside |
|---|---|
| Mounting | Spike driven into the wood: log ends, sawn timber, tree trunks, poles, posts or pallets |
| Frequency | HF 13.56 MHz as standard; UHF (EPC Gen2, India 865–868 MHz) on request |
| Chip | Chosen when ordering and confirmed in the quotation |
| Memory | 1 KB (HF version); UHF memory confirmed in the quotation |
| Read range | HF version 1–10 cm, depending on the reader; UHF version confirmed with a sample on your reader |
| Material | ABS |
| Colour | Pale yellow |
| Size | Made to order; confirmed in the quotation |
| Printing | Optional number or barcode printed on the face; confirmed in the quotation |
| Environment | Listed as waterproof and weatherproof |
| Compatible with | HF version: 13.56 MHz readers that support the chip confirmed in the quotation; UHF version: EPC Gen2 UHF readers (India 865–868 MHz), including UHF handhelds |
