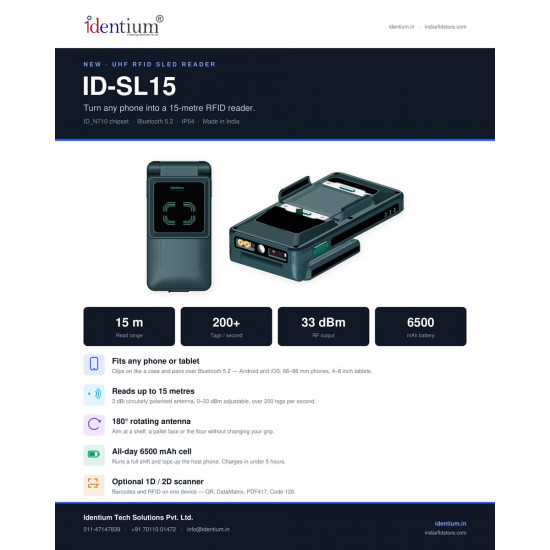

UHF RFID Bluetooth Sled Reader ID-SL15
A clip-on UHF RFID sled reader that turns an Android or iOS phone or tablet into a long-range scanner, reading tags up to 15 m away at more than 200 tags per second for warehouse, retail and asset counts.
₹38,999
per piece + 18% GST
₹46,018.82 incl. GST
Minimum order: 1 piece · buy online and pay by NEFT or UPI, or request a quote

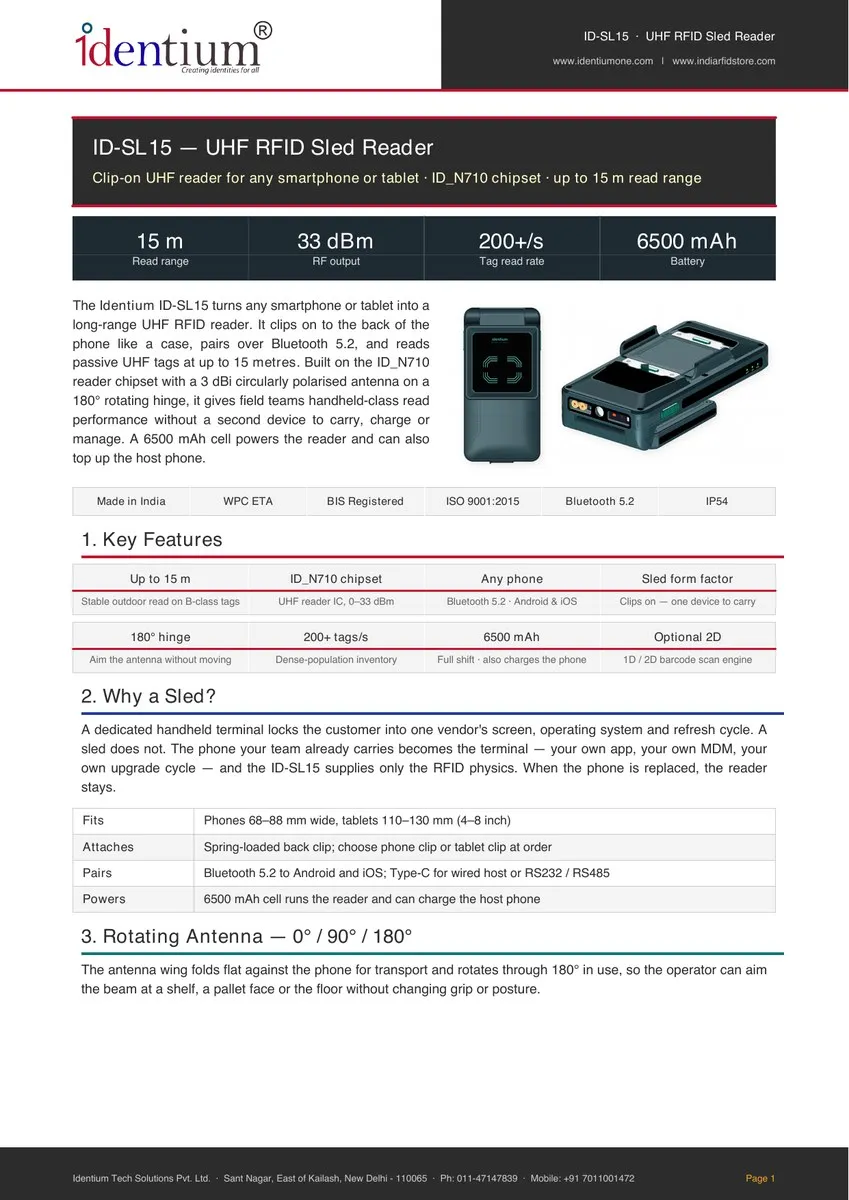

View datasheet PDF · 224 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Buy online, pay by NEFT or UPI · in-stock items are dispatched the same day after payment · shipping ₹300 per kg + GST
Key features
- Read range up to 16 m; 15 m stable outdoors on B-class power tags
- More than 200 tags per second with 0–33 dBm adjustable output
- 3 dBi circular antenna on a 180° hinge to aim at racks or the floor
- Bluetooth 5.2 to Android and iOS; USB Type-C for wired use
- 6,500 mAh battery that can also top up the host phone
- IP54 housing, −25 to +60 °C; optional 1D/2D barcode engine
- Frequency
- 865–868 MHz (India / EU, ID-SL15-IN); 902–928 MHz (ID-SL15-US); 920–925 MHz (ID-SL15-CN)
- Protocol
- EPCglobal Class 1 Gen 2, ISO 18000-6C, ISO 18000-6B
- Reader chip
- ID_N710 UHF reader IC
- Read range
- Up to 16 m; 15 m stable outdoors on B-class power tags (Identium test conditions)

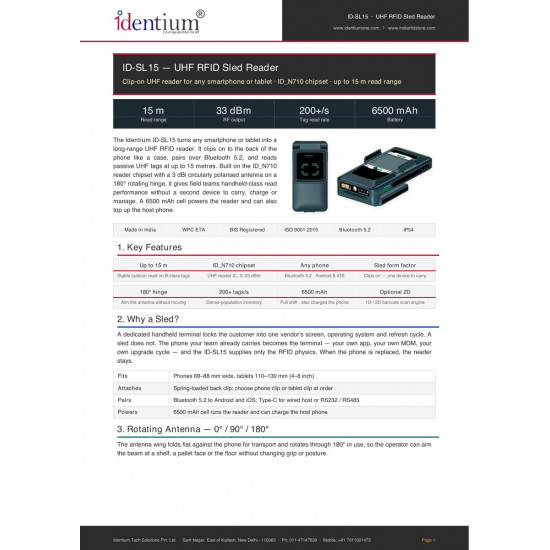

Overview
What the ID-SL15 UHF RFID sled reader does
A sled is a UHF RFID reader that clips onto the back of a phone or tablet. The ID-SL15 supplies the RFID hardware, including antenna, radio, battery and buttons, while the phone your team already carries runs the app over Bluetooth 5.2. You get long-range reading without buying a dedicated handheld terminal, and when the phone is replaced the reader stays in service.
Range and aiming
With 33 dBm of output, a 3 dBi circularly polarised antenna and receive sensitivity better than −85 dBm, the ID-SL15 is rated for up to 16 m, with 15 m stable outdoors on B-class power tags in Identium's tests. That is enough to count a rack face from the aisle instead of touching every carton. The antenna sits on a hinge that turns through 180°, so the operator can aim at a high shelf, a pallet face or the floor without twisting the wrist, then fold it flat for carrying. Output can also be turned right down to pick out a single tag on a crowded shelf.
Fit, power and options
- Clip: a spring-loaded back clip; choose the phone clip (phones 68–88 mm wide) or the tablet clip (110–130 mm, 4–8 inch) when ordering.
- Battery: a 6,500 mAh cell gives 2.6–3.4 hours of continuous UHF reading and can top up the host phone through the Type-C port.
- Barcodes: an optional 1D/2D imager reads QR, DataMatrix, PDF417 and common linear codes for sites that still use barcode labels.
- Wired use: a USB Type-C port, convertible to RS232 or RS485.
- Build: IP54 sealing and a −25 to +60 °C operating range for warehouse floors and open yards.
Choosing the right variant
For use in India, order the ID-SL15-IN (865–868 MHz). The -US (902–928 MHz) and -CN (920–925 MHz) versions are for export projects, and adding -2D to any code fits the barcode engine.
Software and integration
The Android and iOS SDK covers inventory, single-tag read, write, lock and kill, plus power and session control, and a demo app is available for bench trials. Reads can also be routed into Identium's reader-management and asset management platforms, which pass data on by HTTP POST, WebSocket or direct database write. Our guide sled vs USB-C vs handheld explains when a sled beats a full handheld, and the fixed asset audit guide walks through a typical verification project.

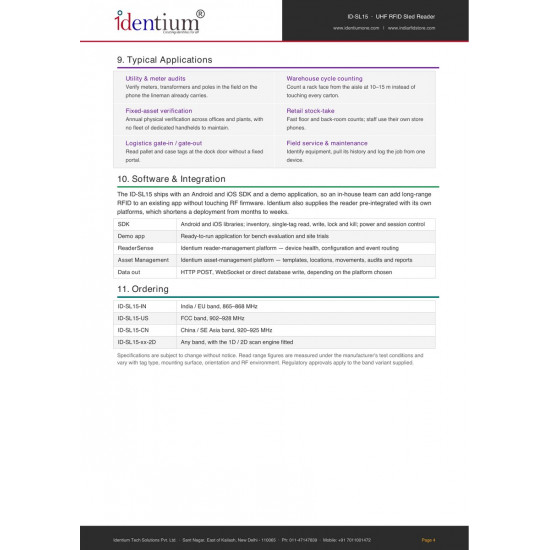

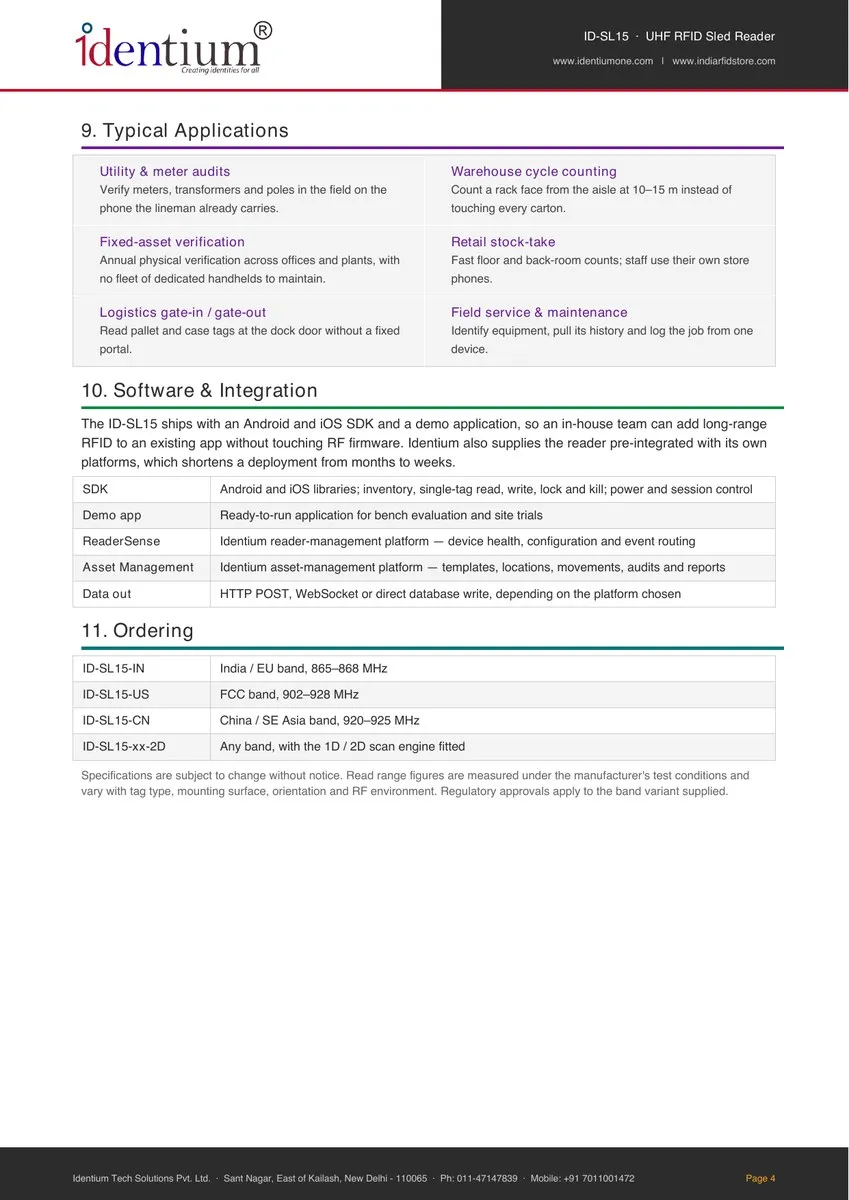

Typical applications
- Warehouse cycle counting
- Fixed asset verification
- Retail stock-take
- Utility meter audits
- Dock gate-in and gate-out
- Field service and maintenance

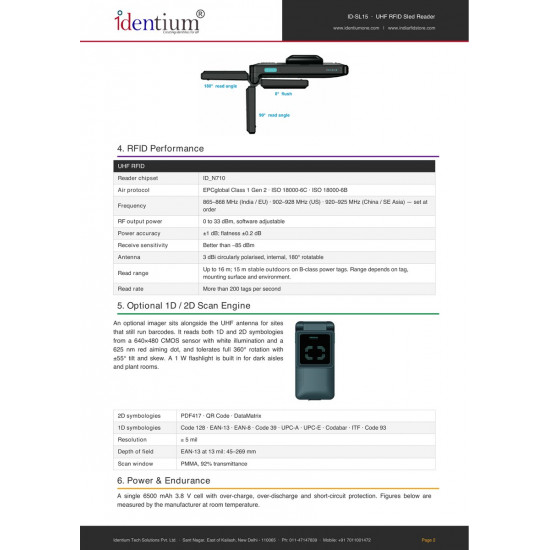

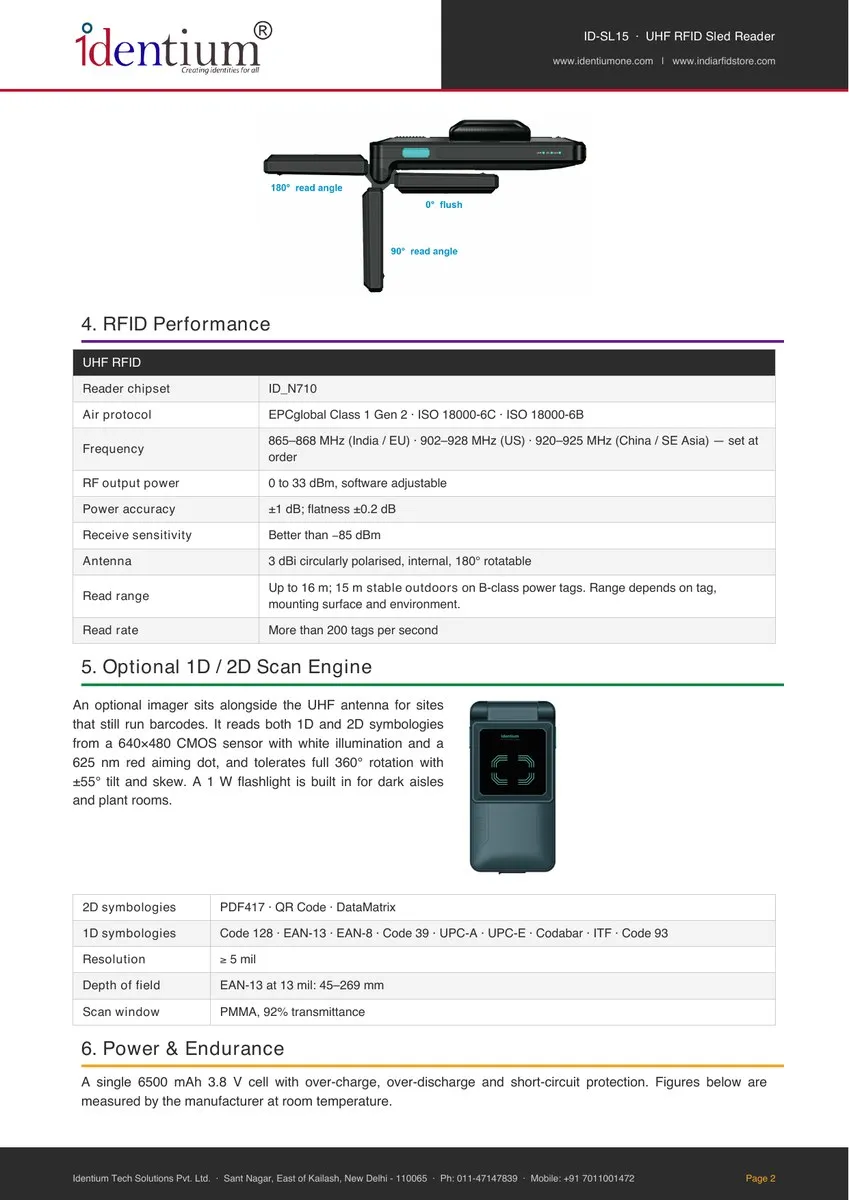

Specifications
Datasheet (PDF)| Frequency | 865–868 MHz (India / EU, ID-SL15-IN); 902–928 MHz (ID-SL15-US); 920–925 MHz (ID-SL15-CN) |
|---|---|
| Protocol | EPCglobal Class 1 Gen 2, ISO 18000-6C, ISO 18000-6B |
| Reader chip | ID_N710 UHF reader IC |
| RF output | 0–33 dBm, software adjustable (±1 dB accuracy, ±0.2 dB flatness) |
| Receive sensitivity | Better than −85 dBm |
| Antenna | 3 dBi circularly polarised, internal, on a 180° hinge (0° / 90° / 180°) |
| Read range | Up to 16 m; 15 m stable outdoors on B-class power tags (Identium test conditions) |
| Read rate | More than 200 tags/s |
| Interface | Bluetooth 5.2; USB Type-C (convertible to RS232 / RS485) |
| Compatible with | Android and iOS; phones 68–88 mm wide, tablets 110–130 mm wide (4–8 inch) |
| Barcode engine (optional) | 640 × 480 CMOS imager; PDF417, QR Code, DataMatrix; Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, ITF, Code 93; ≥ 5 mil; 1 W flashlight |
| Barcode performance (optional engine) | White illumination, 625 nm red aiming dot; 360° rotation, ±55° tilt and skew; depth of field 45–269 mm (EAN-13, 13 mil) |

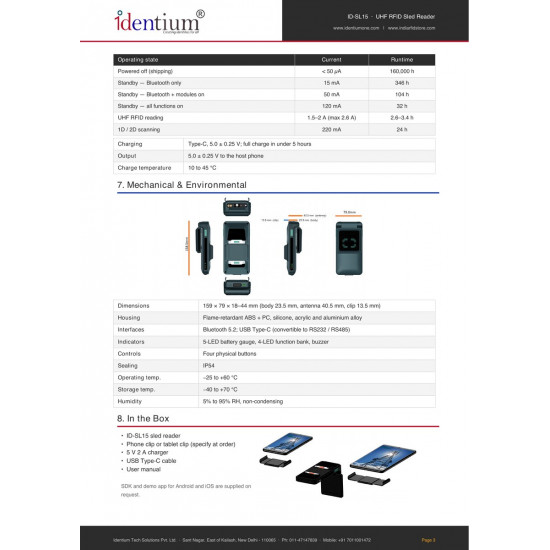

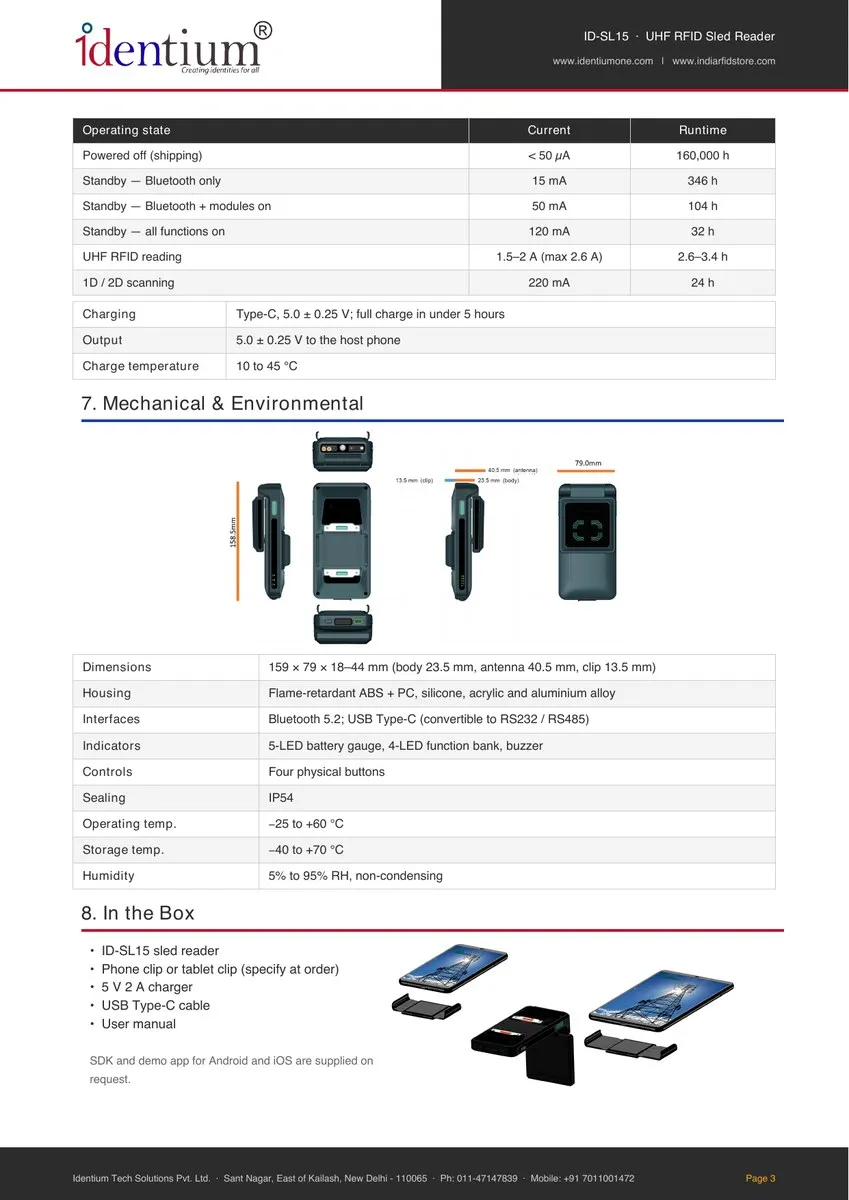

| Battery | 6,500 mAh, 3.8 V, with over-charge, over-discharge and short-circuit protection |
| Battery life | UHF reading 2.6–3.4 h continuous; 1D/2D scanning 24 h; Bluetooth standby 346 h; powered off 160,000 h |
| Charging | USB Type-C, 5.0 V ±0.25 V, full charge in under 5 h; charge at 10–45 °C; 5 V output to charge the host phone |
| Dimensions | 159 × 79 × 18–44 mm (body 23.5 mm, antenna 40.5 mm, clip 13.5 mm) |
| Material | Flame-retardant ABS + PC, silicone, acrylic and aluminium alloy |
| Controls & indicators | Four buttons; 5-LED battery gauge, 4 function LEDs, buzzer |
| IP rating | IP54 |
| Operating temperature | −25 to +60 °C |
| Storage temperature | −40 to +70 °C |
| Humidity | 5–95% RH, non-condensing |
| In the box | ID-SL15 sled reader, phone or tablet clip, 5 V 2 A charger, USB Type-C cable, user manual; SDK and demo app on request |
