Long-Range UHF On-Metal RFID Tag IDTS-13042 (130 × 42 mm)
A 130 × 42 mm reinforced-PC UHF tag that reads about 12 m when mounted on metal, made for pallet racking, gas cylinders and large steel assets that need long-distance reads.
₹89
per piece + 18% GST
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 175 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request
Key features
- Approx. 12 m read range when mounted on metal
- Pre-applied 3M 300LSE adhesive plus two keyhole screw slots
- 130 × 42 × 10.5 mm black reinforced PC bar with rounded corners
- H9 chip with 688-bit user memory and 96–496-bit EPC
- ISO 18000-6C; reads on standard UHF handhelds and fixed readers
- Operating temperature −20 °C to +80 °C
- Frequency
- 860–960 MHz (covers India's 865–868 MHz band)
- Protocol
- ISO 18000-6C
- Chip
- H9
- Read range
- Approx. 12 m on metal
Overview
A long-range on-metal RFID tag for racks and large steel assets

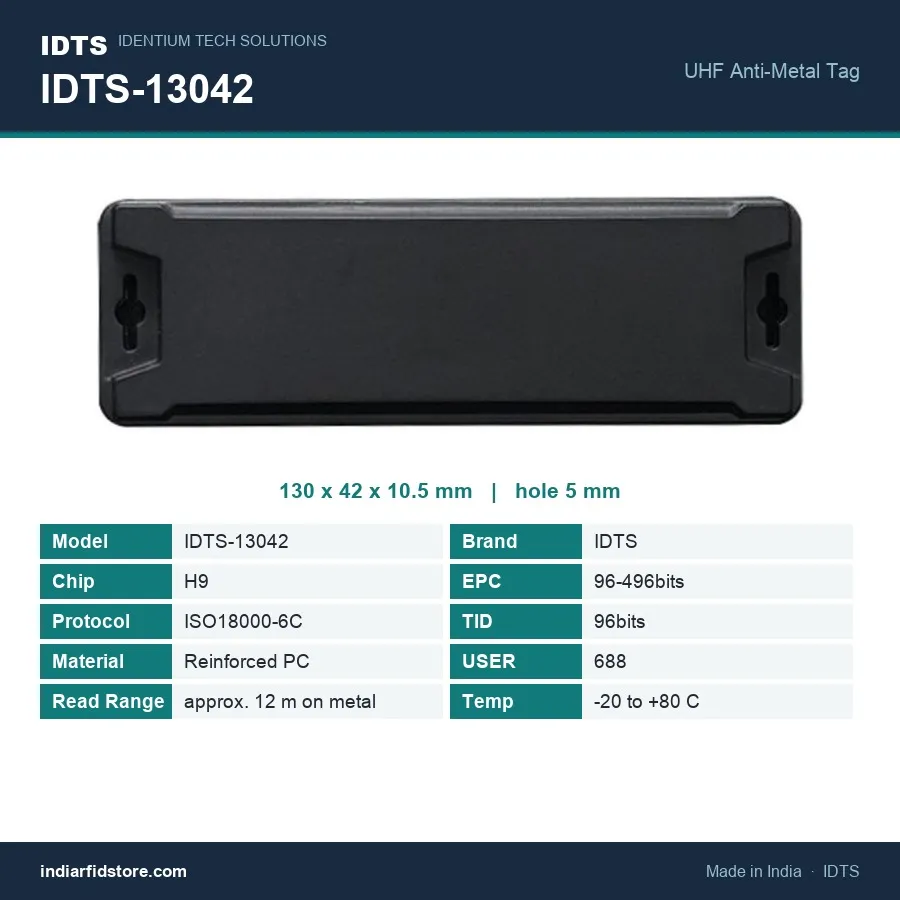

The IDTS-13042 is a large-format on-metal bar: 130 mm long, 42 mm wide and 10.5 mm thick, moulded in black reinforced PC. That size buys read distance. Fixed directly on metal it reads at around 12 m, so one fixed antenna or a handheld sweep down an aisle can cover a rack run or a cylinder bay without the operator walking up to every asset.
Stick it, then screw it

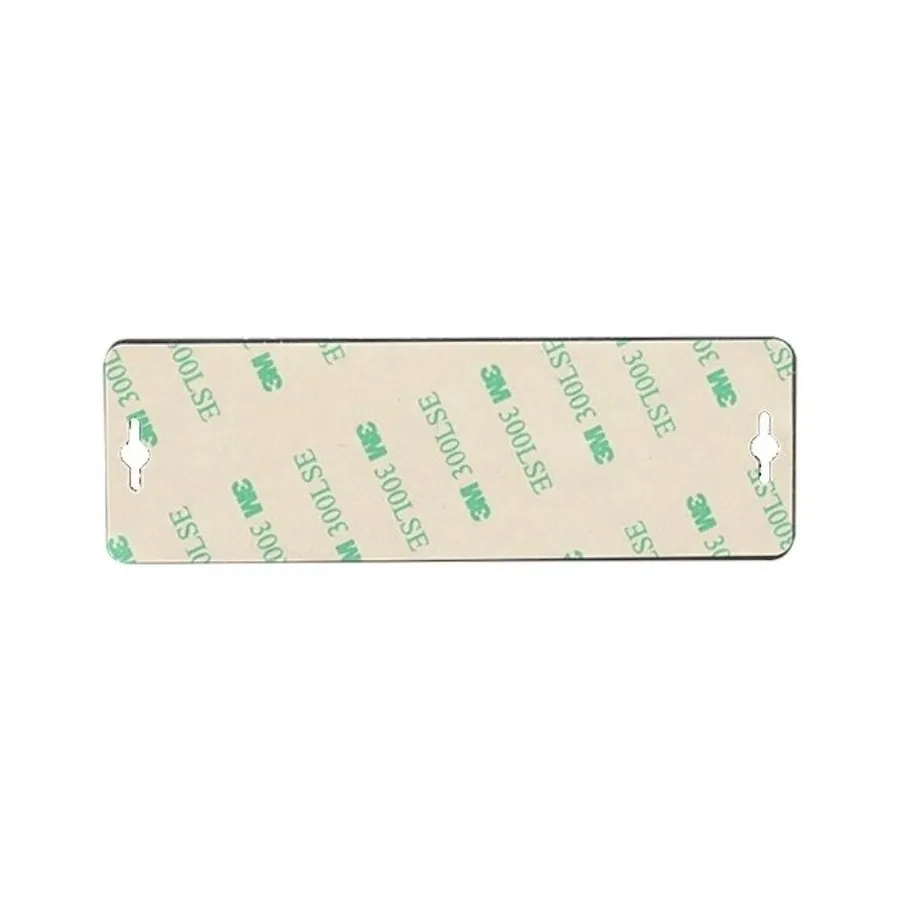

The back arrives with 3M 300LSE adhesive already applied, so the tag can be positioned in seconds. Two keyhole slots, one at each end, then take screws for a permanent fixing. Sites usually add the screws on assets that are knocked, stacked or handled daily, such as rack uprights, cages, stillages and plant machinery.
Room for more than an ID number
The H9 chip has 688 bits of user memory on top of a 96–496-bit EPC and a 96-bit factory TID. That leaves space to keep a location code, owner code or last inspection date on the tag itself, which helps when a handheld has to work offline in a yard or depot. Tagging cylinder fleets? Read our gas cylinder tracking guide, or browse all on-metal RFID tags.
Typical applications
- Pallet racking locations
- Gas cylinder tracking
- Server racks and cabinets
- Returnable metal cages
- Machinery registers
- Switchgear and panels
Specifications
Datasheet (PDF)| Frequency | 860–960 MHz (covers India's 865–868 MHz band) |
|---|---|
| Protocol | ISO 18000-6C |
| Chip | H9 |
| Memory | EPC 96–496 bits; TID 96 bits; user 688 bits |
| Read range | Approx. 12 m on metal |
| Dimensions | 130 × 42 × 10.5 mm |
| Material | Reinforced PC |
| Colour | Black |
| Mounting | Pre-applied 3M 300LSE adhesive; two keyhole slots for screws |
| Mounting hole | 5 mm diameter |
| Operating temperature | −20 °C to +80 °C |
Frequently asked questions
Will the IDTS-13042 read when fixed directly on metal?
How is the tag mounted on racking or cylinders?
Will it work with my UHF readers?
What can I store on the tag?
How do I order the IDTS-13042?
