Anti-Metal UHF RFID Stud Tag IDTS-D50 (50 mm Disc)

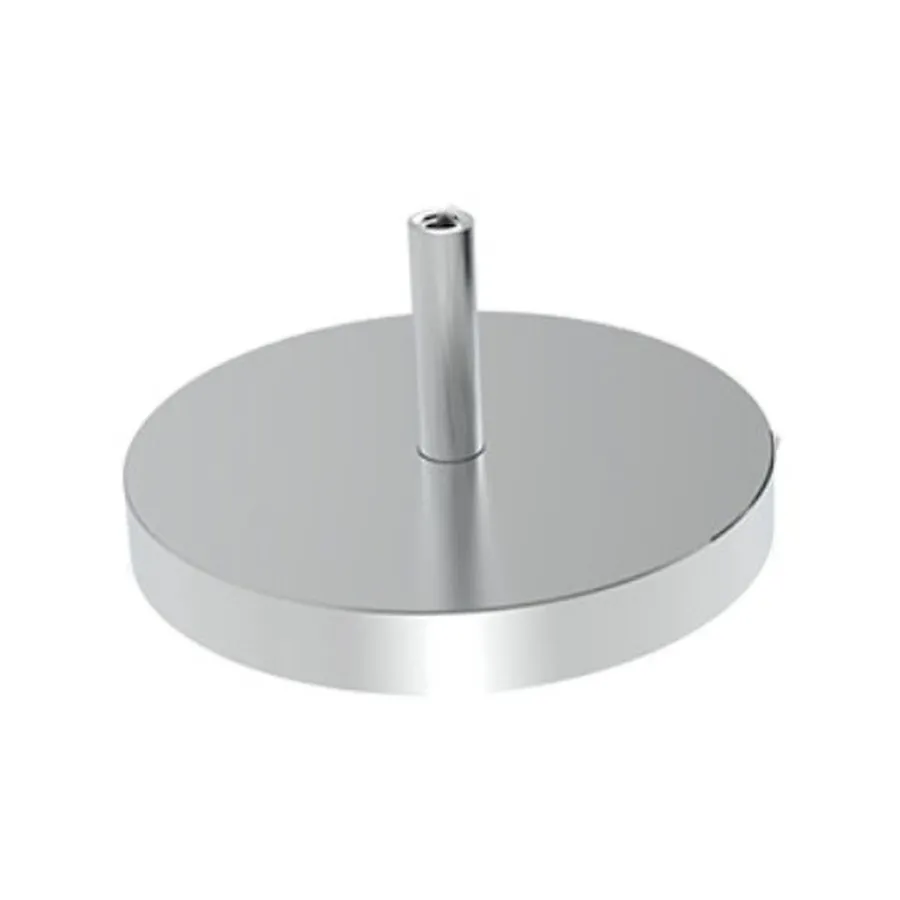

A 50 mm anti-metal UHF RFID disc with a central threaded stud, screwed into metal assets instead of stuck on. For gas cylinders, moulds, dies, valves and heavy tooling that see heat, grease and rough handling.
₹89
per piece + 18% GST
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 179 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request
Key features
- Anti-metal: approx. 5 m read range when mounted on metal
- Central threaded stud, M3–M8; internal or external thread on request
- Rated for −40 °C to +200 °C
- NXP UCODE 8 on ISO 18000-6C with 128-bit EPC and 96-bit TID
- Metal alloy body with PCB antenna potted in epoxy resin
- 50 mm disc, 7 mm thick, 26 mm overall height with stud
- Frequency
- 860–960 MHz (covers India’s 865–868 MHz band)
- Protocol
- ISO 18000-6C
- Chip
- NXP UCODE 8
- Read range
- Approx. 5 m on metal (depends on reader/writer performance)
Overview
What the IDTS-D50 anti-metal stud tag is for
Adhesive tags fail on assets that are hot, greasy, repainted or knocked about every day. The IDTS-D50 avoids adhesive altogether: a threaded stud at the centre of a 50 mm disc screws into the asset, giving a mechanical fixing that stays put. It is an anti-metal design, with a typical range of about 5 m when mounted on metal, which is enough to read a tagged cylinder or mould from across an aisle with a handheld.
Where it is used
- Gas and LPG cylinders, fixed at the collar or foot ring for filling-plant and yard counts
- Moulds, dies and jigs moving between presses, moulding machines and storage racks
- Valves, flanges, pumps and gearboxes on scheduled inspection rounds
- Heavy tooling, steel cages and trolleys issued and returned against a scan
Choosing the stud thread
The stud is specified in the M3–M8 range, and internal or external thread can be customised on request, so state the thread you need when you order and match it to a tapped hole or stud on the asset. The disc is 7 mm thick and 26 mm tall overall including the stud.
Data and temperature
The NXP UCODE 8 chip on ISO 18000-6C gives a 128-bit EPC bank for your asset number and a factory-set 96-bit TID for verification. Rated from −40 °C to +200 °C, the epoxy-potted build can stay on the asset through hot process areas. Our guide on how to choose on-metal RFID tags compares mounting styles, and more formats are listed under on-metal RFID tags.
Typical applications
- Gas cylinders
- Moulds and dies
- Heavy tooling
- Valves and flanges
- Pumps and gearboxes
- Steel pallets and cages

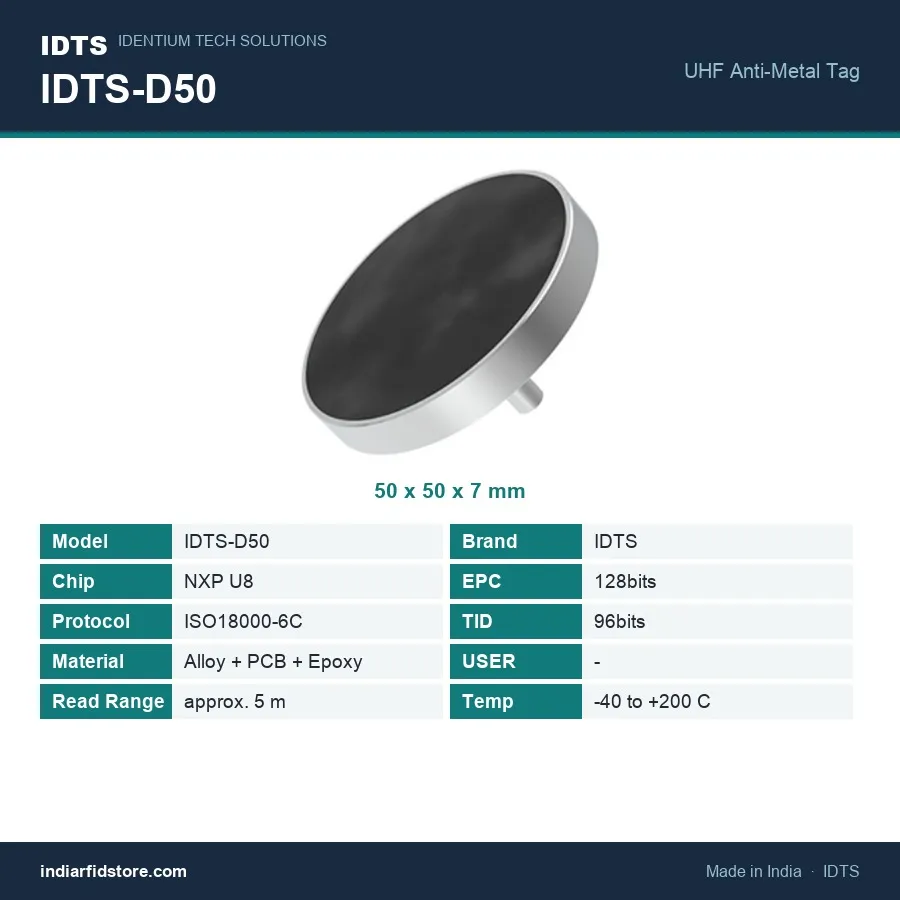

Specifications
Datasheet (PDF)| Frequency | 860–960 MHz (covers India’s 865–868 MHz band) |
|---|---|
| Protocol | ISO 18000-6C |
| Chip | NXP UCODE 8 |
| Memory | EPC 128 bits, TID 96 bits |
| Read range | Approx. 5 m on metal (depends on reader/writer performance) |
| Material | Metal alloy + PCB + epoxy resin |
| Dimensions | Ø 50 × 7 mm disc; 26 mm overall height including stud |
| Mounting | Central threaded stud, M3–M8; internal or external thread customisable on request |
| Operating temperature | −40 °C to +200 °C |
| Colour | Silver metallic body, black epoxy top face |
| Surface | Designed for mounting directly on metal |
Frequently asked questions
How is the IDTS-D50 fixed to a cylinder or mould?
Does the tag read when mounted on metal?
Can it handle high temperatures?
Which readers can read the IDTS-D50?
Can the tags be encoded or marked before delivery?
