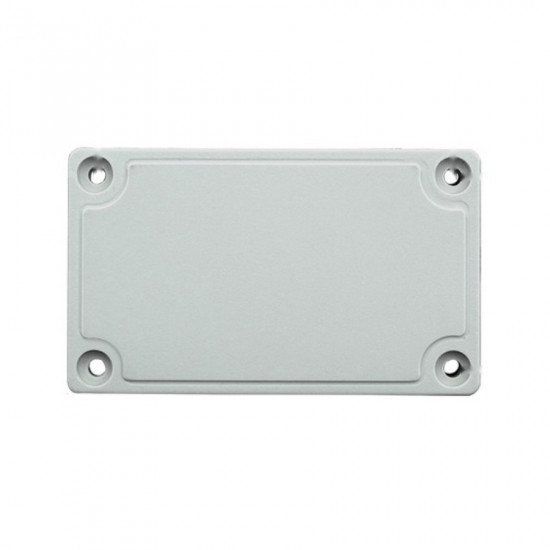

Anti-Metal UHF RFID Asset Tag IDTS-7545 (75 × 45 mm)
A 75 × 45 × 6 mm light grey ABS on-metal UHF tag with four corner holes for screws or rivets, reading about 5 m on metal, for machinery, cylinders and IT equipment.
₹89
per piece + 18% GST
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 178 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request a sample of this tag
Key features
- Approx. 5 m read range when mounted on metal
- Four 3.3 mm corner holes on 65 × 35 mm centres
- 75 × 45 × 6 mm light grey ABS housing
- NXP UCODE 9 (U9XE), ISO 18000-6C
- 128-bit EPC for your asset number plus 96-bit factory TID
- Operating temperature −20 °C to +80 °C
- Frequency
- 860–960 MHz (covers India's 865–868 MHz band)
- Protocol
- ISO 18000-6C
- Chip
- NXP UCODE 9 (U9XE)
- Read range
- Approx. 5 m on metal
Overview
A four-hole anti-metal RFID asset tag for machinery
The IDTS-7545 is a mechanically fixed asset tag: a 75 × 45 mm light grey ABS housing, 6 mm thick, with a 3.3 mm hole in each corner. Fixed directly onto metal it reads at around 5 m, enough for a technician to scan a motor, pump or panel from a normal working distance during a maintenance round.
A drilling pattern you can standardise
The hole centres are 65 mm apart along the length and 35 mm across the width. With one fixed pattern, a maintenance team can make a single drilling template and fit a whole fleet of assets the same way. Fixing at four points also holds the tag square on equipment that vibrates. The larger face leaves room for a printed asset number if you order custom printing.
Data and readers
The NXP UCODE 9 (U9XE) chip holds a 128-bit EPC for your asset code and a 96-bit factory TID that is unique to each tag, which helps when an audit must confirm the physical tag as well as the number. It reads on standard UHF handhelds and fixed readers. For a full rollout, see our RFID asset management solution or the guide to choosing on-metal RFID tags.
Typical applications
- Motors and pumps
- Compressors and gearboxes
- Server racks and UPS units
- Gas cylinder shoulders
- Tool and gauge issue
- Steel bins and stillages

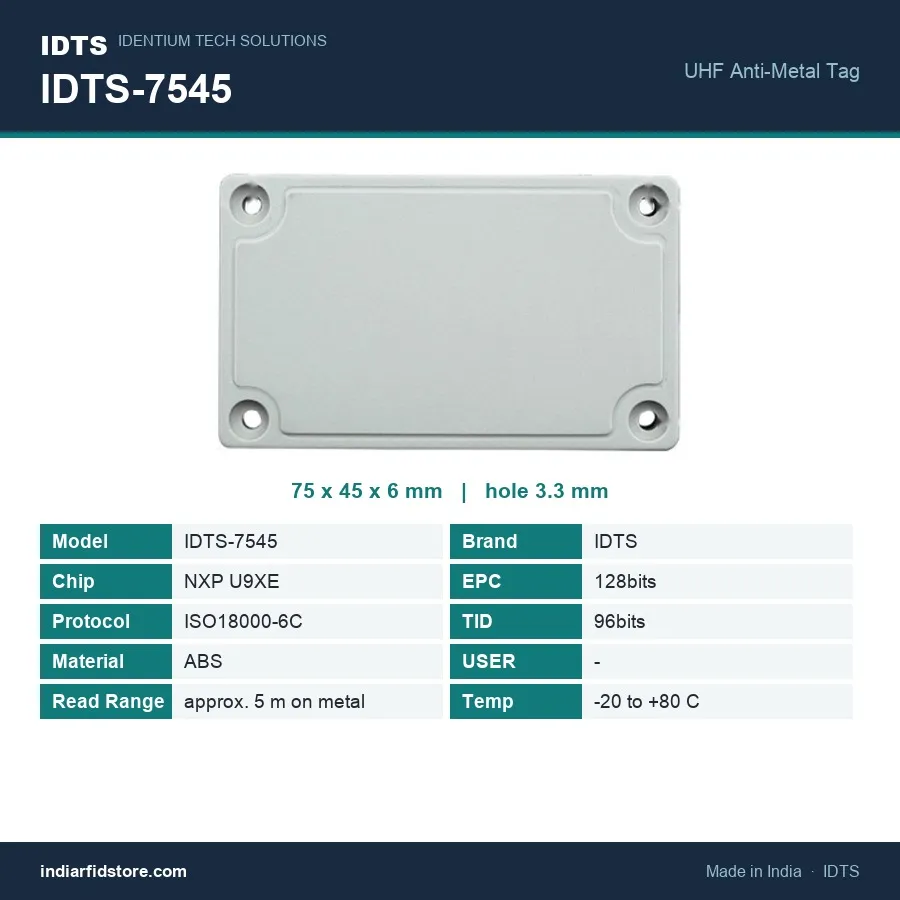

Specifications
Datasheet (PDF)| Frequency | 860–960 MHz (covers India's 865–868 MHz band) |
|---|---|
| Protocol | ISO 18000-6C |
| Chip | NXP UCODE 9 (U9XE) |
| Memory | EPC 128 bits; TID 96 bits |
| Read range | Approx. 5 m on metal |
| Dimensions | 75 × 45 × 6 mm |
| Material | ABS |
| Mounting | Four corner holes, 3.3 mm diameter |
| Hole spacing | 65 mm (long axis) × 35 mm (short axis), centre to centre |
| Colour | Light grey |
| Operating temperature | −20 °C to +80 °C |
