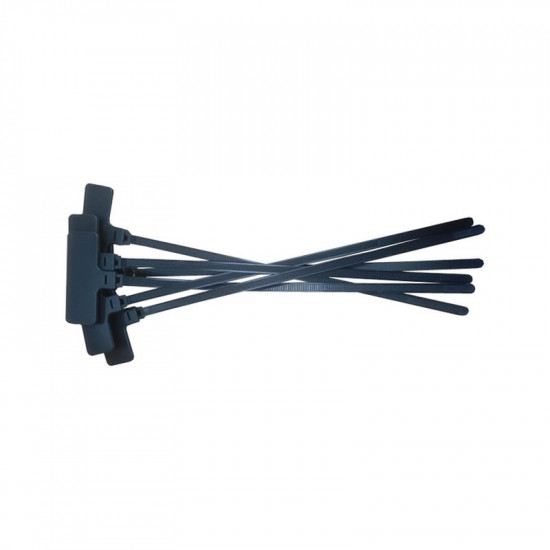

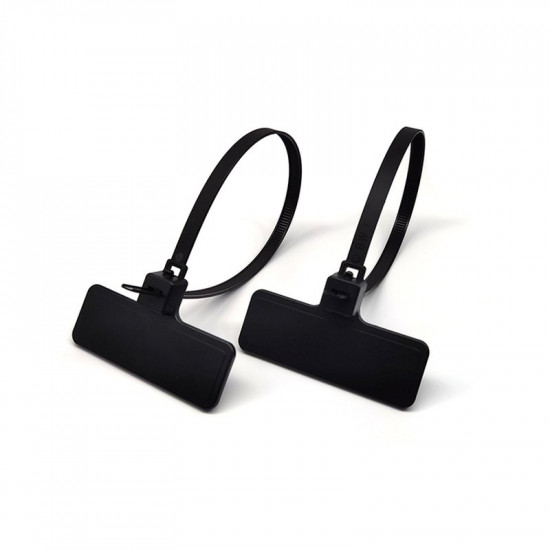

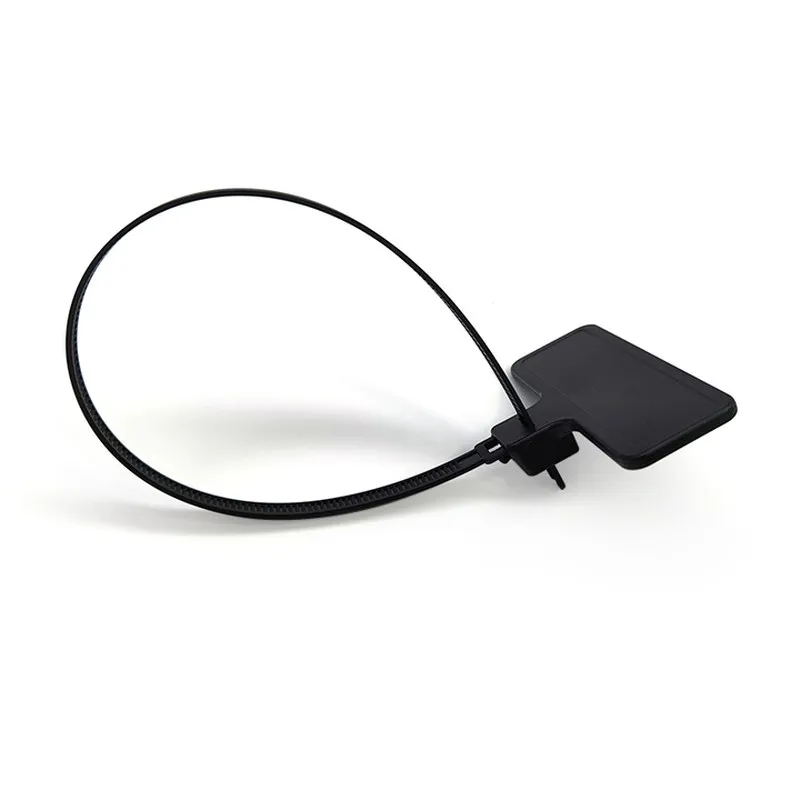

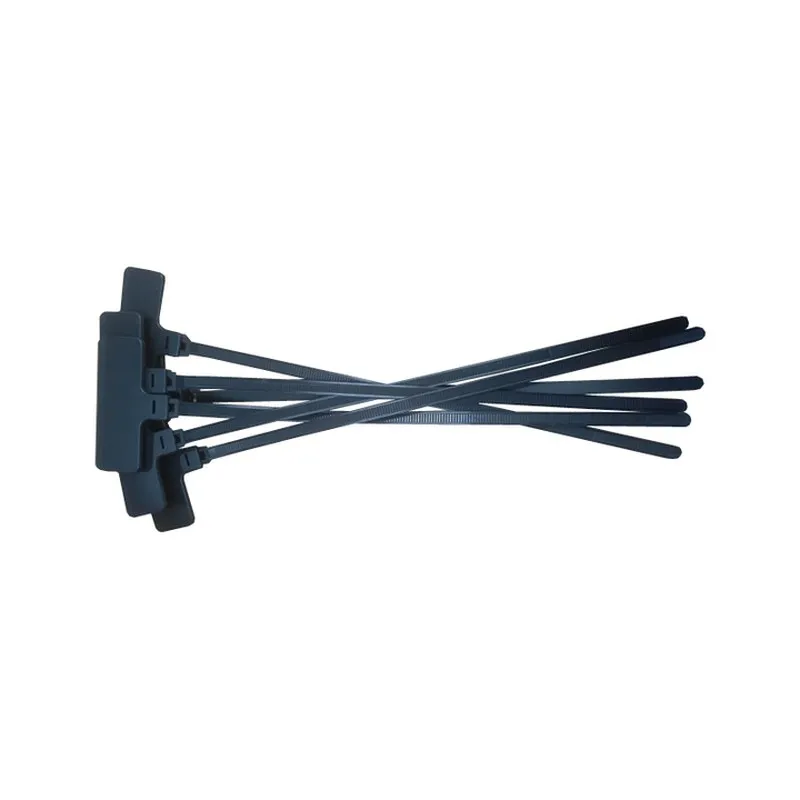

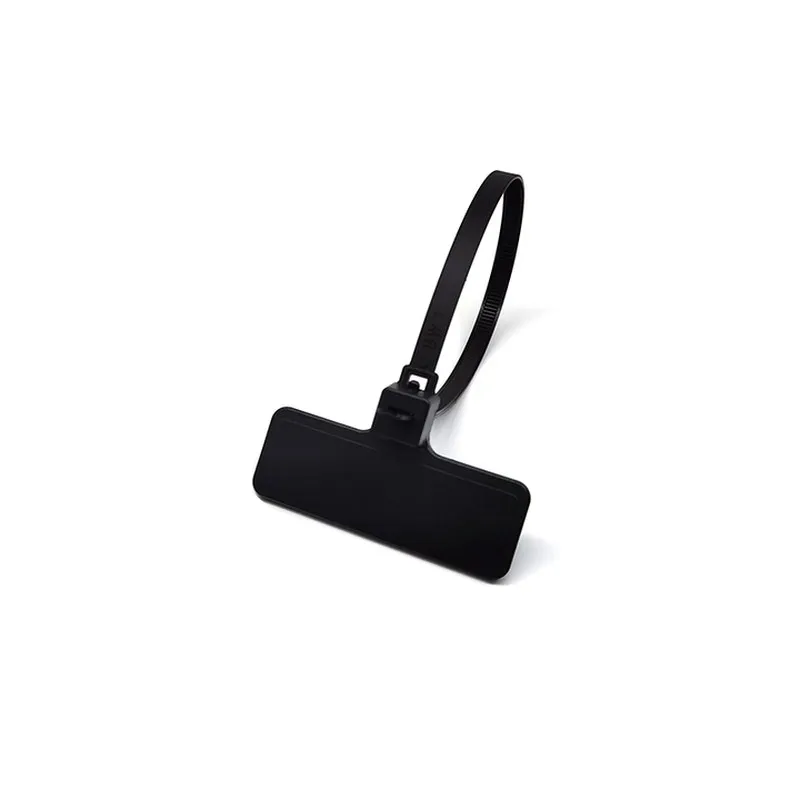

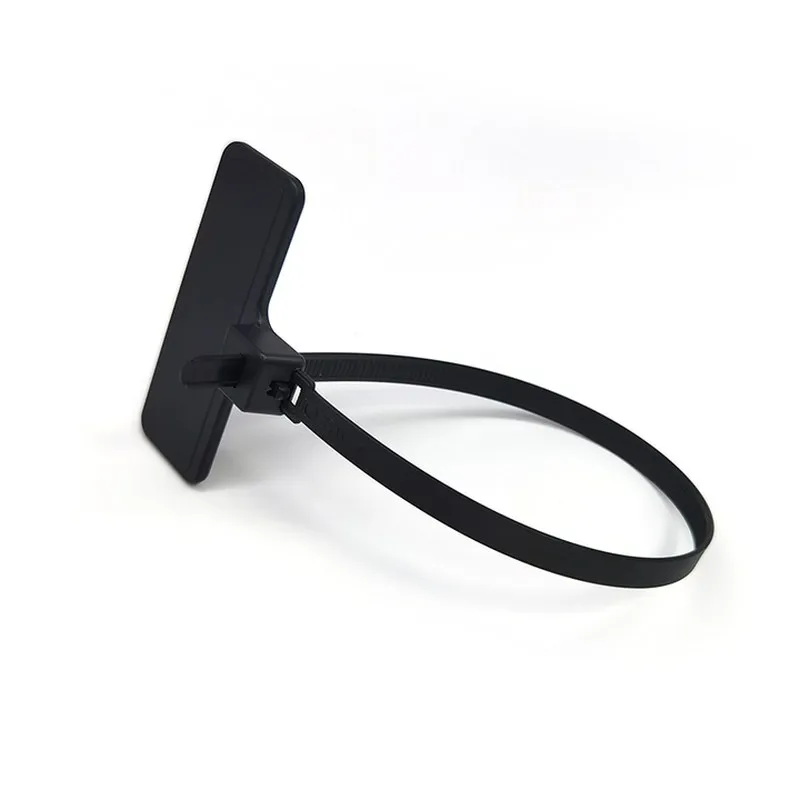

Reusable UHF RFID Cable Tie Tag ID-CTT-960
A reusable strap-style UHF RFID tag in waterproof ABS that loops around cylinder necks, container fittings, cable bundles and racks. It can be opened and moved to another asset without damaging the tag.
- Model:
- ID-CTT-960
- Brand:
- Identium
- Frequency:
- 860–960 MHz (covers India’s 865–868 MHz band)
- Protocol:
- ISO 18000-6C / EPC Class 1 Gen 2
- Chip:
- Impinj Monza U8 or U9
- Read range:
- 1–8 m (reader and antenna dependent)
- Datasheet:
- PDF · 184 KB
- Listing updated:
₹115
per piece + 18% GST
Min. order 500 piecesThe final price for your quantity is confirmed in the quote
Choose a size
Optional: you can also confirm it in the quote
- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request a sample of this tag
Sold by India RFID Store, the online catalogue of Identium Tech Solutions Pvt Ltd, an RFID manufacturer in New Delhi, India, in business since 2010.
Key features
- Reusable strap: open, transfer and refit without damaging the tag
- Read range of 1–8 m depending on reader and antenna
- Impinj Monza U8 or U9 chip, ISO 18000-6C / EPC Class 1 Gen 2
- Waterproof, weatherproof and chemical-resistant ABS body
- Two lengths: 285 mm or 448 mm, both 28 mm wide
- Black as standard; green or blue on request
Overview
What the reusable UHF RFID cable tie tag does
Many assets have nowhere flat to stick a label: the neck of a gas cylinder, a container lashing point, a bundle of cables. The ID-CTT-960 puts a UHF tag on a strap that loops around the asset instead. Unlike a one-time ratchet tie, it can be opened and refitted without damaging the tag, so tags move with your asset pool as cylinders are retired or containers change hands.
Choosing the 285 mm or 448 mm strap
Both lengths are 28 mm wide and 8 mm thick. Choose the shorter strap for smaller circumferences such as cable bundles and narrow fittings, and the longer one for larger fittings, handles and container hardware. Measure the circumference the strap must go around before you order.
Range, chip and durability
Read range is 1–8 m depending on the reader and antenna, with the upper end needing a high-gain UHF reader. The Impinj Monza U8 or U9 chip on ISO 18000-6C carries a 96-bit EPC. An ABS body with an aluminium etched antenna keeps it waterproof, weatherproof and chemical-resistant in outdoor yards and filling plants.
Fitting on metal assets
Standard UHF tags read poorly when pressed flat against steel, so on cylinders and containers keep the tag body clear of the metal where you can, and trial a few assets first. For flush mounting on flat steel, use an on-metal RFID tag; our gas cylinder tracking guide covers fill-cycle traceability. For a single-use, tamper-evident tie, compare the RFID Cable Tie Tag.
Where the ID-CTT-960 is used
- Gas cylinder tracking
- Container and yard tracking
- Cable bundle identification
- Server rack cabling
- Returnable transport items
- Tool and equipment tagging
Specifications
Datasheet (PDF)| Frequency | 860–960 MHz (covers India’s 865–868 MHz band) |
|---|---|
| Protocol | ISO 18000-6C / EPC Class 1 Gen 2 |
| Chip | Impinj Monza U8 or U9 |
| Memory | EPC 96 bits |
| Read range | 1–8 m (reader and antenna dependent) |
| Material | ABS |
| Antenna | Aluminium etched |
| Size | 285 × 28 × 8 mm, 448 × 28 × 8 mmSee this size at actual size → |
| Weight | Approx. 16 g |
| Protection | Waterproof, weatherproof, chemical-resistant |
| Colour | Black (standard); green or blue on request |
| Mounting | Reusable cable-tie strap |
Frequently asked questions
What is the read range of the ID-CTT-960?
It reads from 1 to 8 m depending on the reader and antenna. The upper end needs a high-gain UHF reader; tag orientation, nearby metal and the mounting position also affect range.
Can the cable tie tag be reused?
Yes. The strap can be opened, moved to another cylinder, container or bundle and reattached without damaging the tag, which suits asset pools where items are retired or replaced.
Is it suitable for outdoor use and gas cylinders?
Yes. The ABS body with an aluminium etched antenna is waterproof, weatherproof and chemical-resistant, and the strap fastens around the asset, so no drilling or adhesive is needed. On metal cylinders, keep the tag body clear of the steel where possible and test before rollout.
Does it work on India’s UHF band?
Yes. It covers 860–960 MHz, including India’s licence-exempt 865–868 MHz band, and uses ISO 18000-6C / EPC Class 1 Gen 2, so standard UHF readers can read it.
Can I get other colours or my logo printed?
Black is standard, and green or blue are available on request. Custom logo and graphic printing is also offered with a minimum order quantity, so mention it when you request a quote.
