UHF On-Metal RFID Tag IDTS-2626 (26 × 26 mm, Screw Mount)
A compact 26 × 26 mm UHF tag in a metal alloy and epoxy body that screws flush onto tools, brackets and machinery, rated from −40 °C to +200 °C for hot and cold assets.
₹89
per piece + 18% GST
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 175 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request
Key features

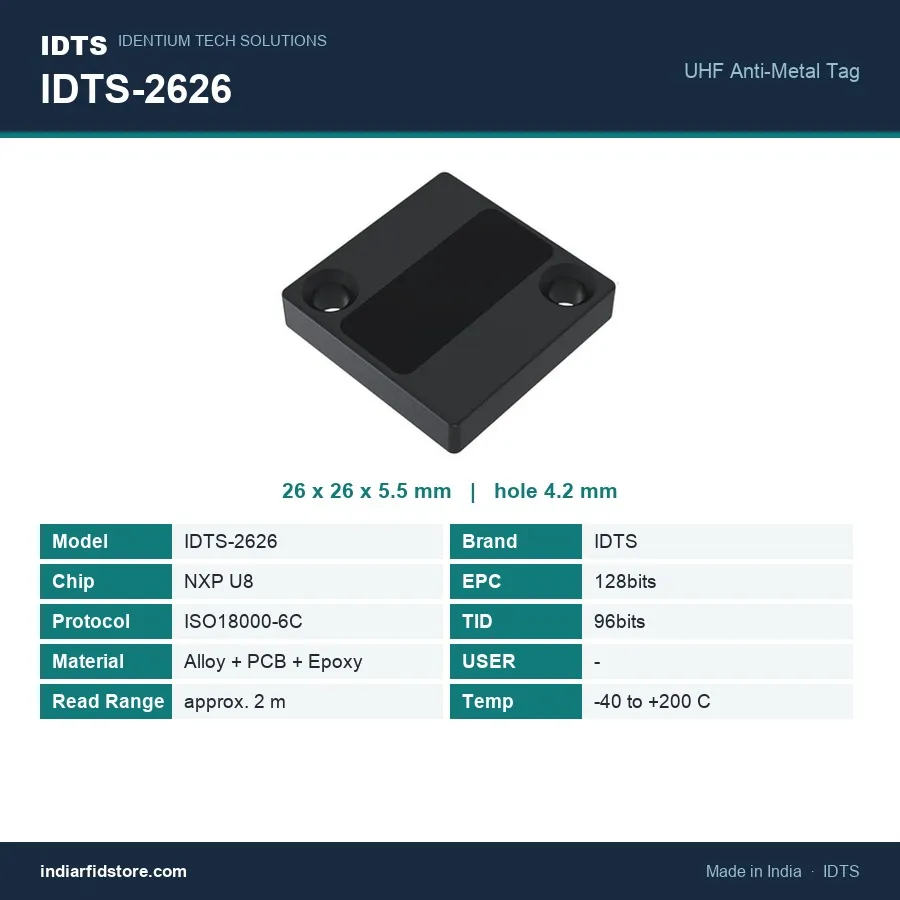

- 26 × 26 × 5.5 mm block for small metal surfaces
- Two 4.2 mm countersunk holes for flush screw fixing
- Metal alloy body, PCB antenna and epoxy resin encapsulation
- Operating temperature −40 °C to +200 °C
- NXP UCODE 8, ISO 18000-6C, 128-bit EPC, 96-bit TID
- Approx. 2 m read range, depending on the reader
- Frequency
- 860–960 MHz (covers India's 865–868 MHz band)
- Protocol
- ISO 18000-6C
- Chip
- NXP UCODE 8
- Read range
- Approx. 2 m (depends on reader)
Overview
A small screw-mount on-metal RFID tag for tight spaces
Some metal assets have no room for a large tag: a valve guard, a jig, a bracket on a machine, the collar of a cylinder. The IDTS-2626 is a 26 mm square, 5.5 mm thick, with a PCB antenna sealed in epoxy resin inside a metal alloy body. Two countersunk 4.2 mm holes let screw heads sit flush with the face, so there is nothing to snag and no adhesive to peel off.
Close-range reads, wide temperature rating
Read distance is about 2 m, depending on the reader. That suits handheld checks at a tool crib counter, a workbench or a filling station, where the operator is already beside the asset. For aisle sweeps or dock-door portals, a larger on-metal tag will give more distance. The −40 °C to +200 °C operating range lets one part number cover cold stores and hot process areas alike.
Works with standard UHF readers
The NXP UCODE 8 chip runs ISO 18000-6C with a 128-bit EPC for your asset number and a 96-bit factory TID, so it reads on the UHF handheld readers most sites already use. Compare it with other PCB and ceramic RFID tags before you standardise on a size.
Typical applications
- Jigs and fixtures
- Cylinder collars and valve guards
- Moulds and dies
- Machine sub-assemblies
- Valves and pipeline flanges
- Rolling-stock fittings
Specifications
Datasheet (PDF)| Frequency | 860–960 MHz (covers India's 865–868 MHz band) |
|---|---|
| Protocol | ISO 18000-6C |
| Chip | NXP UCODE 8 |
| Memory | EPC 128 bits; TID 96 bits |
| Read range | Approx. 2 m (depends on reader) |
| Dimensions | 26 × 26 × 5.5 mm |
| Material | Metal alloy, PCB and epoxy resin |
| Mounting | Two countersunk holes, 4.2 mm diameter |
| Colour | Black |
| Operating temperature | −40 °C to +200 °C |
Frequently asked questions
Will the IDTS-2626 read when fixed to metal?
How far away can it be read?
How is the tag fixed, and how tough is it?
Does it work with our existing UHF readers?
Can I get the IDTS-2626 pre-encoded?
