UHF RFID Bolt Tag IDTS-RH30 (30 mm Hex Head, M5/M6 Stud)
A compact UHF RFID bolt tag with a 30 mm hexagonal head on an M5/M6 threaded stud, screwed into a tapped hole like a bolt. For machine frames, fixtures, ground markers and other fixed points that need a permanent ID.
₹89
per piece + 18% GST
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 180 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request
Key features
- M5/M6 threaded stud screws into a tapped hole
- 30 mm hex head, 7 mm thick, 25 mm overall height
- Rated for −40 °C to +200 °C
- NXP UCODE 8 on ISO 18000-6C with 128-bit EPC and 96-bit TID
- PCB inlay potted in epoxy inside a metal alloy body
- Approx. 3 m read range, reader dependent
- Frequency
- 860–960 MHz (covers India’s 865–868 MHz band)
- Protocol
- ISO 18000-6C
- Chip
- NXP UCODE 8
- Read range
- Approx. 3 m (depends on reader performance)
Overview
What the IDTS-RH30 UHF RFID bolt tag does
Some identification points are not assets you carry around but places you keep returning to: a machine frame, a fixture, a valve chamber, a marker set into the ground. The IDTS-RH30 gives such points a permanent UHF ID. Its 30 mm hexagonal head sits on an M5/M6 threaded stud, so it screws into a tapped hole like an ordinary bolt and does not depend on adhesive or cable ties.
Where it fits best
- Machine frames, jigs and press tooling with a tapped M5 or M6 hole
- Paint, powder-coating and curing lines working within −40 °C to +200 °C
- Road-stud and ground markers used for utility and civic asset mapping
- Inspection checkpoints in railway depots and valve chambers scanned on walking rounds
Size, range and data
The head is 7 mm thick and the tag is 25 mm tall overall, so it adds little to the mounting point. The rated read distance is about 3 m depending on the reader, which suits scans with a UHF handheld reader on an inspection round. The NXP UCODE 8 chip on ISO 18000-6C holds your location or asset number in a 128-bit EPC bank alongside a 96-bit factory TID.
Choosing a stud-mount tag
The RH30 is the compact, fixed-thread option. If you need a larger disc with the thread chosen to order, compare the IDTS-D50 50 mm stud tag; other screw-fixed formats are listed under RFID PCB and ceramic tags.
Typical applications
- Machine frames
- Jigs and fixtures
- Paint and powder-coat lines
- Road and ground markers
- Valve chambers
- Trackside checkpoints

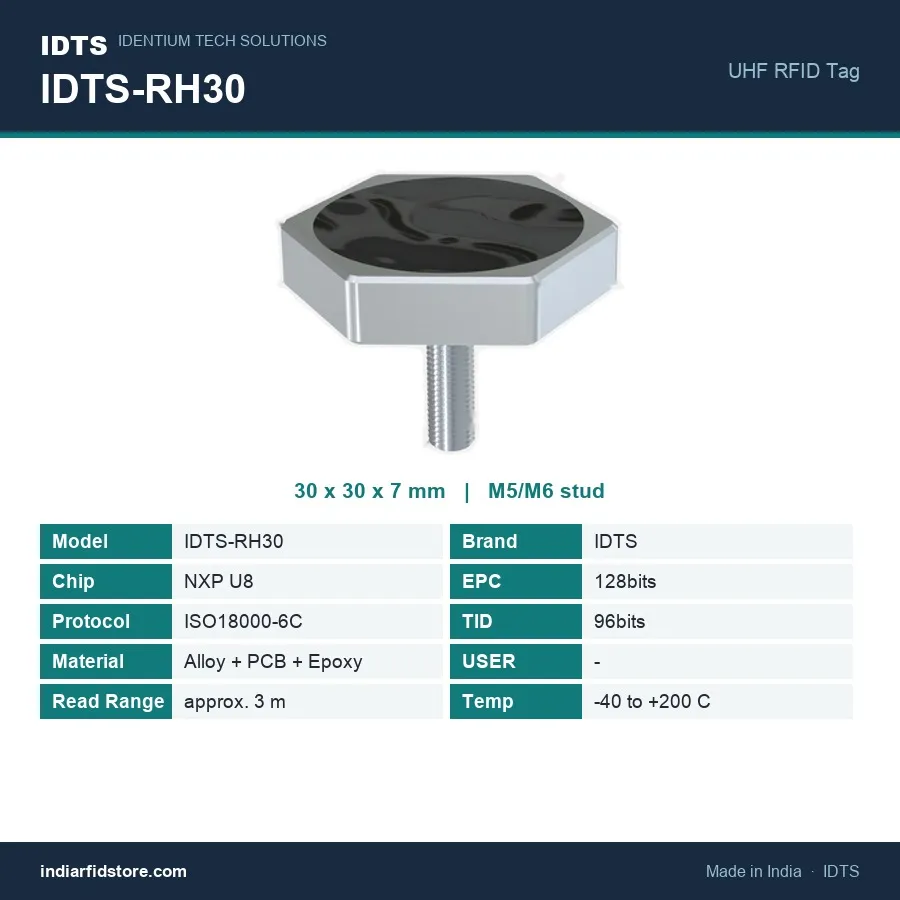

Specifications
Datasheet (PDF)| Frequency | 860–960 MHz (covers India’s 865–868 MHz band) |
|---|---|
| Protocol | ISO 18000-6C |
| Chip | NXP UCODE 8 |
| Memory | EPC 128 bits, TID 96 bits |
| Read range | Approx. 3 m (depends on reader performance) |
| Material | Metal alloy + PCB + epoxy resin |
| Dimensions | 30 mm hex head (30 × 30 mm), 7 mm head thickness, 25 mm overall height |
| Mounting | M5/M6 threaded stud |
| Operating temperature | −40 °C to +200 °C |
| Colour | Silver/chrome body, black epoxy top face |
Frequently asked questions
How is the IDTS-RH30 bolt tag installed?
Can it be used in high-temperature areas?
What read range should I expect?
Which readers and frequency does it work with?
Can it be supplied pre-encoded or marked?
