UHF On-Metal RFID Tag IDTS-7025 (70 × 25 mm, ABS)
A slim 70 × 25 × 5 mm white ABS UHF tag that reads about 8 m on metal, with a screw hole at each end and adhesive backing, for rack uprights, control panels and cylinders.
₹89
per piece + 18% GST
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 173 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request
Key features
- Approx. 8 m read range when mounted on metal
- Built-in dual-folded antenna designed for on-metal use
- Slim 70 × 25 × 5 mm white ABS bar with rounded corners
- Two 4 mm screw holes plus peel-off double-sided adhesive
- NXP UCODE 9 (U9XE), ISO 18000-6C, 128-bit EPC, 96-bit TID
- Operating temperature −20 °C to +80 °C
- Frequency
- 860–960 MHz (covers India's 865–868 MHz band)
- Protocol
- ISO 18000-6C
- Chip
- NXP UCODE 9 (U9XE)
- Read range
- Approx. 8 m on metal
Overview
A slim on-metal UHF RFID tag with long read range
The IDTS-7025 fits a lot of range into a narrow profile. It is a 70 × 25 mm white ABS bar, only 5 mm thick, with a built-in dual-folded antenna designed to work against metal. Mounted on steel it reads at around 8 m, so a handheld user can confirm a rack location or a cabinet from the aisle instead of reaching for each one.
Where the 25 mm width helps
Narrow fixing faces are common in warehouses and IT rooms: rack uprights, beam edges, panel door frames and cylinder collars. A 25 mm bar fits these without covering existing labels or vents, and the white body is easy to spot on dark equipment during a manual check.
Fixing and encoding
- Screws: two 4 mm holes, one at each end, where the tag must stay put.

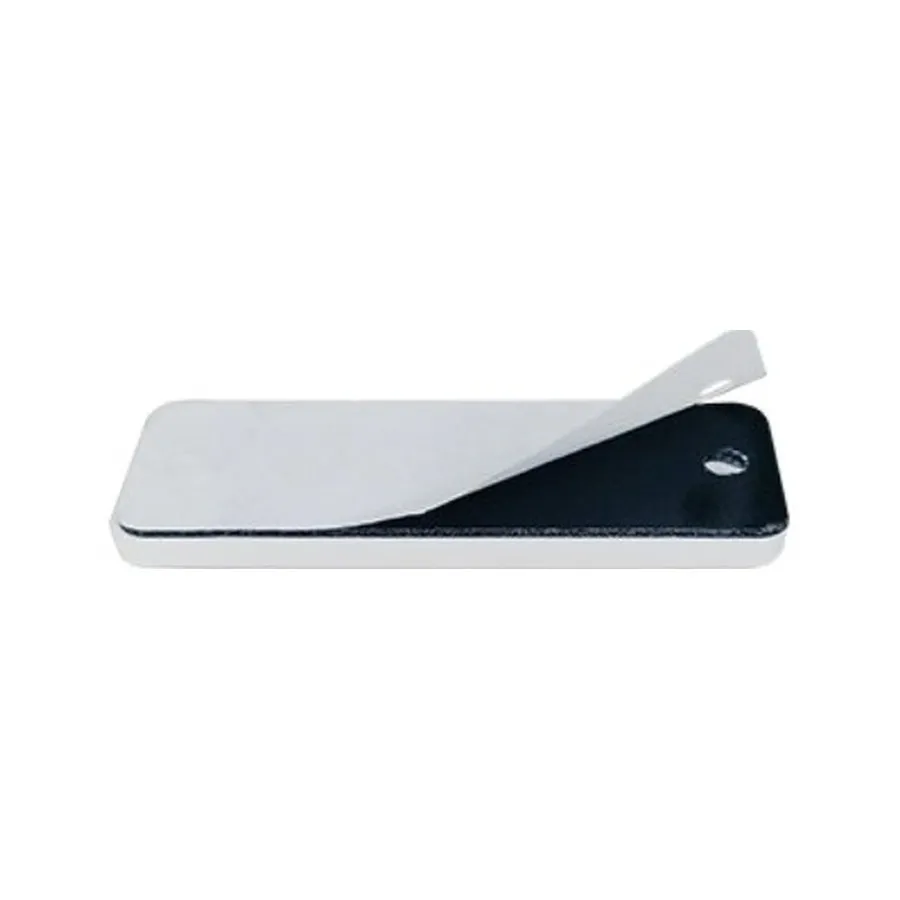

- Adhesive: a peel-off double-sided tape underneath, for surfaces you cannot drill.
The NXP UCODE 9 (U9XE) chip runs ISO 18000-6C with a 128-bit EPC and a 96-bit TID. Planning a rack-location rollout? Read our warehouse RFID implementation guide, or compare other on-metal RFID tags.
Typical applications
- Rack uprights and beams
- Server racks and switches
- Control panels
- Gas cylinder collars
- Metal tool boxes
- Roll cages and trolleys

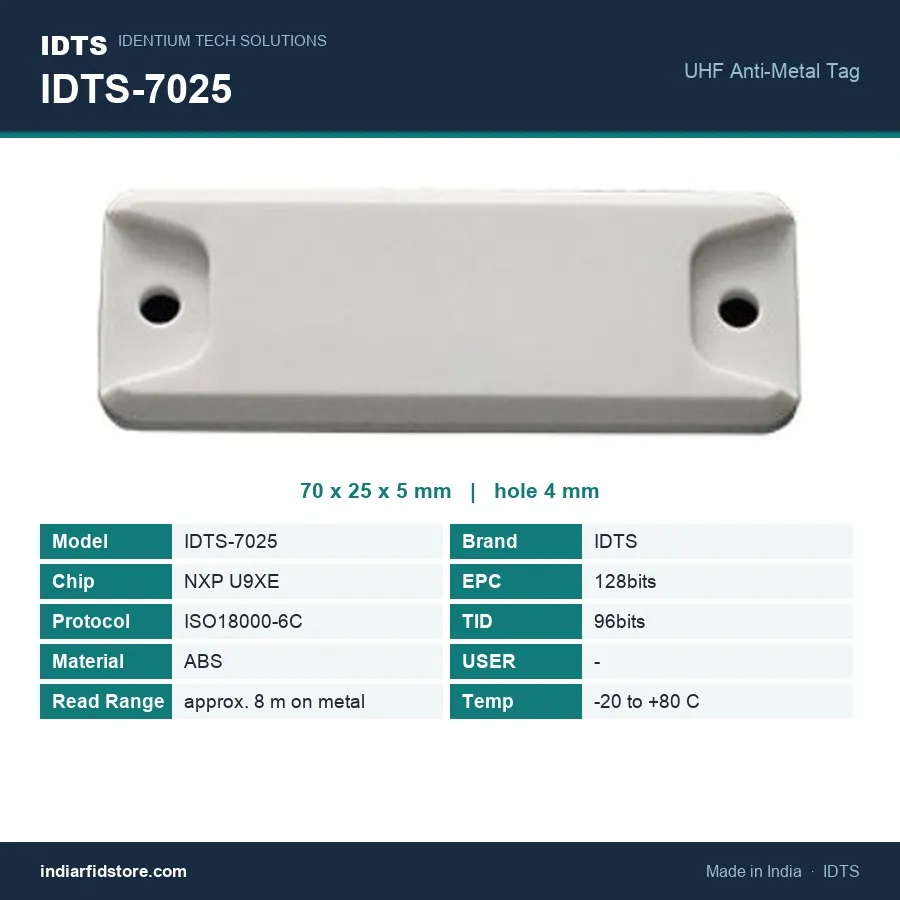

Specifications
Datasheet (PDF)| Frequency | 860–960 MHz (covers India's 865–868 MHz band) |
|---|---|
| Protocol | ISO 18000-6C |
| Chip | NXP UCODE 9 (U9XE) |
| Memory | EPC 128 bits; TID 96 bits |
| Read range | Approx. 8 m on metal |
| Antenna | Built-in dual-folded design for on-metal use |
| Dimensions | 70 × 25 × 5 mm |
| Material | ABS |
| Colour | White |
| Mounting | Two 4 mm holes (one at each end); peel-off double-sided adhesive |
| Operating temperature | −20 °C to +80 °C |
Frequently asked questions
Does the IDTS-7025 read on steel racking and panels?
Which chip does it use, and will my reader read it?
How do I fix the tag to an asset?
Can I get custom encoding or printed numbers?
Will I always get 8 m?
