Model ID-BLE-C08Identium

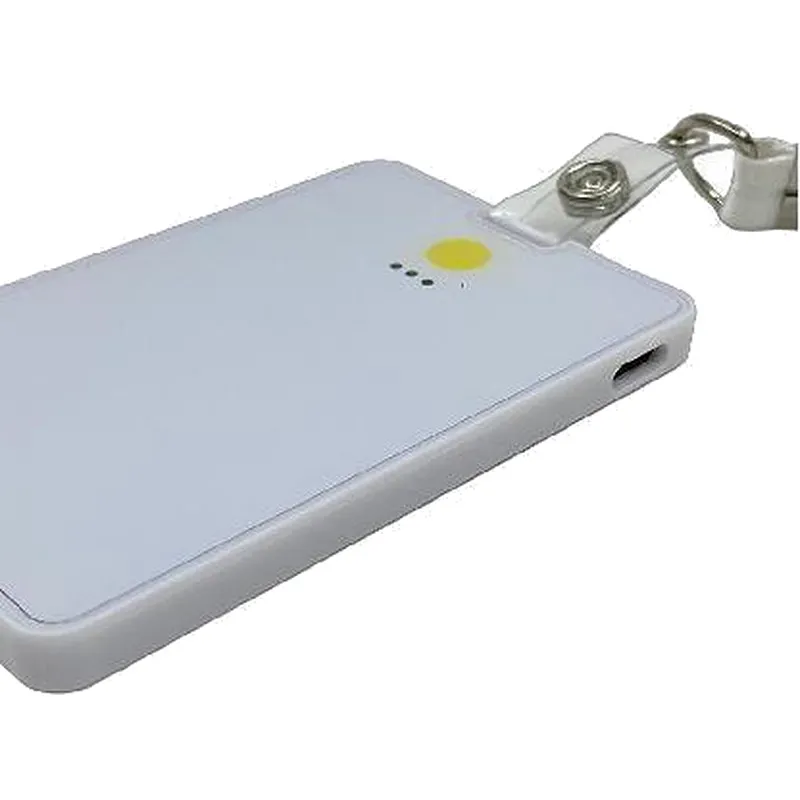

BLE Work Card with RFID ID-BLE-C08 (AOA, Dual-Technology)
A lanyard staff badge that pairs a Bluetooth Low Energy beacon with RFID tag support. It supports AOA for sub-metre positioning with ID-AOA-GW25 anchors and has a scan + broadcast mode. 89 × 58 × 7 mm, 42 g, with a rechargeable battery.
₹1,250
per piece + 18% GST
Minimum order: 100 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 196 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
Key features
- BLE beacon plus RFID tag support in one lanyard badge
- Supports Bluetooth AOA: sub-metre positioning with ID-AOA-GW25 anchors
- Broadcast mode or scan + broadcast mode; accelerometer supported
- Rechargeable 1500 mAh Li-Po: 0.5 years at 0 dBm / 500 ms; 30 days in scan + broadcast
- Up to 100 m in open space; iBeacon and Eddystone
- 89 × 58 × 7 mm and 42 g; operates from −20 °C to +70 °C
- Protocol
- Bluetooth Low Energy; iBeacon and Eddystone
- Frequency
- BLE: 2400–2483.5 MHz (licence-exempt 2.4 GHz band)
- Read range
- Up to 100 m (open space)
- Operating temperature
- −20 °C to +70 °C
Overview
A BLE + RFID work card for staff location
The ID-BLE-C08 is a staff badge that carries two technologies: a Bluetooth Low Energy beacon for live location, and RFID tag support, so one card on a lanyard can serve both tracking and card-based tasks. It measures 89 × 58 × 7 mm and weighs 42 g. The RFID frequency and chip are confirmed for your readers at order time.
How the ID-BLE-C08 is located
- Gateway zones: ID-BGW-02 gateways across the site receive the card's broadcasts and report them over Ethernet, Wi-Fi or 4G; RSSI zoning resolves the wearer to roughly 10 m.
- Sub-metre fixes: because the card supports AOA, ID-AOA-GW25 AOA anchors can fix its position to 0.1–1 m where they are installed.
The card sends iBeacon and Eddystone frames on the licence-exempt 2.4 GHz band (2400–2483.5 MHz), up to 100 m in open space, and BLE apps on phones can read them as well. Its settings are managed in the Identium Connect app.
Broadcast or scan + broadcast
In broadcast mode the card only advertises, and the rechargeable 1500 mAh Li-Po (3.7 V) is rated for 0.5 years at 0 dBm / 500 ms. In scan + broadcast mode the rating drops to 30 days. An accelerometer is supported. It is life-waterproof, for use from −20 °C to +70 °C.
ID-BLE-C08 or ID-BLE-S25?
Choose the C08 when the badge must also carry RFID. If BLE location alone is enough, the ID-BLE-S25 is a thinner, lighter card: 4.3 mm and 20 g, rated IP67, and also AOA-capable. Other badges, bracelets and fobs are listed under BLE wearables and work cards.
Typical applications
- Staff ID and location
- Factory personnel tracking
- Hospital staff location
- Security facility staff
- Data centre staff
- Logistics site workers
Specifications
Datasheet (PDF)| Type | BLE work card badge with RFID tag support, worn on a lanyard |
|---|---|
| Positioning | Bluetooth AOA (sub-metre) with ID-AOA-GW25 anchors; RSSI (zone level) with ID-BGW-02 gateways |
| Protocol | Bluetooth Low Energy; iBeacon and Eddystone |
| Frequency | BLE: 2400–2483.5 MHz (licence-exempt 2.4 GHz band) |
| RFID | RFID tag support (frequency and chip confirmed for your readers when ordering) |
| Operating modes | Broadcast; scan + broadcast |
| Transmit power | −40 to +4 dBm |
| Broadcast interval | Default 3 s |
| Read range | Up to 100 m (open space) |
| Accelerometer | Supported |
| Battery | Li-Po 1500 mAh, rechargeable, 3.7 V |
| Battery life | 0.5 years (0 dBm / 500 ms, broadcast only); 30 days (scan + broadcast) |
| Dimensions | 89 × 58 × 7 mm |
| Weight | 42 g |
| Water resistance | Life-waterproof (no IP rating specified) |
| Operating temperature | −20 °C to +70 °C |
| Configuration | Identium Connect mobile app |
| Compatible with | ID-AOA-GW25 AOA anchor; ID-BGW-02 BLE gateway; BLE phone apps |
Frequently asked questions
Which RFID technology does the ID-BLE-C08 carry?
The card supports an RFID tag alongside its BLE beacon; the RFID frequency and chip are confirmed for your readers at order time. Tell us which door, attendance or canteen readers it must work with before you order.
How long does the ID-BLE-C08 battery last between charges?
The rechargeable 1500 mAh Li-Po is rated for 0.5 years in broadcast-only mode at 0 dBm / 500 ms, and about 30 days in scan + broadcast mode. Higher transmit power or faster intervals shorten both figures.
What is the difference between the ID-BLE-C08 and the ID-BLE-S25?
Choose the C08 when the badge must also carry RFID: it adds RFID tag support in an 89 × 58 × 7 mm, 42 g card that is life-waterproof, with a 1500 mAh battery. The ID-BLE-S25 is BLE only, 4.3 mm and 20 g, rated IP67, with an 850 mAh battery. Each card supports AOA positioning with ID-AOA-GW25 anchors and is rated up to 100 m in open space.
Do I need AOA anchors to use the ID-BLE-C08?
No. With ID-BGW-02 gateways alone it is tracked by RSSI to about 10 m. Add ID-AOA-GW25 anchors where you need sub-metre positions; one anchor covers a radius of up to about twice its mounting height, so up to roughly 6 m from a 3 m ceiling.
