Wi-Fi UHF 4 Port Reader - IHZ4(Wi-Fi) – Impinj E710
The IHZ4 4-port UHF RFID reader with built-in Wi-Fi, for read points where running a network cable is hard or only temporary. Impinj E710, up to 1,000 tags per second, up to 30 m, plus RJ45, RS-232 and USB.
- Model:
- IDTS-IHZ4(Wifi)
- Brand:
- Identium
- Chip:
- Impinj E710, dual power-amplifier circuit
- Protocol:
- ISO/IEC 18000-6C (EPC C1 Gen2), ISO/IEC 18000-6B, Impinj Gen2X
- Frequency:
- 865–868 MHz (India, ETSI EN 302 208); 902–928 MHz (FCC Part 15) version
- Frequency stability:
- ≤ ±10 ppm
- Datasheet:
- PDF · 210 KB
- Listing updated:
₹70,000
per piece + 18% GST
₹82,600 incl. GST
Min. order 1 pieceBuy online and pay by NEFT or UPI, or request a quote
- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Buy online, pay by NEFT or UPI · in-stock items are dispatched the same day after payment · shipping ₹300 per kg + GST
Sold by India RFID Store, the online catalogue of Identium Tech Solutions Pvt Ltd, an RFID manufacturer in New Delhi, India, in business since 2010.
Key features
- Built-in Wi-Fi sends tag data to your network without a data cable
- Wired RJ45, RS-232 and USB 2.0 also available
- Impinj E710; up to 1,000 tags/s; reads up to 30 m, writes up to 8 m
- 4 × SMA antenna ports with antenna detection and RSSI
- 3 inputs and 3 relay outputs for barriers, lamps and sensors
- Java, .NET and C++ APIs plus a direct post API
Overview
Wi-Fi UHF RFID 4-port reader for hard-to-cable sites
This IHZ4 version adds built-in Wi-Fi to the 4-port UHF RFID reader, so tag data can reach your server without a network cable to the read point. It is meant for places where pulling Ethernet is costly, disruptive or temporary: an older building with finished walls, a rented warehouse, a production line that gets rearranged, or a gate that may move next season.
What changes, and what stays the same
The RF side is the IHZ4 platform: Impinj E710 with a dual power-amplifier circuit, up to 1,000 tags per second, up to 30 m read and 8 m write range depending on the site, and four SMA antenna ports. The reader still needs power at the mounting point; Wi-Fi removes only the data cable.
Wired connections are RJ45, RS-232 and USB 2.0. Unlike the standard IHZ4, this version does not list RS-485 or Wiegand, so if tag IDs must go to a door or attendance controller over Wiegand, choose the standard or the PoE IHZ4. The 3 inputs and 3 relay outputs remain for sensors, lamps and barriers.
Getting a stable wireless link
- Check Wi-Fi signal strength at the exact mounting point first; metal racking and rolling shutters weaken it.
- Give the reader a fixed IP address or DHCP reservation so your software always finds it.
- Use the direct post API to push reads to your server, and design the software to cope with a short network drop.
- Mount the reader near its read zone so the antenna coaxial cables stay short.
For where readers fit in a warehouse rollout, see the warehouse RFID implementation guide.
Where the IDTS-IHZ4(Wifi) is used
- Retrofits in finished buildings
- Rented warehouses
- Temporary event gates
- Reconfigurable production lines
- School attendance points
- Library exits
Product videos
Specifications
Datasheet (PDF)| Model | IDTS-IHZ4 (Wi-Fi) |
|---|---|
| Chip | Impinj E710, dual power-amplifier circuit |
| Protocol | ISO/IEC 18000-6C (EPC C1 Gen2), ISO/IEC 18000-6B, Impinj Gen2X |
| Frequency | 865–868 MHz (India, ETSI EN 302 208); 902–928 MHz (FCC Part 15) version |
| Output power | 0–33 dBm (±1 dBm), adjustable in 1 dB steps |
| Channel bandwidth | < 200 kHz |
| Frequency stability | ≤ ±10 ppm |
| Work mode | Fixed or hopping frequency |
| Read speed | Up to 1,000 tags/s |
| Anti-collision | Multi-tag reading |
| Read range | Up to 30 m (antenna, tag and environment dependent) |
| Write range | Up to 8 m (environment dependent) |
| Ports | 4 × SMA antenna ports |
| Interface | Wi-Fi, RJ45, RS-232, USB 2.0 |
| I/O | 3 inputs, 3 relay outputs |
| Software | RSSI, antenna detection, online update, data filtering |
| API | Java, .NET, C++, direct post API |
| Housing | Aluminium, anti-shock design |
| Indicators | Power and status |
| Operating temperature | -20 °C to +70 °C |
| Storage temperature | -40 °C to +85 °C |
| Atmospheric pressure | 86–108 kPa |
| Humidity | Non-condensing |
| Dimensions | 170 × 120 × 25 mm |
| Weight | 0.5 kg |
Software, SDK and manuals
4 downloads for the IDTS-IHZ4(Wifi).

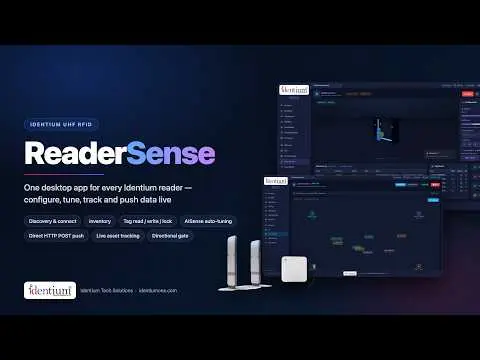

Identium ReaderSense — Windows Installer Desktop software
Windows · Setup .exe · 85.0 MBDownloadIdentium ReaderSense — Windows Portable Desktop software
Windows · Portable .exe · 84.7 MBDownloadIdentium ReaderSense — macOS (Apple Silicon) Desktop software
macOS · M1/M2/M3 · 103.8 MBDownloadIdentium ReaderSense — macOS (Intel) Desktop software
macOS · Intel · 111.6 MBDownload
