UHF RFID 16-Port Fixed Reader IDTS-IHZ16 (Impinj E710)
A sixteen-port fixed UHF RFID reader on the Impinj E710, reading up to 1,000 tags a second at up to 30 m, with Ethernet, serial, Wiegand and relay I/O for attendance, access, library and toll systems.
Price on request
Minimum order: 1 piece · the final price for your quantity is confirmed in the quote
View datasheet PDF · 233 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
Key features
- Impinj E710 platform with dual power-amplifier circuit
- 16 × SMA antenna ports; reads up to 30 m, writes up to 8 m (site dependent)
- Up to 1,000 tags per second with multi-tag anti-collision
- RJ45, RS-232, RS-485, Wiegand and USB 2.0; 3 inputs and 3 relay outputs
- Java,.NET and C++ APIs plus a direct post API
- Aluminium, anti-shock housing, 170 × 120 × 25 mm
- Chip
- Impinj E710, dual power-amplifier circuit
- Protocol
- ISO/IEC 18000-6C (EPC C1 Gen2), ISO/IEC 18000-6B, Impinj Gen2X
- Frequency
- 865–868 MHz (India, ETSI EN 302 208); 902–928 MHz (FCC Part 15) version
- Frequency stability
- ≤ ±10 ppm
Overview
IDTS-IHZ16 16-port UHF RFID reader for fixed read points
The IDTS-IHZ16 is the IHZ4 with sixteen SMA antenna ports and is otherwise the same reader. It is a fixed UHF RFID reader that drives up to sixteen external antennas from one unit. Inside is the same Impinj E710 platform with a dual power-amplifier circuit, listed at up to 1,000 tags per second and, with the right antennas and tags, up to 30 m of read range. Sixteen ports suit layouts with many read zones close to one reader, such as a row of entrances, library exits, controlled doors or toll lanes.
Connecting a sixteen-zone reader
However many antennas are fitted, the reader has one set of interfaces, so plan what each one serves:
- RJ45 Ethernet: the main data path for all sixteen zones, to network software, a server or the direct post API
- Wiegand: tag IDs in card-reader format for an access or attendance controller at a door or gate within the layout
- RS-485 and RS-232: PLCs and serial controllers, with RS-485 for the longer runs
- USB 2.0: set-up and testing at a bench
- 3 inputs and 3 relay outputs: sensors, plus a boom barrier, hooter or lamp where a zone needs one
Custom software can use the Java, .NET and C++ APIs. The reader also reports RSSI, filters data, takes online updates and detects connected antennas, which helps you check sixteen cable runs before handover.
Planning the read zones
Sixteen SMA ports let one reader serve many read zones: a row of dock doors, every lane of a multi-lane gate, portals with antennas on several sides, or many shelf and cabinet zones in a store room. Mount the reader centrally so that each coaxial cable to its antenna stays short; long coax runs lose RF signal. Output power is adjustable from 0 to 33 dBm in 1 dB steps, so the read field can be trimmed to stop tags beyond the zone being picked up.
Like the IHZ4, it has an aluminium, anti-shock housing meant for factory and warehouse sites. Choose UHF antennas to suit each zone from the RFID antenna range.
Which port count to choose
Match the port count to the number of read zones. The 4-port IHZ4 suits a single gate or doorway and the 8-port IDTS-IHZ8 a few neighbouring zones; the IDTS-IHZ16 is for layouts with more zones than eight ports can cover. All three are the same reader apart from the number of antenna ports.
Typical applications
- School time attendance
- Personnel tracking in plants
- Library security gates
- Door access control
- Toll plaza lanes
- Warehouse dock doors
Specifications
Datasheet (PDF)| Model | IDTS-IHZ16 |
|---|---|
| Chip | Impinj E710, dual power-amplifier circuit |
| Protocol | ISO/IEC 18000-6C (EPC C1 Gen2), ISO/IEC 18000-6B, Impinj Gen2X |
| Frequency | 865–868 MHz (India, ETSI EN 302 208); 902–928 MHz (FCC Part 15) version |
| Output power | 0–33 dBm (±1 dBm), adjustable in 1 dB steps |
| Channel bandwidth | < 200 kHz |
| Frequency stability | ≤ ±10 ppm |
| Work mode | Fixed or hopping frequency |
| Read speed | Up to 1,000 tags/s |
| Anti-collision | Multi-tag reading |
| Read range | Up to 30 m (antenna, tag and environment dependent) |
| Write range | Up to 8 m (environment dependent) |

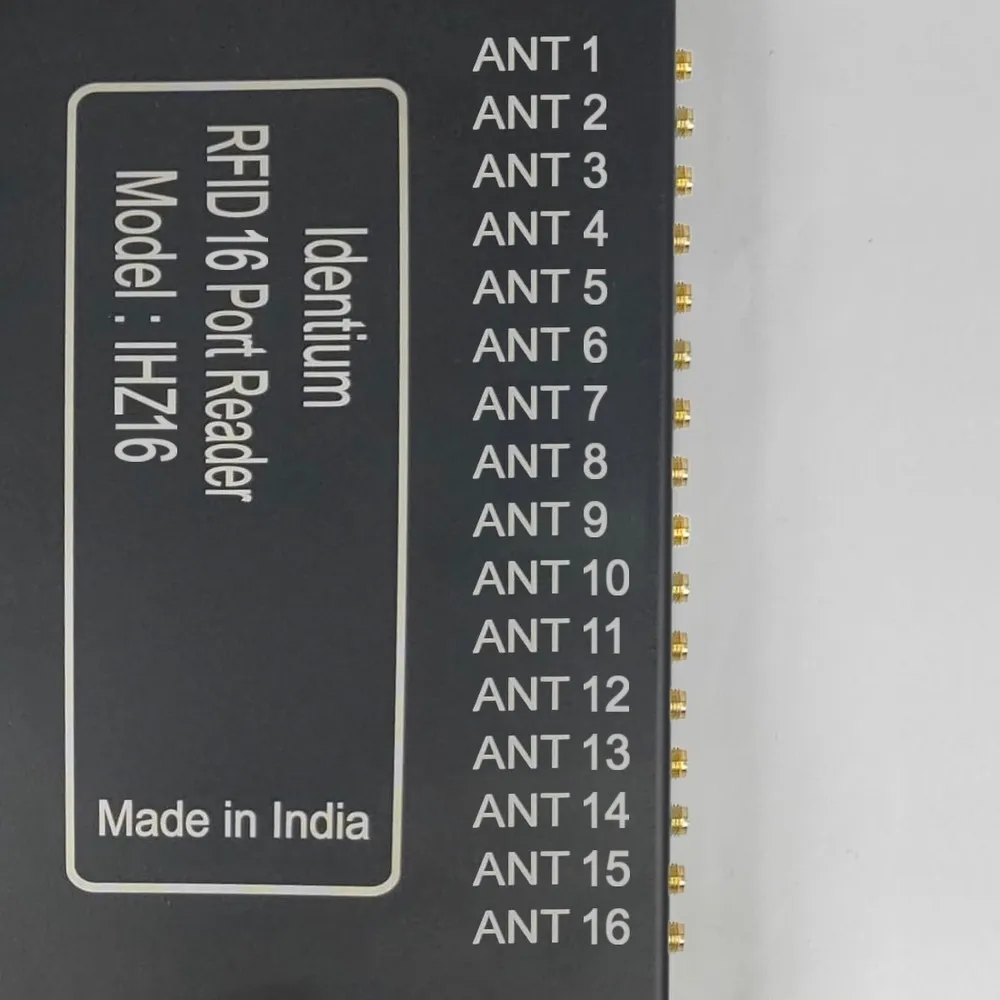

| Ports | 16 × SMA antenna ports |
| Interface | RJ45, RS-232, RS-485, Wiegand, USB 2.0 (Wi-Fi, Bluetooth can be added) |
| I/O | 3 inputs, 3 relay outputs |
| Software | RSSI, antenna detection, online update, data filtering |
| API | Java,.NET, C++, direct post API |
| Housing | Aluminium, anti-shock design |
| Indicators | Power and status |
| Operating temperature | -20 °C to +70 °C |
| Storage temperature | -40 °C to +85 °C |
| Atmospheric pressure | 86–108 kPa |
| Humidity | Non-condensing |
| Dimensions | 170 × 120 × 25 mm |
| Weight | 0.5 kg |
