RFID Bluetooth Reader Evaluation Kit – MUBR01 UHF + Sample Tags
Try RFID shelf, counter and tray counts with your own Android phone: the MUBR01 pocket UHF reader pairs over Bluetooth LE, and the kit adds UHF sample tags and the free MUBR01 app (no licence fee).
₹18,995
per piece + 18% GST
₹22,414.10 incl. GST
Minimum order: 1 piece · buy online and pay by NEFT or UPI, or request a quote
View datasheet PDF · 239 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Buy online, pay by NEFT or UPI · in-stock items are dispatched the same day after payment · shipping ₹300 per kg + GST
Key features
- Works with the Android phone or tablet you already use (Android 4.3+, Bluetooth LE)
- MUBR01 Android app is free: inventory, Excel export and keyboard wedge, no licence fee
- Sample kit: UHF tags matched to your products, such as FMCG packs, jewellery or files
- 0–3 m read range, with RF output adjustable between 5 and 30 dBm
- Keyboard wedge types scanned EPCs into any app's text field on the phone
- About 6 h of continuous reading per charge, or about 30 h on standby
- Frequency
- 865–868 MHz (ETSI / India)
- Protocol
- EPC Class 1 Gen 2 (ISO 18000-6C)
- Read range
- 0–3 m
- Interface
- Bluetooth 4.0 BLE
Overview
Who the Bluetooth RFID reader evaluation kit suits
Most shop floors already have Android phones; what they lack is a UHF radio. The MUBR01 kit adds one in a pocket-sized reader with one control button and three indicator lights, so you can try RFID at a shop counter, an FMCG shelf, a jewellery tray or a records room on a device your staff already know. You supply the Android device, and the MUBR01 app on it drives the reader over Bluetooth LE.

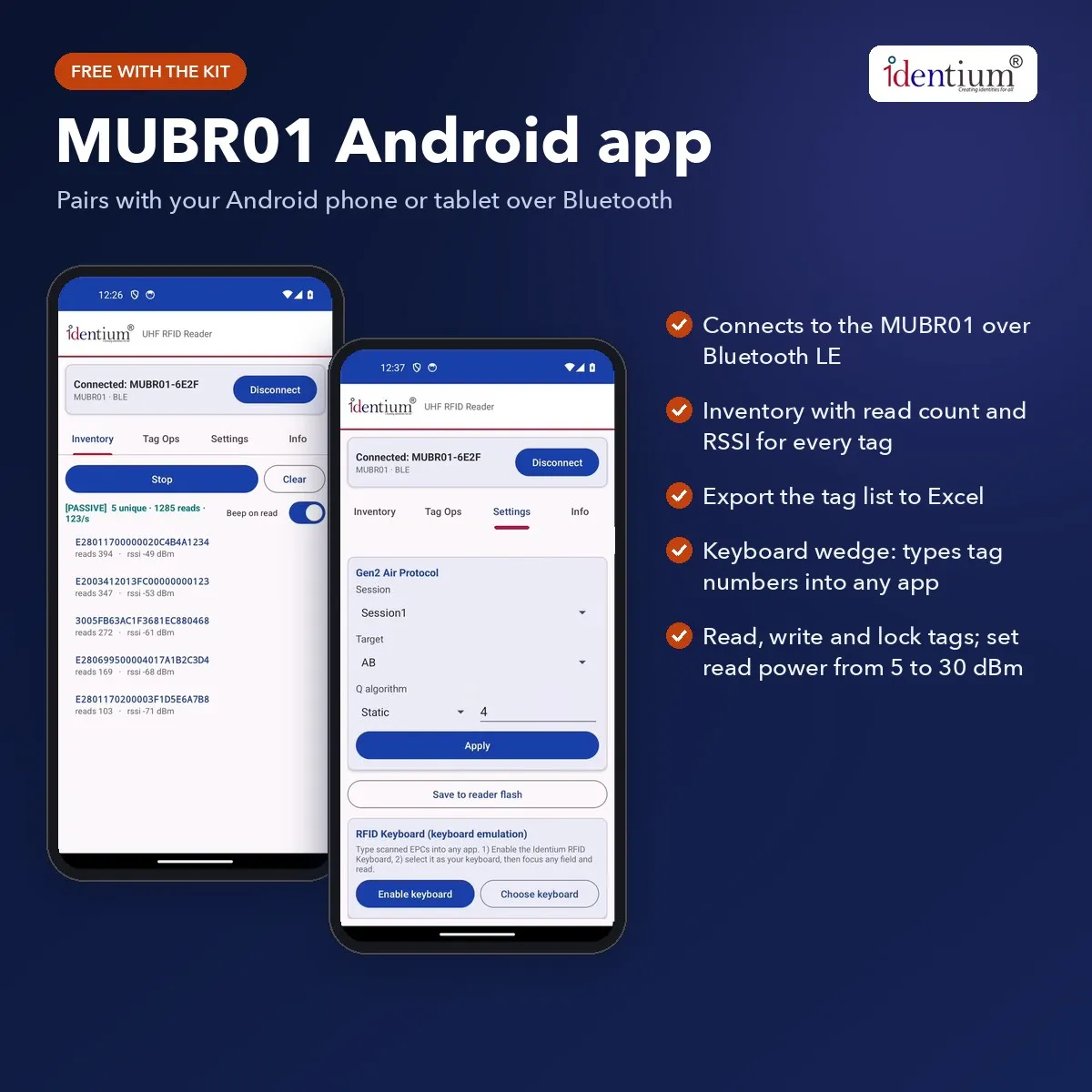

Testing with the MUBR01 app
Pair the reader from the app's scan screen and start an inventory. The read count and RSSI next to each EPC tell you at a glance whether a tag on a foil-wrapped pack or a chain tray is being heard, or only just.
- Find both read zones. Count a single tray at low power, then raise the power and count the whole shelf, noting the point where neighbouring trays start to creep in. Save the setting that works to the reader's flash so it holds for the next session.
- Button or screen. Compare active mode, where a trigger pull on the reader starts the read, with passive mode, where the app polls, and see which your staff prefer at a busy counter.
- Share a count. Export the tag list to Excel and compare it with your billing or ERP stock figures.
- Try it in your own software. Open your billing or stock screen on the phone and check that keyboard mode puts each tag number in the right field, so you know whether you will need the SDK at all.
- Set up tags. Write your own codes to the sample tags, and lock or kill a tag with a password.
Counter and shelf checks: when the Bluetooth reader kit fits
The MUBR01 reads at 0–3 m and at 50 tags per second or more, which fits close work: a shelf, a counter, a tray, a carton of files. It is not meant for sweeping a warehouse aisle from a distance; for that, the CX1500N inventory kit with its 0–25 m stated range is the better trial. If you only want a first look at UHF on a phone, with no battery to charge, the UCR10 starter kit plugs straight into USB-C.
Developers who want their own app rather than the MUBR01 app can start from the SDK and demo apps. Our guide to scanning RFID into Excel with keyboard mode explains the keyboard approach, and full specs are on the MUBR01 reader page.
Typical applications
- FMCG shelf checks
- Retail counter stock
- Jewellery tray counts
- File and document tracking
- Store backroom checks
- Distributor stock audits
Specifications
Datasheet (PDF)| Kit contents | MUBR01 pocket UHF reader, sample kit of UHF RFID tags, MUBR01 Android app |
|---|---|

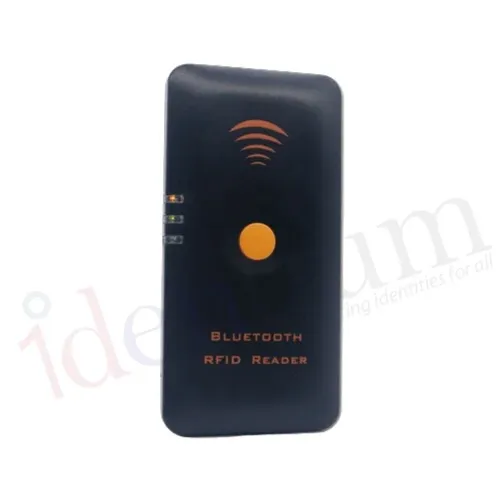

| Reader | MUBR01 pocket UHF reader: no screen, one button, three status lights |
| Compatible with | Your Android phone or tablet, Android 4.3 and above |
| Sample kit | UHF RFID tags/labels matched to your products or files; sample mix agreed and confirmed with your order |
| Free software | MUBR01 Android app; no licence fee |
| Software features | Scan for readers and connect over BLE; inventory with unique tags, total reads, read rate, per-EPC read count and RSSI; Excel export; keyboard wedge into any app; read/write memory banks, lock and kill with password; read/write power, region and Gen2 session/target/Q saved to reader flash; passive and active (trigger) modes |
| Frequency | 865–868 MHz (ETSI / India) |
| Protocol | EPC Class 1 Gen 2 (ISO 18000-6C) |
| Read range | 0–3 m |
| Read rate | ≥ 50 tags/s |
| RF output | 5–30 dBm, adjustable |
| Antenna | Built-in 2 dBi ceramic |
| Interface | Bluetooth 4.0 BLE |
| Battery | 3000 mAh Li-polymer, not user-replaceable; about 6 h continuous reading, about 30 h standby |
| Charging | Micro-USB, about 5.5 h |
| Dimensions | 130 × 65 × 16 mm |
| SDK | SDK, demo apps and integration guides for Java, Kotlin and.NET MAUI |
| Compliance | BIS & WPC Approved |
Frequently asked questions
Is a phone included in the Bluetooth kit?
Can scanned tags go straight into our billing or ERP screen?
Is a 0–3 m range enough for jewellery and FMCG checks?
Which sample tags suit FMCG shelves, jewellery trays or files?
