ID-RL7014 Retail UHF RFID Inlay & Label 70x14mm – Stacked Items, Garments, Metal & Liquid Tolerant | M830

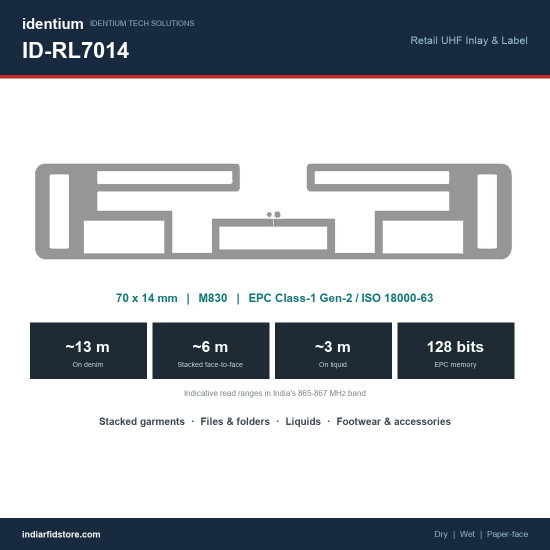

The ID-RL7014 is a 70 × 14 mm passive UHF RFID inlay built for the jobs that defeat ordinary inlays: densely stacked items that detune against one another, goods sitting on or near liquid, and thin garments read in bulk. A single SKU covers softlines, footwear and accessories, and the same dense-stack behaviour carries over to other tightly packed items such as files and folders. It ships as a dry inlay, a wet (self-adhesive) inlay or a paper-face label ready for on-demand printing and encoding.

Why It Performs Where Others Don't

Most UHF inlays are characterised in free space, which flatters them. The ID-RL7014's antenna is designed for the opposite case — bulk reading of densely stacked, thin garments packed face to face, where ordinary inlays detune against one another — and it holds up near both metal and liquid. In India's 865–867 MHz band the inlay actually reads further on plastic and on liquid than it does in the FCC band, which is unusual and directly useful here.

• Closely stacked items: approx. 6 m tag-to-tag face to face — the dense-stack case where inlays normally detune each other
• Liquids: approx. 3 m on liquid in the India band, versus approx. 2 m at 915 MHz — better, not worse, at Indian frequencies
• Garments: approx. 13.5 m on a single layer of denim
• Plastic: approx. 16 m — the strongest surface for this inlay in the India band

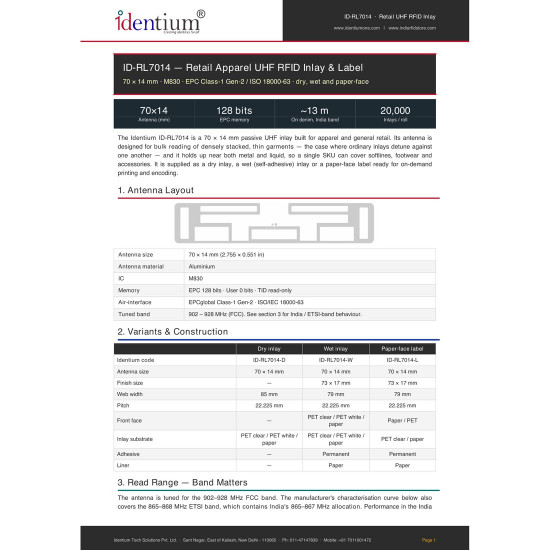

Key Specifications

• Antenna size: 70 × 14 mm (2.755 × 0.551 in)
• Antenna material: Aluminium
• IC: M830
• Memory: EPC 128 bits · User 0 bits · TID read-only
• Air interface: EPCglobal Class-1 Gen-2 · ISO/IEC 18000-63
• Tuned band: 902–928 MHz (FCC). Characterised across 865–868 MHz (ETSI) too, which contains India's 865–867 MHz allocation
• Radiation pattern: Linear dipole — two-lobe response with nulls off the ends
• Operating temperature: −20 °C to +50 °C
• Storage humidity: 20% to 80% RH
• Shelf life: Dry 2 years · Wet and paper-face 1 year (at +25 °C / 40% RH)

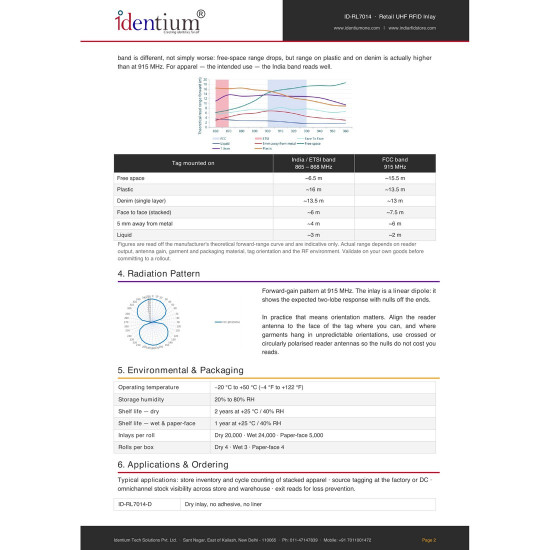

Read Range by Surface

Indicative forward-range figures, India/ETSI band versus FCC band:

• Plastic: approx. 16 m (India) · approx. 13.5 m (FCC)
• Denim, single layer: approx. 13.5 m (India) · approx. 13 m (FCC)
• Face to face, stacked: approx. 6 m (India) · approx. 7.5 m (FCC)
• Free space: approx. 6.5 m (India) · approx. 15.5 m (FCC)
• 5 mm away from metal: approx. 4 m (India) · approx. 6 m (FCC)
• Liquid: approx. 3 m (India) · approx. 2 m (FCC)

Variants & Construction

• ID-RL7014-D — Dry inlay: no adhesive, no liner. Web width 85 mm. Substrate PET clear / PET white / paper. 20,000 inlays per roll, 4 rolls per box.
• ID-RL7014-W — Wet inlay: permanent adhesive on a paper liner. Finish size 73 × 17 mm, web width 79 mm. Face and substrate PET clear / PET white / paper. 24,000 inlays per roll, 3 rolls per box.
• ID-RL7014-L — Paper-face label: printable and encodable. Finish size 73 × 17 mm, web width 79 mm. Face paper / PET, substrate PET clear / paper, permanent adhesive on paper liner. 5,000 labels per roll, 4 rolls per box.
• Pitch: 22.225 mm (0.875 in) across all three variants

Applications

• Apparel and softlines: store inventory and cycle counting of stacked garments, source tagging at the factory or DC
• Densely packed files and folders: the same face-to-face stacking behaviour that suits garment stacks applies to any tightly packed items. This adjacency is not separately characterised in the datasheet — trial it on your own files before rollout
• Liquid-adjacent goods: the manufacturer's curve puts this inlay at approx. 3 m on liquid in the India band against approx. 2 m at 915 MHz. That is tolerance near liquid, not a tag engineered for immersion or for bottle wrap — validate on your own packaging
• Footwear and accessories: one SKU across the whole softlines range
• Omnichannel stock visibility across store and warehouse
• Exit reads for loss prevention

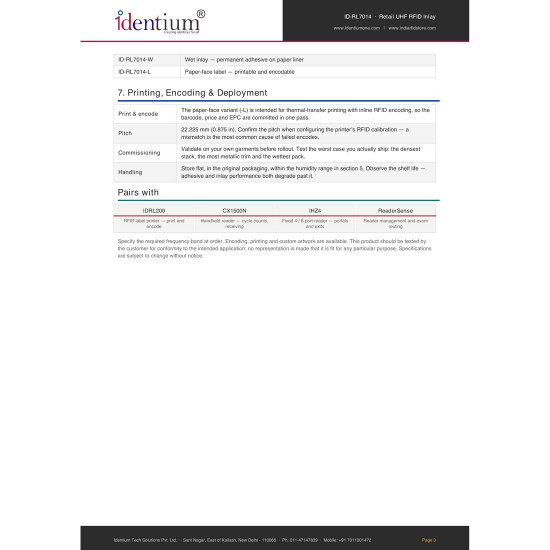

Printing, Encoding & Deployment

• Print and encode: the paper-face variant (-L) is intended for thermal-transfer printing with inline RFID encoding, so barcode, price and EPC are committed in one pass
• Printer setup: confirm the 22.225 mm pitch when configuring the printer's RFID calibration — a pitch mismatch is the most common cause of failed encodes
• Reader antennas: the inlay is a linear dipole, so orientation matters. Where items hang or sit in unpredictable orientations, use crossed or circularly polarised reader antennas so the pattern nulls do not cost you reads
• Handling: store flat in the original packaging within the stated humidity range, and observe the shelf life
• Ordering: specify the required frequency band at order. Encoding, printing and custom artwork are available

Read-range figures are taken from the manufacturer's theoretical forward-range curve and are indicative only. Actual range depends on reader output, antenna gain, the material and packaging being tagged, tag orientation and the RF environment. This product should be tested by the customer for conformity to the intended application; validate on your own goods before committing to a rollout.
