UHF RFID Hang Tag for Retail & Apparel IDTS-HT11037
A printable paper RFID hang tag with a UHF inlay laminated inside, for garments, footwear and other retail goods. Standard 110 × 37 mm with a 3 mm hole; 80 × 50 mm, 60 × 40 mm and other sizes made to order.
Price on request
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
Choose a size
Optional: you can also confirm it in the quote
- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request
Key features
- Impinj Monza R6-P chip, EPC Gen2 / ISO 18000-6C, 860–960 MHz
- UHF inlay laminated between two faces of 250 g coated art paper
- 110 × 37 mm standard; 80 × 50 mm, 60 × 40 mm and other sizes to order
- Printed with your artwork, price, barcode and numbering, and EPC-encoded, to order
- 3 mm hanging hole for a string, loop or plastic tag fastener
- 128-bit EPC, 96-bit TID and 32-bit user memory; chip rated for 100,000 writes
- Standard tag
- 110 × 37 mm (±0.5 mm), 3 mm corner radius
- Chip
- Impinj Monza R6-P
- Frequency
- 860–960 MHz (covers India’s 865–868 MHz band)
- Protocol
- EPC Class 1 Gen 2 / ISO/IEC 18000-6C
Overview
What an RFID hang tag does in a retail store
An RFID hang tag, or RFID swing tag, is a paper price ticket with a UHF RFID inlay laminated inside. The printed face carries the brand, price and barcode, while the chip gives each item its own EPC number that a reader picks up without line of sight.
Because it replaces the swing ticket rather than adding a label, it goes on at the same packing step. Staff can count a rail of hung garments without unhooking tickets, billing counters can read several items together, and exit readers can support loss prevention; see RFID self-checkout and billing counters.
How the RFID swing tag is built
An Impinj Monza R6-P inlay is laminated between two printable faces of coated art paper, so the tag prints and hangs like a normal swing ticket and reads on standard EPC Gen2 UHF readers.
Choosing a size and format
The simplest switch keeps your current ticket size and layout. If yours differs from the standard tag, the RFID version can be made to match, with the inlay and build for that size confirmed in the quotation.
This is a finished ticket, printed and encoded to order. If you print and encode in-house on an RFID printer, a roll tag such as the UHF RFID Apparel Tag ID-3050 U8 suits better; for adhesive labels on boxes, see UHF RFID inlays and labels.
Attaching the RFID hang tag
- Attach: used as a UHF RFID garment tag, the standard tag hangs through its 3 mm hole on a string, loop or tag fastener.
- Handle: keep tags dry, sealed until use and out of direct sunlight; do not fold or crush the chip area.
Typical applications
- Apparel swing tickets
- Retail price tags
- Footwear and accessories
- Store stock counts
- Distribution centre receiving
- RFID billing counters
- Retail loss prevention
Specifications
Datasheet (PDF)| Type | Paper hang tag (swing tag) with a laminated UHF RFID inlay; passive, no battery |
|---|---|
| Size | 110 × 37 mm, 80 × 50 mm, 60 × 40 mm |
| Custom sizes | Other sizes made to order |

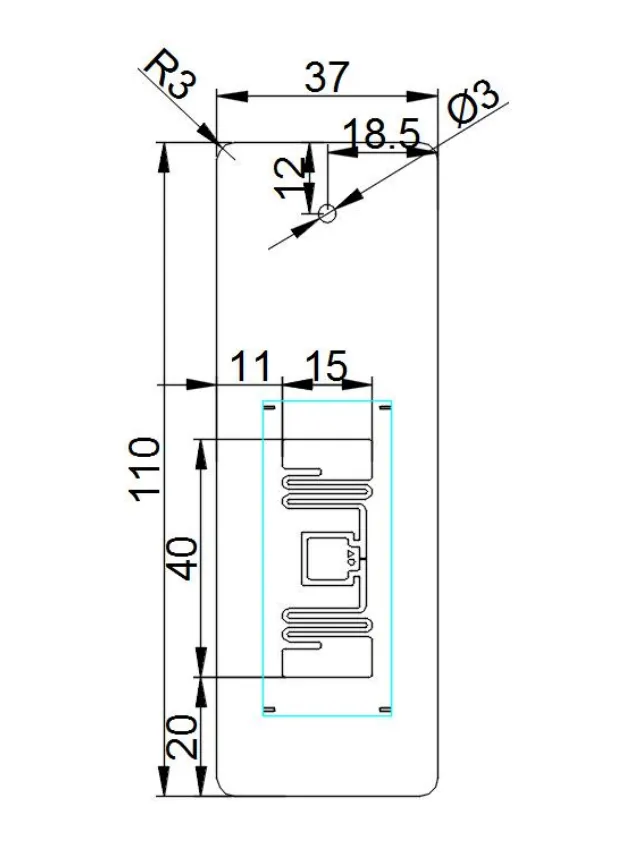

| Standard tag | 110 × 37 mm (±0.5 mm), 3 mm corner radius |
| Hanging hole | Ø 3 mm, centred, 12 mm from the top edge (110 × 37 mm tag) |
| Inlay | 40 × 15 mm dry inlay; etched aluminium antenna (10 µm) on 50 µm PET (110 × 37 mm tag) |
| Inlay position | 20 mm from the bottom edge, 11 mm from each side (110 × 37 mm tag) |

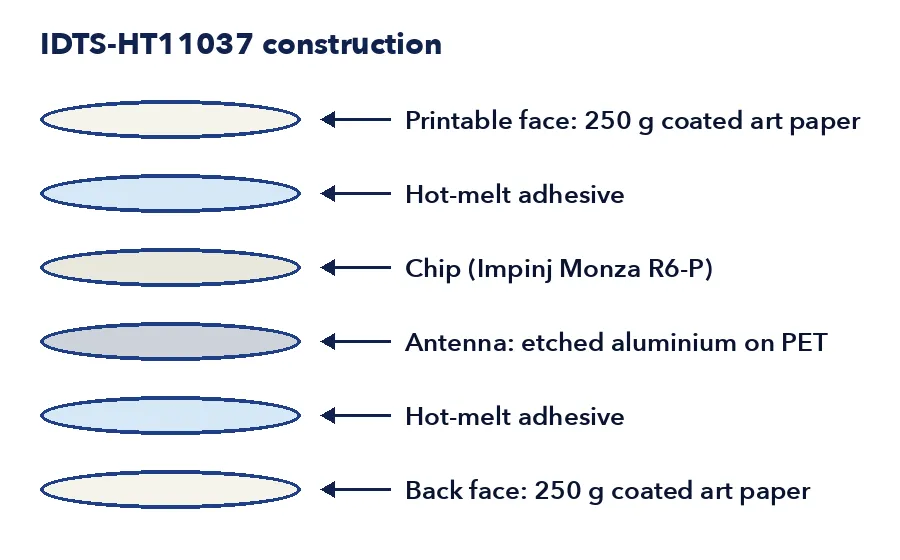

| Material | 250 g coated art paper / hot-melt adhesive / chip and aluminium antenna / hot-melt adhesive / 250 g coated art paper |
| Chip | Impinj Monza R6-P |
| Frequency | 860–960 MHz (covers India’s 865–868 MHz band) |
| Protocol | EPC Class 1 Gen 2 / ISO/IEC 18000-6C |
| Memory | EPC 128 bits (read/write); TID 96 bits (read-only); user 32 bits; access password 32 bits; kill password 32 bits |
| Chip write endurance | 100,000 cycles (IC rating) |
| Chip data retention | 50 years (IC rating) |
| ESD immunity | Up to 2,000 V (HBM) |
| Read range | Depends on the reader, antenna and the tagged item |
| Printing & encoding | Your artwork, price, barcode and numbering printed, and EPC encoded, to order |
| Application conditions | 10 to 40 °C, 20–80 % RH |
| Operating temperature | −20 to +50 °C, 20–80 % RH |
| Shelf life | 1 year in the sealed pack at 23 ± 5 °C and 50 ± 10 % RH, out of direct sunlight |
| Handling | Keep away from water and impact; do not bend or crush the chip area; not washable |
| Packaging | Single sheets, 100 pcs per packet |
| Compatible with | EPC Gen2 UHF RFID readers (handheld, fixed, desktop) working in 865–868 MHz |
Frequently asked questions
Can I get other sizes, or tags printed with my own design?
Will the hang tag read on garments exported to Europe or the US?
Which reader do I need, and how far does it read?
Can the tags come encoded with GS1 / EPC numbers?
Can the RFID hang tag go through washing?
