UHF RFID Medical Flag Label IDTS-MFL5530 (55 × 30 mm, UCODE 9)
A 55 × 30 mm UHF RFID flag label (flag tag) on a UCODE 9 chip, for test tubes, vials and small medical items. Only the lower 24 mm is adhesive and wraps the container; the upper 31 mm, carrying the chip, stands off it.
- Model:
- IDTS-MFL5530
- Brand:
- Identium
- Chip:
- UCODE 9
- Protocol:
- ISO/IEC 18000-6C, EPC Class 1 Gen 2
- Frequency:
- 860–960 MHz (covers India's 865–868 MHz band)
- Read range:
- Depends on the reader, antenna and item; request samples to test on your tubes
- Datasheet:
- PDF · 225 KB
- Listing updated:
₹8
per piece + 18% GST
Min. order 1,000 piecesThe final price for your quantity is confirmed in the quote
- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request a sample of this label
Sold by India RFID Store, the online catalogue of Identium Tech Solutions Pvt Ltd, an RFID manufacturer in New Delhi, India, in business since 2010.
Key features
- UCODE 9 chip, EPC Gen2 / ISO/IEC 18000-6C, 860–960 MHz (covers India's 865–868 MHz band)
- Flag design: a 24 mm adhesive tail wraps the tube; the 31 mm chip end stands off it
- 55 × 30 mm white PET label with a 20 × 40 mm aluminium-etched dry inlay
- 96-bit EPC, 96-bit TID with a 48-bit unique serial, 64 bits for kill/access passwords
- Rated −20 to +50 °C once applied; apply at 10–40 °C
- Rolls of 1,000 on a 3-inch core, vacuum-packed in ESD bags
Overview
IDTS-MFL5530 is a 55 × 30 mm UHF RFID flag label (flag tag) with a UCODE 9 chip, for test tubes, vials and other small medical items. It costs ₹8 + GST per label, the minimum order is 1,000 pcs, and once applied it is rated from −20 to +50 °C.
What an RFID flag label does on a tube or vial

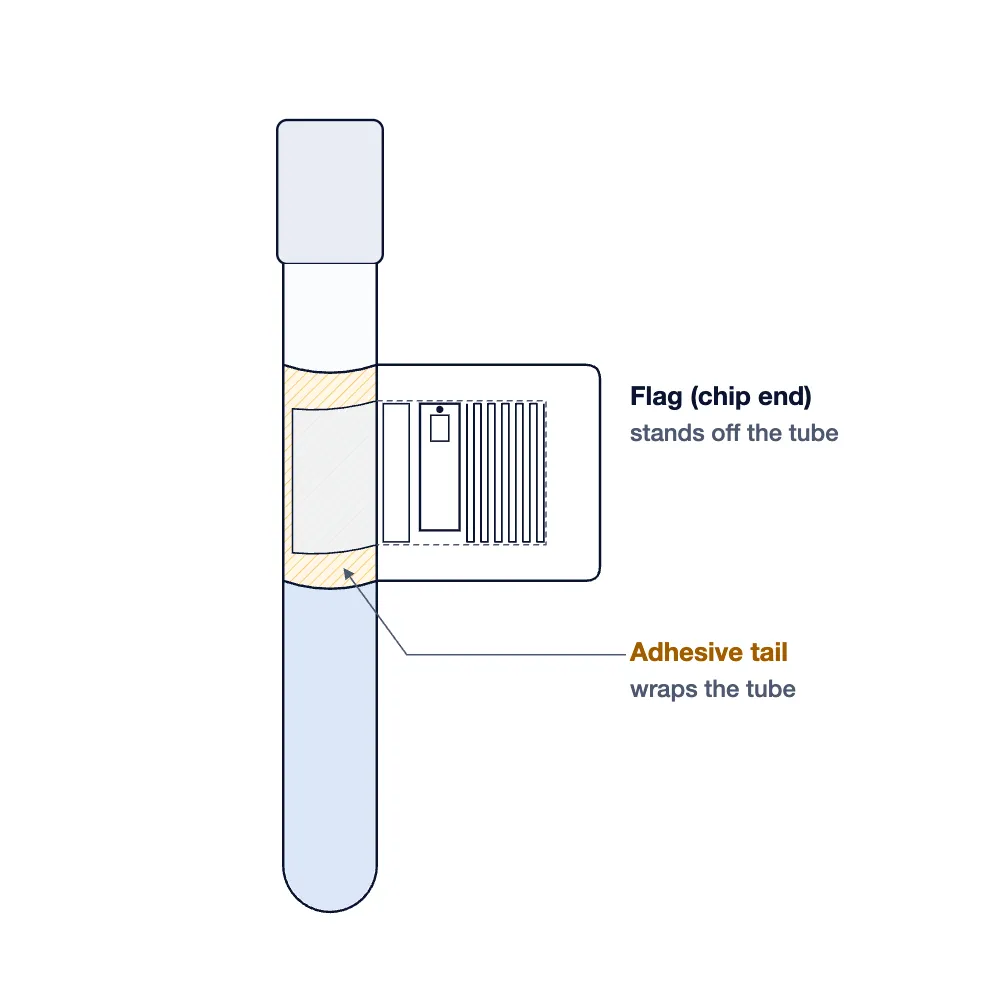

A flat UHF label wrapped round a tube or vial puts its whole antenna against the container. On this label only the lower 24 mm is adhesive, and that tail wraps the tube. The upper 31 mm, which carries the chip and the antenna's meander, is not stuck down and stands off the container like a flag; the rest of the antenna lies in the adhesive tail. Each tube carries its own writable EPC number for RFID sample tracking.
How to apply it
Apply the labels at 10–40 °C to a clean, dry tube, wrap the adhesive tail round the container and leave the flag free. Keep the rolls dry, and don't bend, crush or fold the chip area. Adhesion varies by surface, so try samples on your own tubes first.
Temperature limits
Once applied, the label is rated from −20 to +50 °C at 20–80 % relative humidity. It is not rated below −20 °C, so it is not for −80 °C freezers or liquid nitrogen, or for any process that heats it above 50 °C.
For a flat label that wraps round a tube, see the 15 × 40 mm test tube tag; for a flag label with an M800 or M700 chip, see the ID-2040-M800, or browse all specialty RFID labels.
Where the IDTS-MFL5530 is used
- Blood collection tubes
- Laboratory sample vials
- Pathology and diagnostic labs
- Hospital pharmacy vials
- Tubes in sample racks
Specifications
Datasheet (PDF)| Model | IDTS-MFL5530 |
|---|---|
| Type | UHF RFID flag label; passive, no battery |
| Chip | UCODE 9 |
| Protocol | ISO/IEC 18000-6C, EPC Class 1 Gen 2 |
| Frequency | 860–960 MHz (covers India's 865–868 MHz band) |
| Memory | EPC 96 bits (read/write); TID 96 bits incl. a 48-bit unique serial (read-only); kill/access passwords 64 bits in total (read/write) |

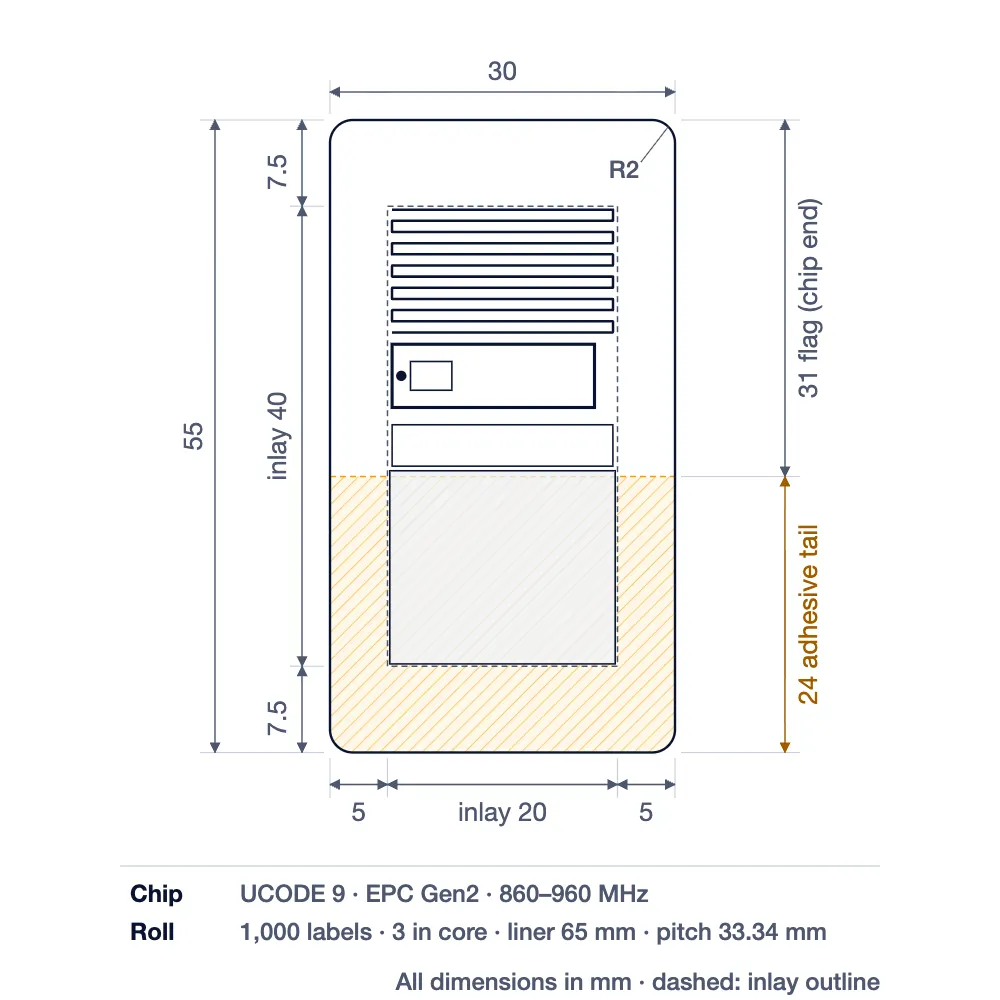

| Label size | 55 × 30 mm (±0.5 mm), 2 mm corner radiusSee this size at actual size → |

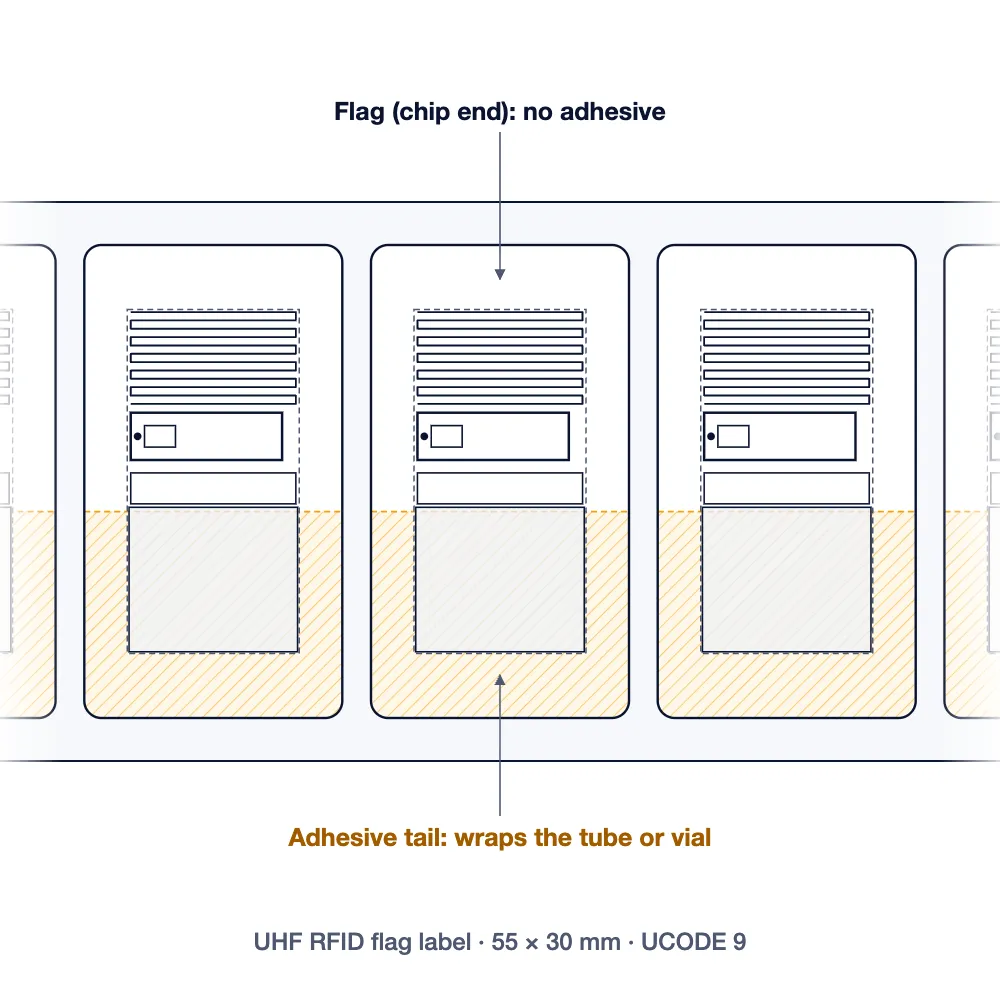

| Adhesive area | Lower 24 mm of the label; the upper 31 mm, carrying the chip, has no adhesive to the item |
| Inlay | 20 × 40 mm dry inlay; aluminium-etched antenna (9 µm) on 50 µm PET; part of the antenna lies in the adhesive tail |
| Construction | White PET face, adhesive, inlay (chip on an aluminium antenna), double-sided adhesive, 80 g release liner |
| Read range | Depends on the reader, antenna and item; request samples to test on your tubes |
| Chip endurance | 100,000 write cycles; 10-year data retention |
| ESD | 2 kV (HBM) |
| Application temperature | 10–40 °C, 20–80 % RH |
| Operating temperature | −20 to +50 °C, 20–80 % RH (after application) |
| Shelf life | 1 year from manufacture at 23 ± 5 °C and 50 ± 10 % RH, sealed, away from direct sunlight |
| Roll | 1,000 labels per roll; 3-inch (76.2 mm) core; roll diameter up to 135 mm |
| Liner | 65 mm wide; label pitch 33.34 mm; gap 3.34 mm |
| Packing | Vacuum-packed in ESD bags, 8 rolls per carton (actual quantity per shipping mark) |
Frequently asked questions
How do I write my own sample IDs to the labels?
What read range can I expect?
Can I use it in a −80 °C freezer?
Will it work with UHF readers in India?
How are the labels supplied, and what is the minimum order?
Related products
ID-2040-M800

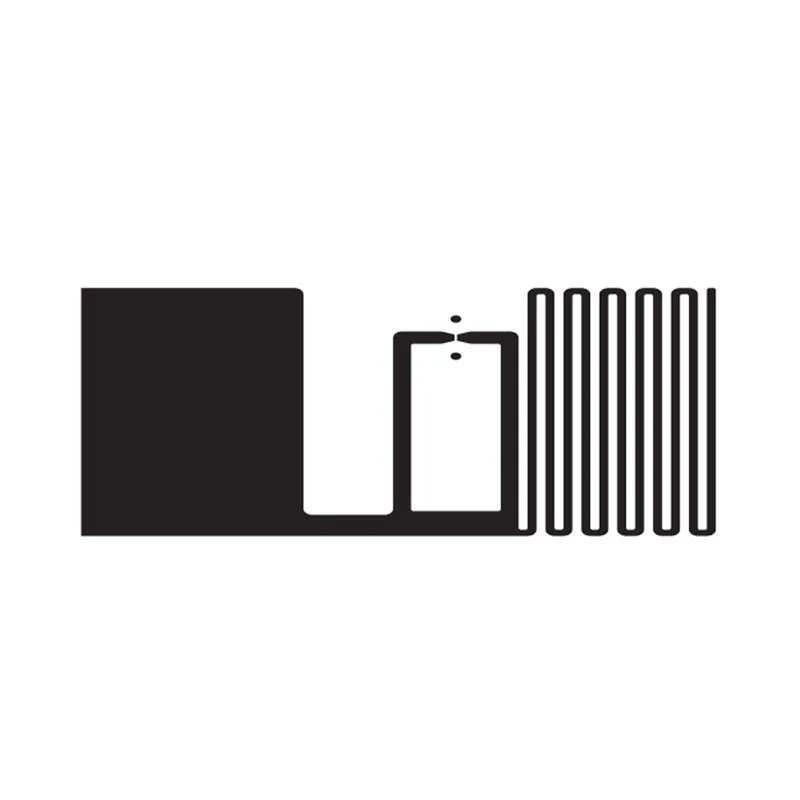

UHF RFID Flag Label, Inlay & Sticker ID-2040-M800 (Impinj M800/M700)
₹8 + GST
Min. order 500 pcs

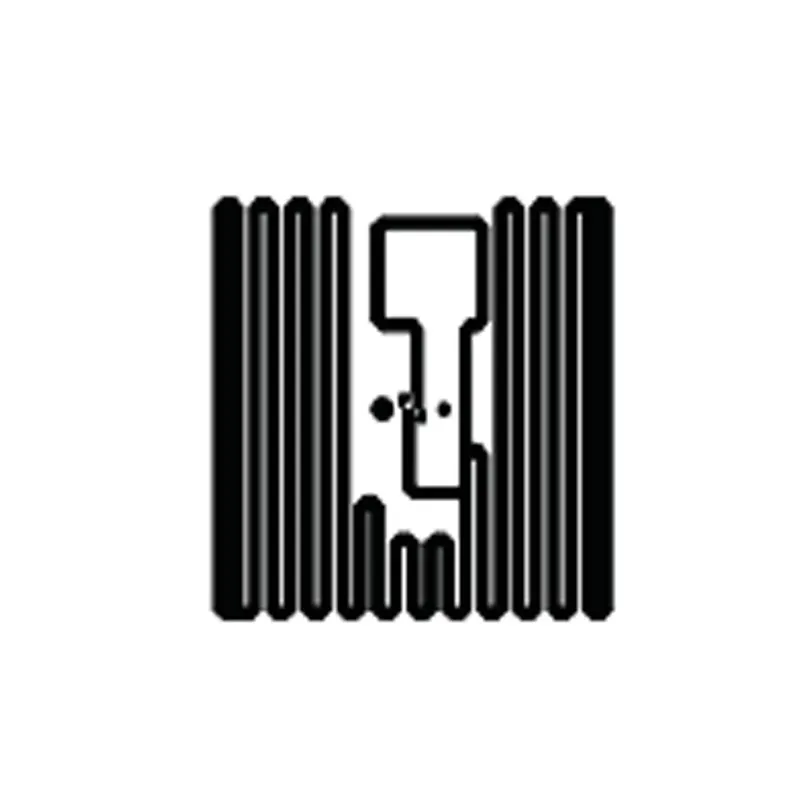

UHF RFID Healthcare Sticker 9629 H4
