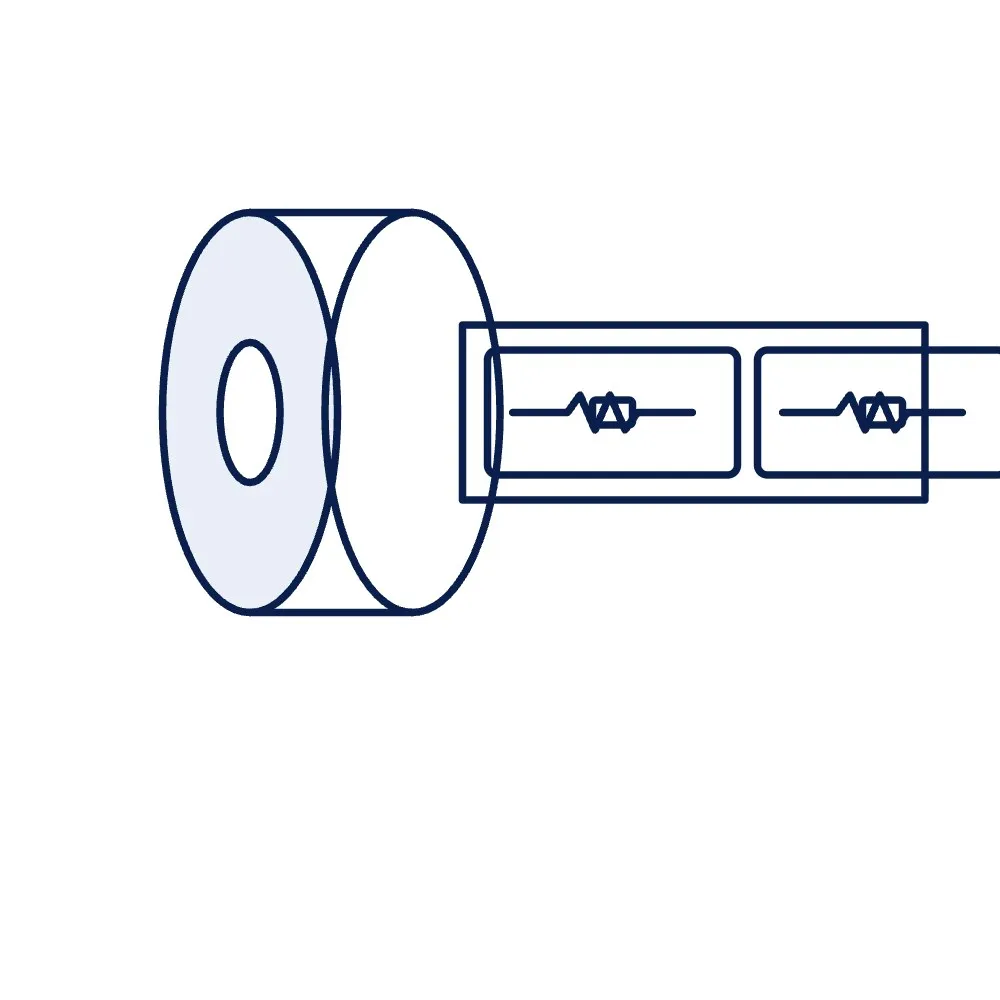

Blank UHF RFID Label Roll, 100 × 50 mm (4 × 2 in)
Blank, printable UHF RFID labels of 100 × 50 mm (4 × 2 in) on a roll for thermal-transfer RFID printers. The case, shelf and asset label size: wide enough for a barcode, a description and a logo, with a UHF inlay inside. Inlay and chip are confirmed at order.
Price on request
Min. order 500 piecesThe final price for your quantity is confirmed in the quote
- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
Key features
- 100 × 50 mm (4 × 2 in): case, shelf, bin and asset labels
- 865–868 MHz, ISO 18000-6C / EPC Gen2 inlay, confirmed at order
- Coated-paper face for thermal-transfer printing; permanent adhesive, typical for the class
- Roll on a 3-inch core, typical for the class; labels per roll confirmed at order
- Printed and encoded on 4-inch RFID printers such as the iX4R after calibration
- Frequency
- 865–868 MHz (India UHF band)
- Protocol
- ISO 18000-6C / EPC Gen2
- Inlay / chip
- UHF inlay sized for the label; chip confirmed at order
Overview
The general-purpose printable RFID label
At 100 × 50 mm the label has room for a barcode, a line of text and a logo, and it fits the side of a case, the edge of a shelf, a storage bin or an office asset. The UHF inlay inside gives each one an EPC that a handheld reader counts in bulk during a stock-take, or a fixed reader records at a doorway. Supplied blank on a roll, it is printed and encoded on a 4-inch RFID printer such as the iX4R with a wax-resin ribbon; for the IT4RL, we confirm the label width before quoting.
Choosing between the two roll sizes
Use this 100 × 50 mm roll where the label goes on cases, shelves and assets, and the 100 × 150 mm shipping roll where it doubles as the shipping label on a carton or pallet. Both carry an inlay chosen for the size and your reading distance, with the chip confirmed at order. Paper labels do not read on metal; for racking, tools and machines choose an on-metal label. Smaller UHF labels and inlays already listed with prices are under UHF labels and inlays.
Ordering
Minimum order 500 pcs, supplied as full rolls. Request a quote with the printer model, the surface the labels go on and the quantity. Pre-printed artwork, serial numbers and other sizes are quoted on request.
Where to use the Blank UHF RFID Label Roll, 100 × 50 mm (4 × 2 in)
- Case and inner-pack labels
- Shelf and bin labels
- IT and office asset labels
- Document boxes and files
- Retail stock labels
Specifications
Datasheet (PDF)| Label size | 100 × 50 mm (4 × 2 in)See this size at actual size → |
|---|---|
| Frequency | 865–868 MHz (India UHF band) |
| Protocol | ISO 18000-6C / EPC Gen2 |
| Inlay / chip | UHF inlay sized for the label; chip confirmed at order |
| Face | Coated paper for thermal-transfer printing, typical for the class |
| Adhesive | Permanent acrylic, typical for the class |
| Core | 3 inch (76 mm), typical for the class |
| Labels per roll | Confirmed at order |
| Printing | Thermal-transfer RFID printers after label calibration |
Frequently asked questions
Will a 100 × 50 mm label read through a stack of cases?
Can the label be printed with our logo in colour?
What is the minimum order?
Related products

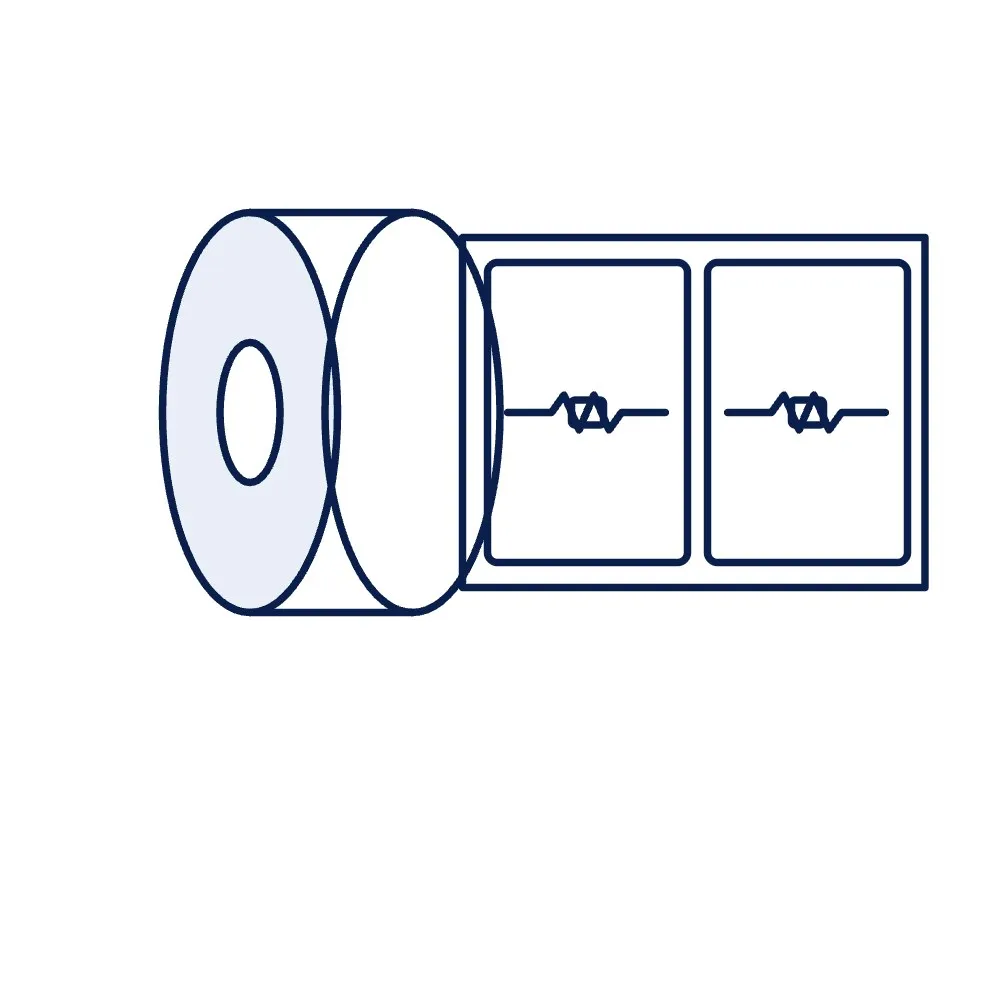

Blank UHF RFID Label Roll, 100 × 150 mm (4 × 6 in), Shipping Size
