UHF RFID Wet Inlay ID-9640 (98 × 12 mm)
A 98 × 12 mm self-adhesive UHF RFID wet inlay with the H3 chip, supplied on glassine-liner rolls. For label converters and for projects tagging library books, solar panels and assets in volume.
- Model:
- ID-9640
- Brand:
- Identium
- Chip:
- H3 (Higgs-3)
- Frequency:
- 840–960 MHz (covers India's 865–868 MHz band)
- Read range:
- Up to 6 m (depending on reader antenna and environment)
- Datasheet:
- PDF · 176 KB
- Listing updated:
₹8
per piece + 18% GST
Min. order 500 piecesThe final price for your quantity is confirmed in the quote
- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request a sample of this label
Sold by India RFID Store, the online catalogue of Identium Tech Solutions Pvt Ltd, an RFID manufacturer in New Delhi, India, in business since 2010.
Key features
- Long, slim 98 × 12 mm antenna format
- H3 (Higgs-3) chip with 512 bits of memory
- Self-adhesive wet inlay on a glassine liner
- Reads up to 6 m, depending on reader antenna and environment

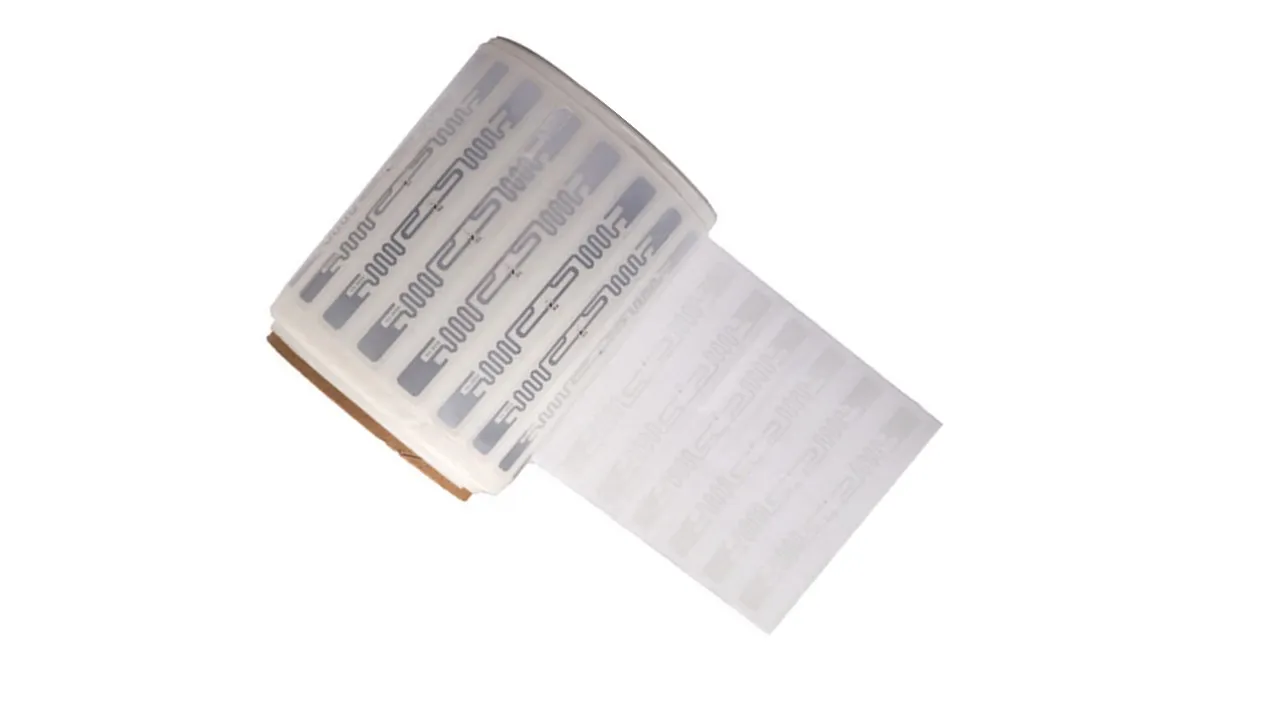

- Rolls of 5,000; 1,000 and 2,000 piece rolls also available
- Flexible substrate for flat and gently curved surfaces
Overview
What the ID-9640 UHF RFID wet inlay is
A wet inlay is the RFID chip and antenna on a thin film with adhesive on the back and a release liner, but no printed face. You can stick it straight onto an item or a carton, or have a label converter laminate it under a printed paper or synthetic face. The ID-9640 combines a long 98 × 12 mm antenna with the H3 chip and 512 bits of memory.
Where the 98 × 12 mm format fits
- Library books: the narrow strip fits inside the back cover close to the spine, where it is out of the reader's way. See the library RFID guide for reader set-up.
- Solar panels: the same inlay is used for module tracking; for a printed, roll-fed paper version see the UHF RFID Solar Panel Tag.
- Assets and wine: the flexible film follows gently curved surfaces such as plastic housings, cabinets and the shoulder of a bottle.
Working with wet inlay rolls
Standard rolls hold 5,000 inlays on glassine liner, which suits hand application and converting lines; 1,000 and 2,000 piece rolls help with pilots. Encode with a UHF desktop reader, or with an RFID printer once the inlay is inside a label. A standard inlay detunes on bare metal, so use an on-metal RFID tag for steel assets.
Where the ID-9640 is used
- Library book tagging
- Solar panel tracking
- Asset management
- Wine bottle labels
- RFID label converting
Specifications
Datasheet (PDF)| Chip | H3 (Higgs-3) |
|---|---|
| Memory | 512 bits |
| Frequency | 840–960 MHz (covers India's 865–868 MHz band) |
| Read range | Up to 6 m (depending on reader antenna and environment) |
| Size | 98 × 12 mmSee this size at actual size → |
| Type | Wet inlay (adhesive-backed, no printed face) |
| Liner | Glassine |
| Operating temperature | −20 to +80 °C |
| Material | Flexible thin substrate, RoHS-compliant materials (maker's declaration) |
| Packaging | 5,000 pcs per roll (1,000 and 2,000 pcs rolls available) |
Frequently asked questions
What is the difference between a wet inlay and an RFID label?
Which chip and memory does the ID-9640 use?
What read range can I expect?
Does it work on India's UHF band?
How is the ID-9640 packed?
