UHF RFID Solar Tags
A 98 × 12 mm printed UHF RFID paper label supplied on rolls, made for solar module makers and plant installers who laminate a tag onto each panel so it can be identified through installation and maintenance.
- Model:
- ID-9640
- Brand:
- Identium
- Frequency:
- 860–960 MHz (covers India's 865–868 MHz band)
- Read range:
- Up to 6 m typical; rated 0–10 m, depending on reader, antenna and mounting
- Datasheet:
- PDF · 172 KB
- Listing updated:
₹8
per piece + 18% GST
Min. order 500 piecesThe final price for your quantity is confirmed in the quote
- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request a sample of this label
Sold by India RFID Store, the online catalogue of Identium Tech Solutions Pvt Ltd, an RFID manufacturer in New Delhi, India, in business since 2010.
Key features
- 98 × 12 mm UHF label supplied on rolls for module lines
- Made to be laminated onto the solar panel for long life
- Reads up to 6 m in typical use; rated 0–10 m
- 860–960 MHz, readable on India's 865–868 MHz UHF band
- Operating temperature −20 to +80 °C
- Printed paper face on a thin, flexible substrate
Overview
UHF RFID solar panel tag for module-level tracking

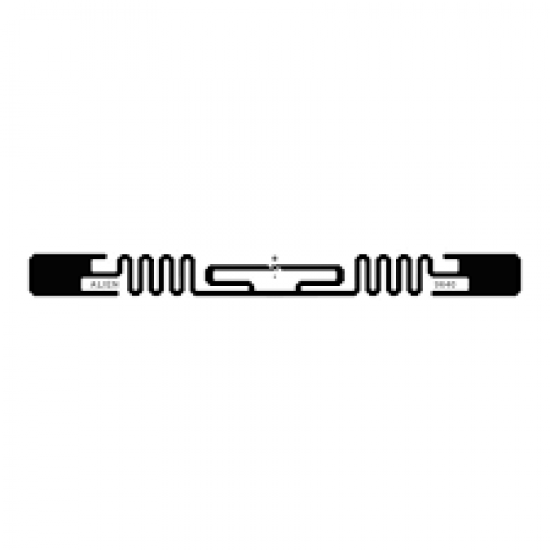

This is the ID-9640 UHF inlay converted into a 98 × 12 mm printed paper label and supplied on rolls for solar work. Each label gives a module its own readable identity, so a panel can be counted, traced and matched to its records from the production line to the plant.
As a paper label its expected life is about two years in normal operating conditions. A solar module stays outdoors for decades, so the tag is meant to be laminated onto the panel rather than left exposed on the frame.
Planning the tag position
Agree the position with your module design team before the first batch. Keep the tag away from the aluminium frame and the junction box where possible, since metal close to a UHF antenna cuts read range. Run a few laminated samples through your process and read them before committing a full roll.
Reading tagged panels in the field
With a UHF handheld a technician can read panels from the walkway, typically up to 6 m depending on the reader, antenna and mounting. Each read returns the tag's number, which your asset software links to the module serial, rating and installed location. The solar module RFID guide explains what to store against each panel. For a narrower 8 × 94 mm strip, compare the RFID Solar Panel Tag 0894-U9.
Where the ID-9640 is used
- Solar module serialisation
- Solar plant asset registers
- Panel maintenance audits
- Module service records
Specifications
Datasheet (PDF)| Frequency | 860–960 MHz (covers India's 865–868 MHz band) |
|---|---|
| Read range | Up to 6 m typical; rated 0–10 m, depending on reader, antenna and mounting |
| Size | 98 × 12 mmSee this size at actual size → |
| Material | Paper face, printed; RoHS-compliant materials |
| Packaging | Roll |
| Operating temperature | −20 to +80 °C |
| Storage | 2 years at +20 °C / 50% RH |
| Expected lifetime | 2 years in normal operating conditions; laminate onto the panel for long-term use |
| Compatible with | Standard UHF RFID readers and printers |
