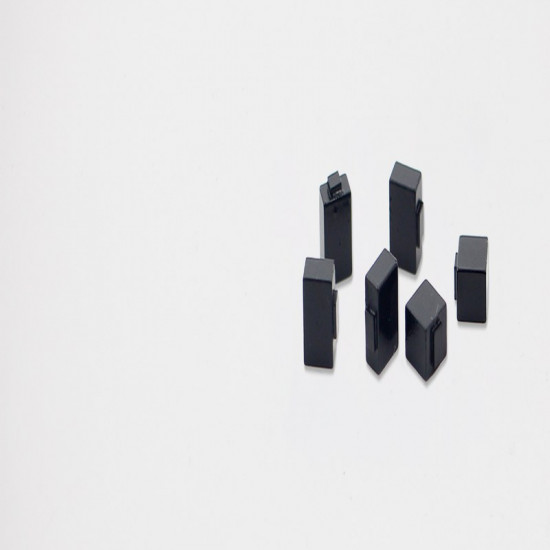

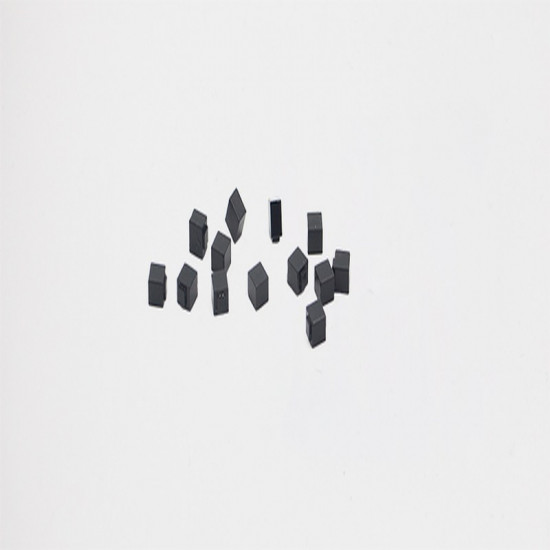

ID-C6012 Ultra-Miniature Ceramic UHF RFID On-Metal Tag (4 x 4 x 3 mm)
The ID-C6012 is an ultra-compact ceramic UHF RFID tag engineered for direct-on-metal mounting and harsh-environment asset tracking. At just 4 x 4 x 3 mm, it is one of the smallest ceramic RFID tags available, making it ideal for tracking surgical instruments, small metallic tools, bearings, auto spare parts, and weapon components where space is extremely limited.
Built on a robust ceramic substrate, the ID-C6012 is fully biocompatible and has been validated to survive repeated autoclave sterilisation cycles (up to 250 °C), aggressive industrial chemical washes, and extreme temperature fluctuations. It carries FDA compliance and ATEX certification, qualifying it for use in regulated healthcare and explosive-atmosphere industrial environments.
Key Features
- Miniature form factor: 4 x 4 x 3 mm — ideal for tiny metallic items
- Ceramic construction — survives autoclave up to 250 °C and chemical sterilisation
- IP68 rated — fully protected against dust and continuous water immersion
- Biocompatible material — safe for medical and surgical applications
- ATEX certified — suitable for explosive or hazardous industrial environments
- FDA compliant — meets requirements for medical device and instrument tracking
- Works directly on-metal surface or can be embedded/epoxy-bonded
- EPC C1G2 (ISO 18000-6C) standard — compatible with all UHF RFID readers
- Alien Higgs 3 chip: 512-bit user memory, 96-bit EPC, 32-bit TID
- Read range up to 1.7 m on metal (ETSI) with fixed readers
- Data retention > 10 years; re-write endurance: 100,000 cycles
- Humidity tolerance: 98% non-condensing
Technical Specifications
| Parameter | Value |
| Model | ID-C6012 |
| Dimensions (L x H x W) | 4 x 4 x 3 mm |
| Material | Ceramic |
| Color | Black |
| Weight | 0.3 g |
| IP Rating | IP68 |
| Operating Temperature | -40 °C to +85 °C |
| Survival Temperature | -40 °C to +250 °C (autoclave ready) |
| Humidity | 98% non-condensing |
| RFID Standard | EPC Class 1 Gen 2 (ISO 18000-6C) |
| Chip | Alien Higgs 3 |
| Memory | User: 512 bits | EPC: 96 bits | TID: 32 bits |
| Read Range (Fixed Reader, FCC) | Up to 1.6 m (on metal) |
| Read Range (Fixed Reader, ETSI) | Up to 1.7 m (on metal) |
| Data Retention | > 10 years |
| Re-write Cycles | 100,000 times |
| Installation Method | Epoxy bonding or embedded |
| Customisation | Logo printing, pre-encoding, custom design |
| Certifications | FDA, ATEX |
Applications
- Surgical instrument tracking — biocompatible, autoclave-safe, hospital-ready
- Small metallic tools tracking — embedded directly into tool body
- Bearing and auto spare parts management — survives oils, solvents and high temperatures
- Weapon and defence asset control — tamper-evident, durable on metal surfaces
- Industrial asset management — ATEX certified for hazardous environments
- Healthcare consumables tracking — reduces manual records, prevents loss
- Warehouse and inventory automation — fast batch scanning without line-of-sight
Contact us for volume pricing, custom encoding, or OEM design assistance.
- Stock: In Stock
- Model: ID-C6012
- SKU: ID-C6012
