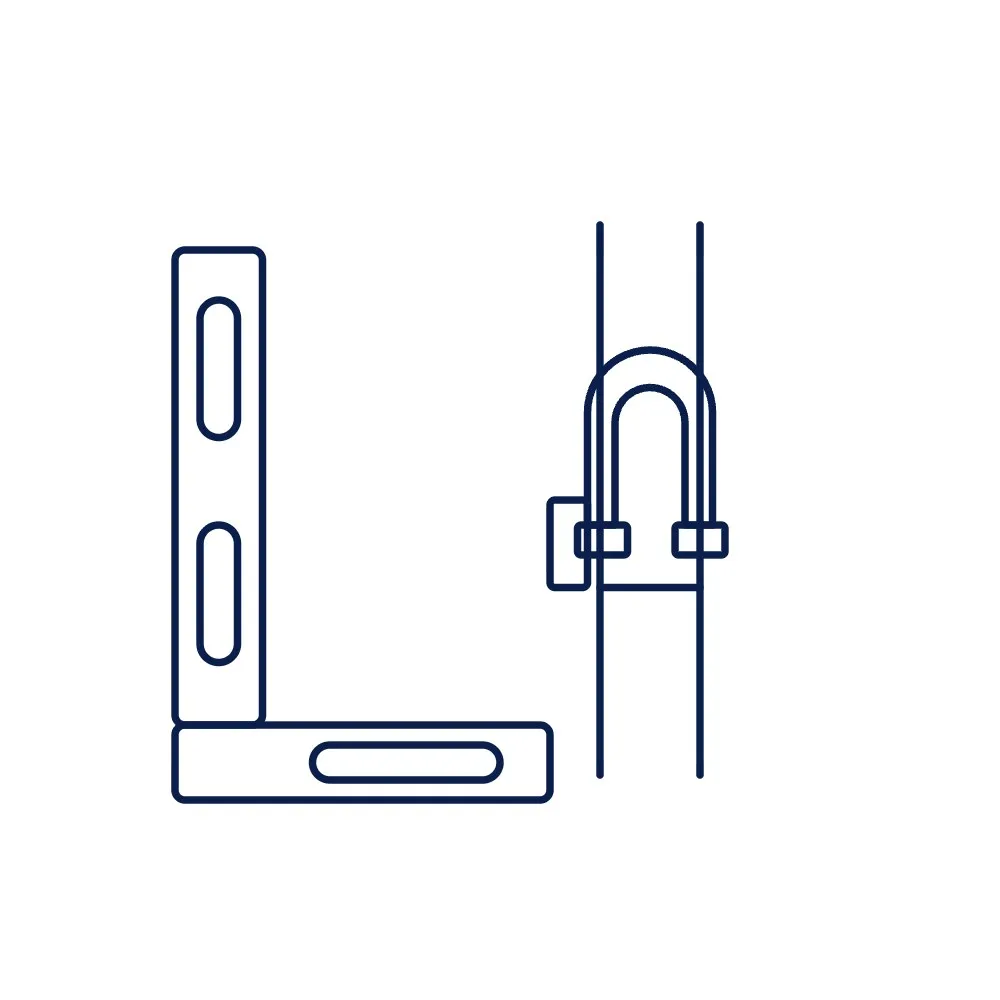

Wall / Pole Mounting Bracket for Integrated RFID Readers (IF9A-Size)
A steel bracket for mounting an integrated UHF reader, the type with the antenna built into the housing, on a wall, a gantry or a pole beside a vehicle lane. Sized for the IF9A and IF9C family; the tilt is set at installation and locked.
Price on request
Min. order 1 pieceThe final price for your quantity is confirmed in the quote
- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
Key features
- Wall screws or pole U-bolts; state the surface and pole diameter
- Suits IF9A and IF9C-size integrated readers (confirmed against the reader model)
- Tilt set once at installation and locked
- Steel, powder-coated, typical for the class
- Keeps the reader's face aimed at the lane or doorway
Overview
Mounting an integrated reader
An integrated reader such as the IF9A, its 4G version or the IF9C combines the reader and a 9 dBi antenna in one housing, so the whole unit has to be aimed at the read zone, usually a vehicle lane with windshield tags or a doorway. This bracket fixes the housing to a wall or a pole and holds the tilt you set at installation.
Wall or pole
On a wall or gantry the bracket screws to the surface; on a pole it clamps with U-bolts sized to the pole diameter you give us. The IF9C page lists a universal pipe clamp or L bracket with M6 bolts as its mounting; for the IF9A and other integrated readers we confirm the bolt pattern against the housing before quoting. Mount the reader so its face looks slightly down the lane, with the cable exit protected from rain, and keep the PoE injector or power adapter indoors.
Ordering
Request a quote with the reader model, the surface it mounts on and the pole diameter if any. Antenna brackets for separate panel antennas are a different part, the articulating antenna bracket; both are listed under RFID accessories.
Where to use the Wall / Pole Mounting Bracket for Integrated RFID Readers (IF9A-Size)
- Boom-barrier and parking lanes
- Gate and doorway readers
- Gantries
- Factory entrances
Specifications
Datasheet (PDF)| Material | Steel, powder-coated, typical for the class |
|---|---|
| Mounting | Wall screws, or pole U-bolts (state the pole diameter) |
| Suitable for | IF9A and IF9C-size integrated readers; other models confirmed at quotation |
| Adjustment | Tilt, set and locked at installation |
| Hardware | Bolts and U-bolts supplied to suit the reader and pole |
