UHF RFID Pipe Tag IDTS-D29 (29 mm Disc, Stainless Steel Clamp)

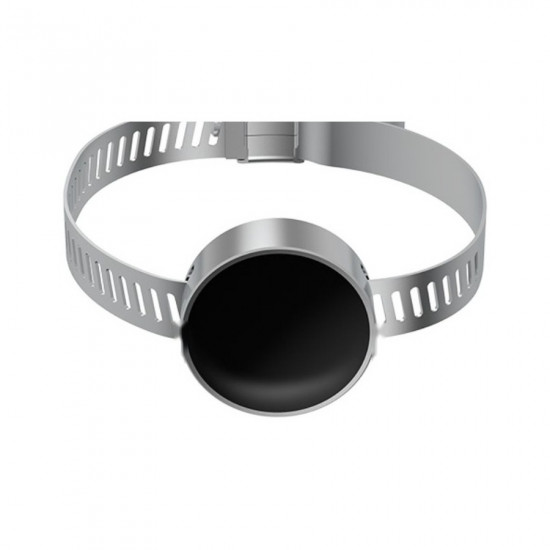

A 29 mm UHF RFID disc tag supplied on an adjustable stainless steel worm-drive band clamp, so it wraps around a pipe without drilling or adhesive. For tagging process lines, utility pipework and other round assets.
₹89
per piece + 18% GST
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 181 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request a sample of this tag
Key features
- Supplied fitted on an adjustable stainless steel worm-drive clamp
- No drilling, welding or adhesive needed on the pipe
- Rated for −40 °C to +200 °C
- NXP UCODE 8 on ISO 18000-6C with 128-bit EPC and 96-bit TID
- Metal alloy, PCB and epoxy disc, 29 mm across and 10 mm thick
- Approx. 2 m read range for walk-up reads on inspection rounds
- Frequency
- 860–960 MHz (covers India’s 865–868 MHz band)
- Protocol
- ISO 18000-6C
- Chip
- NXP UCODE 8
- Read range
- Approx. 2 m (depends on reader/writer performance)
Overview
How the IDTS-D29 UHF RFID pipe tag fits
Pipes are awkward to tag: labels peel off curved, hot or painted surfaces, and drilling a live line is rarely allowed. The IDTS-D29 solves this mechanically. The 29 mm disc comes already mounted on a stainless steel worm-drive band clamp, so a fitter wraps the band around the pipe and tightens it with a screwdriver. If the line is re-routed, loosen the clamp and move the tag.
Built for hot and outdoor lines
The disc is a metal alloy body with a PCB antenna under a black epoxy face, rated from −40 °C to +200 °C. That covers steam and thermal-oil circuits running within that limit, as well as outdoor utility pipework and chilled-water runs.
Read range and readers
The rated read distance is about 2 m, depending on reader performance, so this tag is meant for walk-up reads during inspection rounds rather than reads from across the plant. A UHF handheld reader held near the pipe is the usual workflow. The NXP UCODE 8 chip stores your line, spool or section number in its 128-bit EPC bank, and the 96-bit TID is a fixed factory ID your maintenance software can verify.
Before you order
The clamp is adjustable, but its diameter range is not listed, so send your pipe outside diameters with your quote request. Other rugged PCB disc and bar tags, including screw-mount formats, are listed under RFID PCB and ceramic tags, and our fixed asset audit guide explains how tagged plant is audited.
Typical applications
- Process piping
- Steam and hot-water lines
- Utility pipework
- Fire hydrant lines
- HVAC chilled-water pipes
- Cylinder manifolds

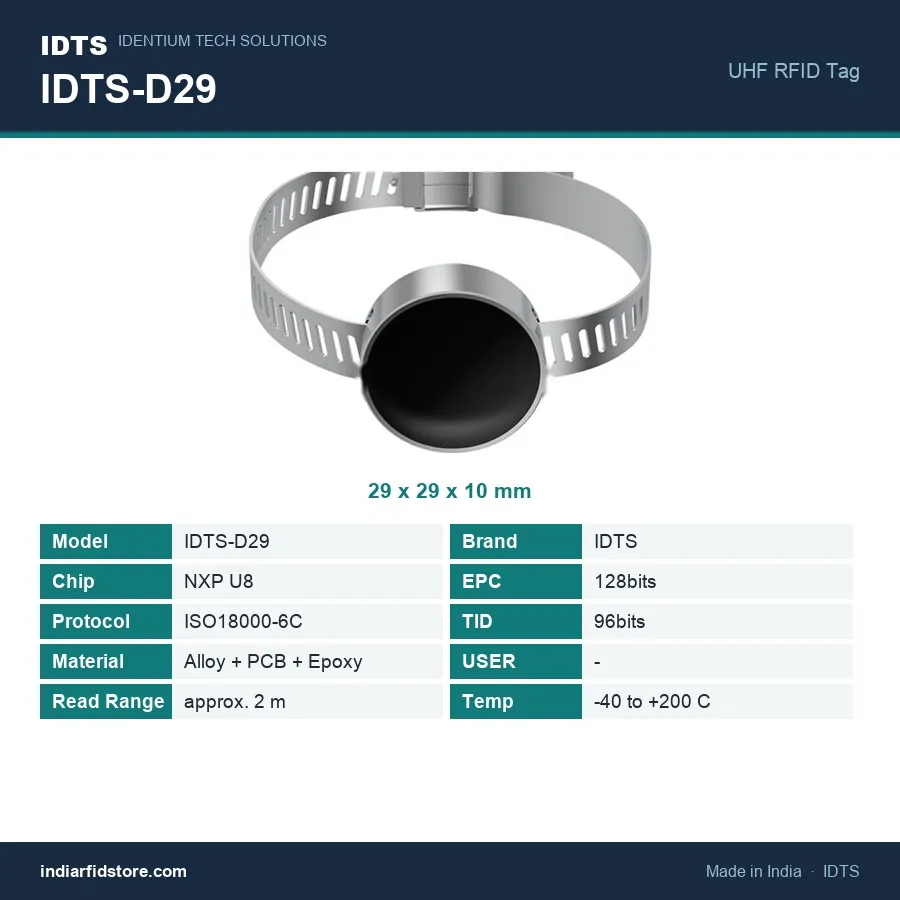

Specifications
Datasheet (PDF)| Frequency | 860–960 MHz (covers India’s 865–868 MHz band) |
|---|---|
| Protocol | ISO 18000-6C |
| Chip | NXP UCODE 8 |
| Memory | EPC 128 bits, TID 96 bits |
| Read range | Approx. 2 m (depends on reader/writer performance) |
| Material | Metal alloy + PCB + epoxy resin |
| Dimensions | Ø 29 mm × 10 mm (disc) |
| Mounting | Adjustable stainless steel worm-drive band clamp, supplied fitted; no mounting holes |
| Operating temperature | −40 °C to +200 °C |
| Colour | Black epoxy face on a silver metal disc; stainless steel clamp |
