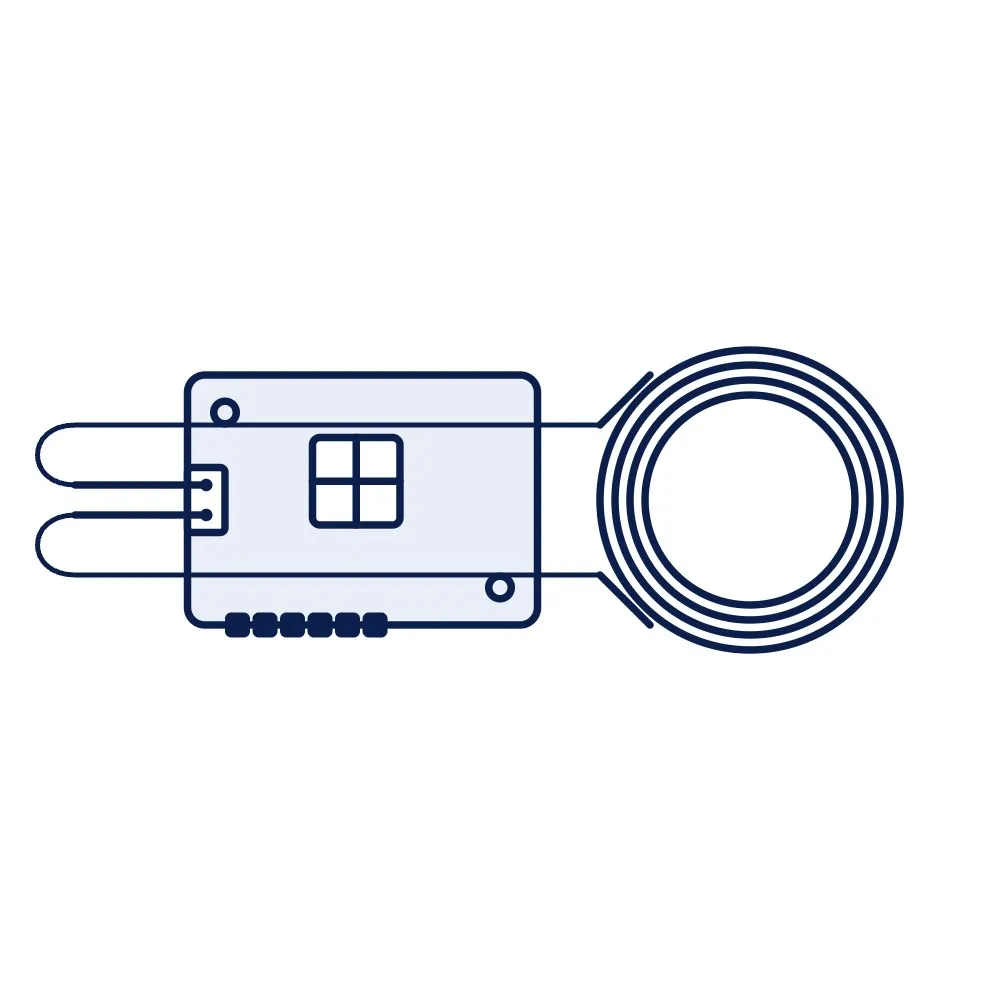

125 kHz RFID Reader Module, UART (EM4100-Format Tags)
A 125 kHz reader module that outputs the ID of an EM4100-format card, fob or token over a serial UART line, for prototyping attendance, door and asset readers on microcontroller boards. The low-frequency counterpart of the RC522: it reads our 125 kHz cards and tokens, not 13.56 MHz or UHF.
Price on request
Min. order 1 pieceThe final price for your quantity is confirmed in the quote
- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
Key features
- Reads EM4100-format 125 kHz tags: the 64-bit read-only ID used by most LF cards and fobs
- Serial UART (TTL) output, 9600 baud, typical for the class
- 5 V supply, typical for the class
- On-board or external coil antenna, as sourced
- Reads our 125 kHz cards, LF tokens and key fobs at a few centimetres
- Frequency
- 125 kHz (LF)
- Read range
- A few centimetres, typical for the class; depends on the tag
Overview
The simplest reader there is
Hold an EM4100-format card to the coil and the module sends its ID down a serial line as a short string of characters; the microcontroller reads the string and decides what to do. There is nothing to configure. That is why 125 kHz modules are the usual choice for a first attendance, door or locker prototype, and for teaching how a reader talks to a controller. The RC522 and PN532 modules are the 13.56 MHz equivalents.
Which tags it reads
Most low-frequency cards and fobs use the EM4100 format: our 125 kHz cards, LF tokens and LF key fobs, and a T5577 card programmed to that format. It does not read 13.56 MHz cards, UHF tags or the 134.2 kHz FDX-B tags used for animals, which need the RA91 reader. Read range is a few centimetres, typical for the class, and depends on the coil and the tag.
From prototype to product
For a finished installation use a housed reader such as the 125 kHz USB desktop reader or the card attendance terminal, which come ready to connect. Modules are quoted from one unit: request a quote. All our HF, NFC and LF card readers are listed together.
Where to use the 125 kHz RFID Reader Module, UART (EM4100-Format Tags)
- Attendance and door prototypes
- Maker and student projects
- Replacement reader in LF systems
- Teaching labs
- Asset-cabinet prototypes
Specifications
Datasheet (PDF)| Frequency | 125 kHz (LF) |
|---|---|
| Tag format | EM4100 / EM4102-type: 64-bit read-only ID, per the public definition |
| Output | UART serial (TTL), 9600 baud, typical for the class; Wiegand on some boards, as sourced |
| Supply | 5 V DC, typical for the class |
| Antenna | On-board coil or external coil, as sourced |
| Read range | A few centimetres, typical for the class; depends on the tag |
| Does not read | 13.56 MHz cards, UHF tags, 134.2 kHz FDX-B animal tags |
| Supplied | Module only unless stated |
Frequently asked questions
Can I build a finished product around this module?
Development modules are sold for prototyping. Ask us before you build a commercial product around one.
Can it read 13.56 MHz or FASTag?
No. It reads 125 kHz EM4100-format tags only. 13.56 MHz cards need the RC522 or PN532 module, and UHF tags such as FASTag need a UHF reader or the UHF development module.
What does the module send over the serial line?
The tag's ID as a short string of characters at 9600 baud, typical for the class, each time a tag is presented; the exact framing (start and stop characters, checksum) is given in the board's documentation. Your code reads the line and matches the ID against its list.
Buying guides
Related products
LF RFID Token (125 kHz, 30 mm ABS, EM4100 / T5577)
₹25 + GST
Min. order 500 pcs_Z2pmmIT.webp)
LF RFID Keyfob Tag (53 × 37 mm, IP67)
₹20 + GST
Min. order 500 pcs
LF RFID USB Desktop Reader IDTS-LFPPR (125 kHz)
₹1,500 + GST
Per piece

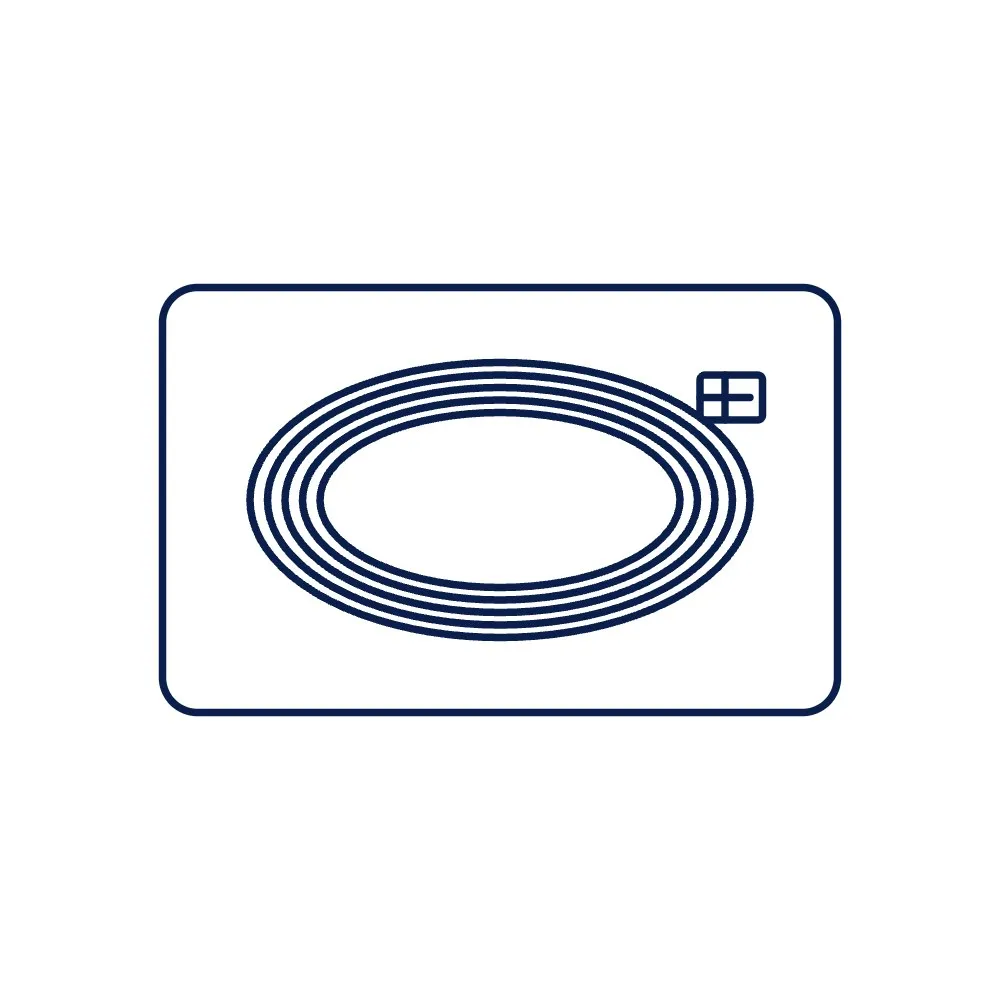

T5577 Rewritable 125 kHz RFID Card (CR80, PVC)
Price on request
Min. order 500 pcs

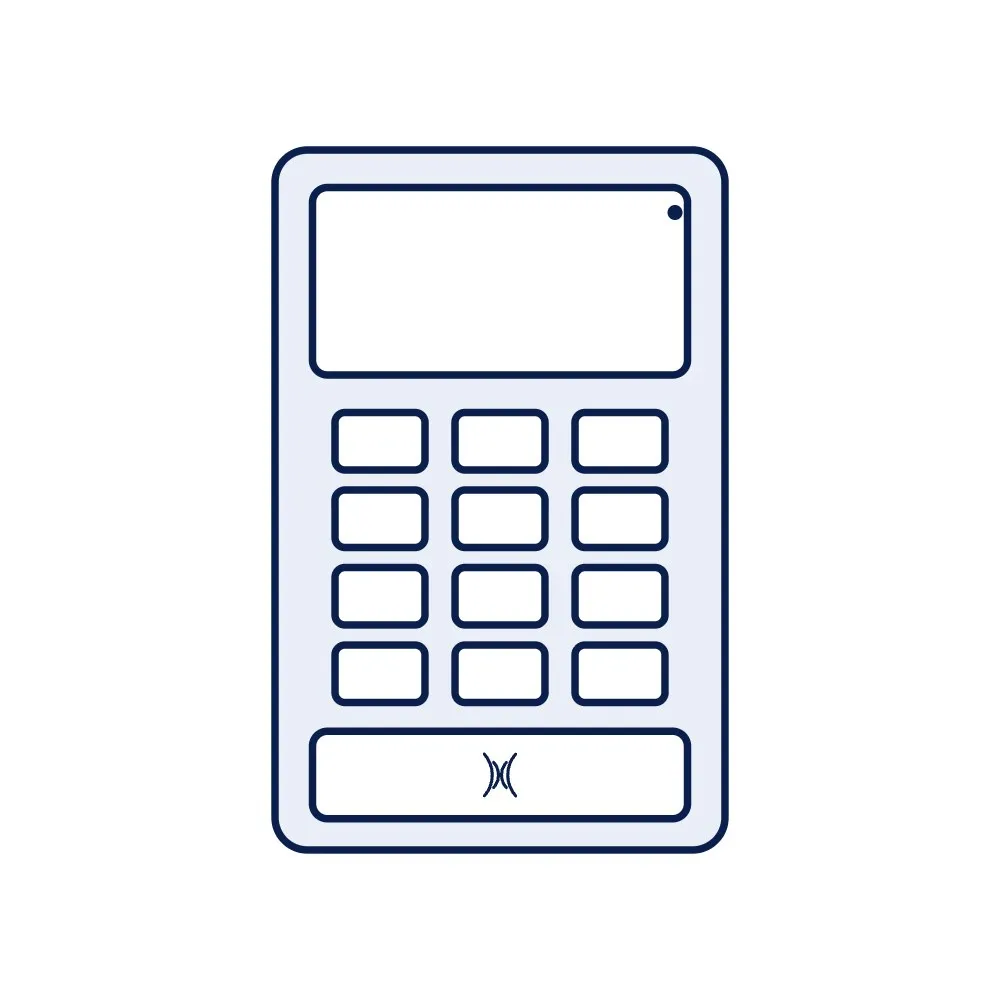

RFID Card Attendance Terminal, 125 kHz / 13.56 MHz, TCP/IP + Wi-Fi
