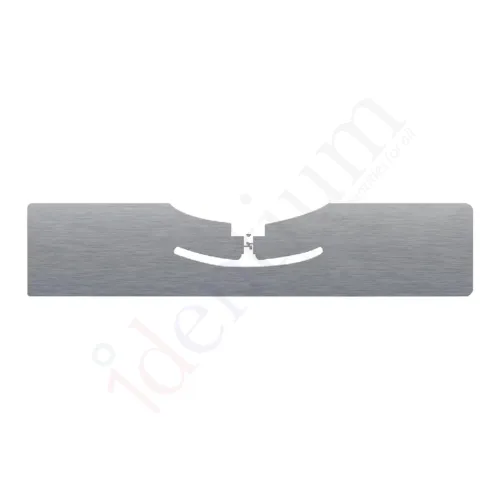

UHF ALN-9654 Wet Inlay
Alien's ALN-9654 UHF RFID inlay in wet, self-adhesive form: 96.5 × 23.2 mm, Higgs-3 chip, 512 bits of user memory. Supplied in high-count rolls for label converters and asset or tool tracking projects.
- Model:
- ALN-9654
- Brand:
- Identium
- Chip:
- Alien Higgs-3
- Protocol:
- EPC Gen 2 (v1.2.0), ISO/IEC 18000-6C
- Frequency:
- 840–960 MHz (covers India's 865–868 MHz band)
- Read range:
- Up to 20 ft (about 6 m)
- Datasheet:
- PDF · 175 KB
- Listing updated:
₹15
per piece + 18% GST
Min. order 500 piecesThe final price for your quantity is confirmed in the quote
- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request a sample of this label
Sold by India RFID Store, the online catalogue of Identium Tech Solutions Pvt Ltd, an RFID manufacturer in New Delhi, India, in business since 2010.
Key features
- Higgs-3 IC: 96-bit EPC (extensible to 480 bits), 512-bit user memory
- Unique, unalterable 64-bit serial number for authentication
- User memory can be perma-locked or read-password protected
- EPC Gen 2 v1.2.0 and ISO/IEC 18000-6C, 840–960 MHz
- Read distance up to 20 ft (about 6 m)
- About 12,500 inlays per roll on a fibreboard core
Overview
Alien ALN-9654 UHF wet inlay: what you get
The ALN-9654 is Alien's 96.5 × 23.2 mm UHF inlay, supplied here as a wet inlay: adhesive on the back, on a release liner, without a printed face. It can go straight onto a carton or plastic asset, or into a converter's line to become a printed label or hang tag.
Why the Higgs-3 memory matters
Many low-cost inlays carry little more than an EPC number. The Higgs-3 chip adds 512 bits of user memory that can be perma-locked or protected by a read password in 64-bit blocks, so a part number, owner code or calibration date can travel on the tag itself. The factory-programmed 64-bit serial cannot be changed, which helps tell a genuine tag from a copied one.
The chip supports all mandatory and optional Gen 2 commands, plus custom commands for high-speed programming on encoding lines.
Using it for asset and tool tracking
The wider 23.2 mm antenna suits asset labels, tool crates and returnable containers. Encode it with a UHF desktop reader, or with an RFID printer once it is converted into a label. Apply it above +25 °F. Like any standard inlay it will not read reliably on bare metal or against liquid, so use an on-metal RFID tag for steel tools and equipment. The fixed asset audit guide shows how tags, readers and software fit together.
Where the ALN-9654 is used
- Asset tracking
- Tool tracking
- RFID label converting
- Returnable container tags
Specifications
Datasheet (PDF)| Chip | Alien Higgs-3 |
|---|---|
| Protocol | EPC Gen 2 (v1.2.0), ISO/IEC 18000-6C |
| Frequency | 840–960 MHz (covers India's 865–868 MHz band) |
| Memory | 800 bits: EPC 96 bits (extensible to 480), User 512 bits, TID 32 bits + 64-bit unique TID, Access and Kill passwords 32 bits each |
| Read range | Up to 20 ft (about 6 m) |
| Size | 96.5 × 23.2 mm (3.799 × 0.913 in)See this size at actual size → |
| Type | Wet inlay (adhesive-backed) |
| Weight | Under 1 g |
| Operating temperature | −40 to +93.3 °C |
| Adhesive application temperature | Above +25 °F (about −4 °C) |
| Packaging | Roll, approx. 12,500 inlays (nominal), fibreboard core |
Frequently asked questions
What is the ALN-9654 wet inlay used for?
How much memory does the ALN-9654 have?
Does the ALN-9654 work on the Indian UHF band?
Will it read on metal or liquid-filled containers?
How is the ALN-9654 packed?
